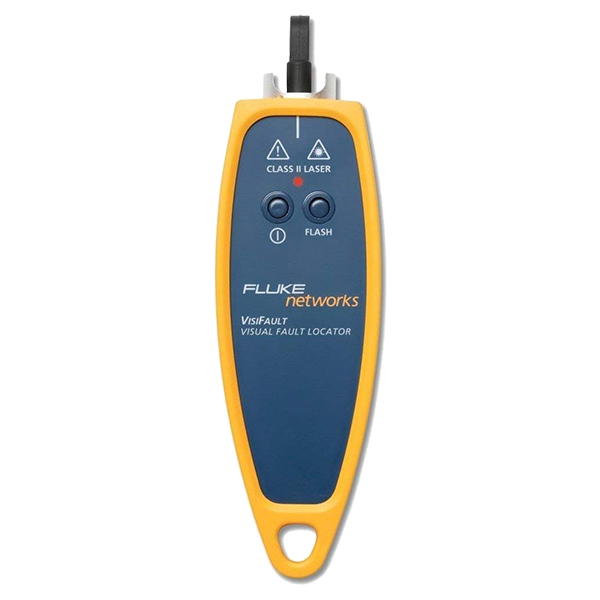

Fluke VisiFault™ Visual Fault Locator - Cable Continuity Tester
-
NG # 00215-HW-FLUKE-016
Manufactured by:
Fluke Networks' VisiFaultTM Visual Fault Locator (VFL). The laser-powered VisiFault Visual Fault Locator is a cable continuity tester that locates fibers, verifies cable continuity and polarity. This cable continuity tester helps find breaks in cables, connectors and splices
Specification
Fiber compatibility
Multimode and Singlemode
Wavelength
650 nm (visible wavelength)
Laser safety rating
Class II
Output power
< 1.3 mW
Output modes
Continuous (steady) and flashing (2-3Hz pulsed)
Range
3 km multimode, 4 km singlemode
Operating temperature
0 °C to 40 °C
Storage temperature
-20 °C to 60 °C
Relative humidity
95% (10 to 35 °C)
Vibration
Random, 2g, 5-500 Hz
Shock
1 m drop onto all corners and face
Altitude
3000 m
Safety
CSA C22.2 No. 1010.1 1992, EN 61010-1, CE
Carrying Case
Soft sided with belt loop
Description
Continuous and flashing modes make for easier identification. Compatible with 2.5mm and 1.25mm connectors for easy connection. Ruggedly constructed for demanding field-testing. This visual fault locator has a long battery life for hours of use.
