Overview

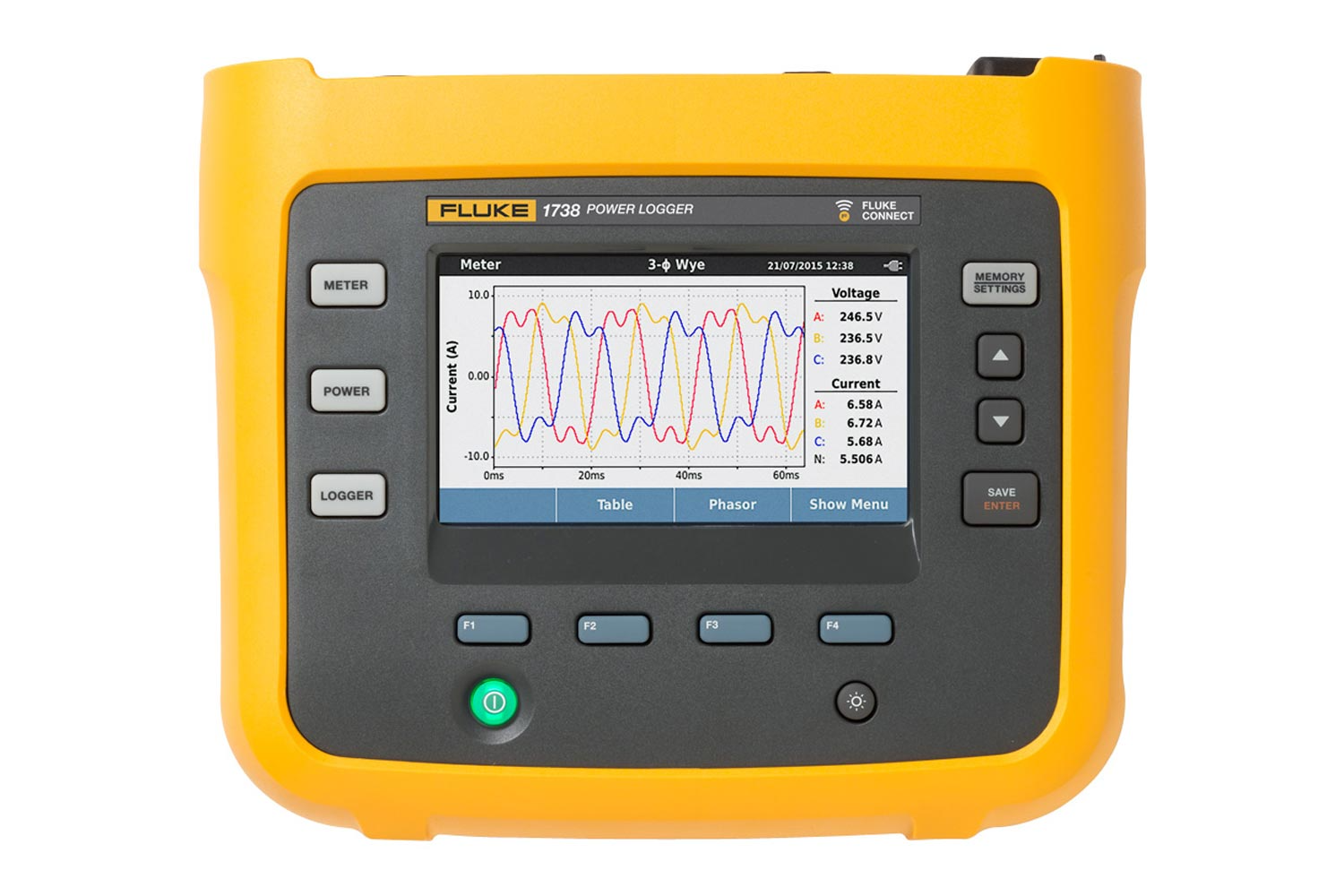

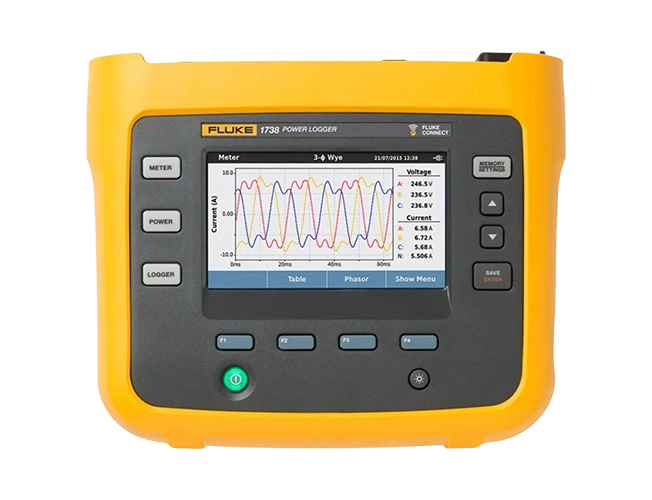

Conduct energy studies and power quality logging with this advanced three-phase power logger. Automatically capture and log over 500 power quality parameters with this logger, which provides you with more visibility into the data. Additionally, this unit is Fluke Connect compatible.
| Accuracy | |
| Voltage | Range: 1000 V Maximum resolution: 0.1 V Intrinsic accuracy at reference conditions (% of reading + % of full scale): ±(0.2% + 0.01%) |
| Frequency | Range: 42.5 to 69 Hz Maximum resolution: 0.01 Hz Intrinsic accuracy at reference conditions (% of reading + % of full scale): ±(0.1%) |
| Aux Input | Range: ±10 V dc Maximum resolution: 0.1 mV Intrinsic accuracy at reference conditions (% of reading + % of full scale): ±(0.2% + 0.02%) |
| Voltage Min/Max | Range: 1000 V Maximum resolution: 0.1 V Intrinsic accuracy at reference conditions (% of reading + % of full scale): ±(1% + 0.1%) |
| Current Min/Max | Range: Defined by accessory Maximum resolution: Defined by accessory Intrinsic accuracy at reference conditions (% of reading + % of full scale): ±(5% + 0.2%) |
| THD on Voltage | Range: 1000% Maximum resolution: 0.1% Intrinsic accuracy at reference conditions (% of reading + % of full scale): ±0.5 |
| THD on Current | Range: 1000% Maximum resolution: 0.1% Intrinsic accuracy at reference conditions (% of reading + % of full scale): ±0.5 |
| Voltage Harmonics 2nd ...50th | Range: 1000 V Maximum resolution: 0.1 V Intrinsic accuracy at reference conditions (% of reading + % of full scale): ≥10 V: ±5% of reading, <10 V: ±0.5 V |
| Current Harmonics 2nd ...50th | Range: Defined by accessory Maximum resolution: Defined by accessory Intrinsic accuracy at reference conditions (% of reading + % of full scale): ≥3% of current range: ±5% of reading, <3% of current range: ±0.15% of range |
| Unbalance | Range: 100% Maximum resolution: 0.1% Intrinsic accuracy at reference conditions (% of reading + % of full scale): ±0.2 |
| Power Supply | |
| Voltage Range | 100 to 500 V using safety plug input when powering from the measurement circuit 100 to 240 V using standard power cord (IEC 60320 C7) |
| Power Consumption | Maximum 50 VA (max. 15 VA when powered using IEC 60320 input) |
| Efficiency | ≥68.2% (in accordance with energy efficiency regulations) |
| Maximum No-Load Consumption | <0.3 W only when powered using IEC 60320 input |
| Mains Power Frequency | 50/60 Hz ± 15% |
| Battery | Li-ion 3.7 V, 9.25 Wh, customer-replaceable |
| On-Battery Runtime | Four hours in standard operating mode, up to 5.5 hours in power saving mode |
| Charging Time | <6 hours |
| Data Acquisition | |
| Resolution | 16-bit synchronous sampling |
| Sampling Frequency | 10.24 kHz at 50/60 Hz, synchronized to mains frequency |
| Input Signal Frequency | 50/60 Hz (42.5 to 69 Hz) |
| Circuit Types | 1-ø, 1-ø IT, split phase, 3-ø delta, 3-ø wye, 3-ø wye IT, 3-ø wye balanced, 3-ø Aron/Blondel (2-element delta), 3-ø delta open leg, currents only (load studies) |
| Data Storage | Internal flash memory (not user replaceable) |
| Memory Size | Typical 10 logging sessions of 8 weeks with 1-minute intervals and 500 events |
| Basic Interval | |
| Measured Parameters | Voltage, current, aux, frequency, THD V, THD A, power, power factor, fundamental power, DPF, energy |
| Averaging Interval | User selectable: 1 sec, 5 sec, 10 sec, 30 sec, 1 min, 5 min, 10 min, 15 min, 30 min |
| Averaging Time Min/Max Values | Voltage, Current: Full cycle RMS updated every half cycle (URMS1/2 according to IEC61000-4-30) Aux, Power: 200ms |
| Demand Interval (Energy Meter Mode) | |
| Measured Parameters | Energy (Wh, varh, VAh), PF, maximum demand, cost of energy |
| Interval | User selectable: 5 min, 10 min, 15 min, 20 min, 30 min, off |
| Power Quality Measurements | |
| Measured Parameter | Voltage, frequency, unbalance, voltage harmonics, THD V, current, harmonics, THD A, TDD |
| Averaging Interval | 10 min |
| Individual Harmonics | 2nd ...50th harmonic |
| Total Harmonic Distortion | Calculated on 50 harmonics |
| Events | Voltage: dips, swells, interruptions, current: inrush current |
| Triggered Recordings | Full cycle RMS updated every half cycle of voltage and current (Urms1/2 according to IEC61000-4-30) Waveform of voltage and current |
| Standards Compliance | |
| Harmonics | IEC 61000-4-7: Class 1 IEEE 519 (short time harmonics) |
| Power Quality | IEC 61000-4-30 Class S, IEC62586-1 (PQI-S device) |
| Power | IEEE 1459 |
| Power Quality Compliance | EN50160 (for measured parameters) |
| Interfaces | |
| USB-A | File transfer via USB flash drive, firmware updates, max. supply current: 120 mA |
| WiFi | File transfer and remote control via direct connection or WiFi infrastructure |
| Bluetooth | Read auxiliary measurement data from Fluke Connect® 3000 series modules (requires 1738, or 1736 upgrade option) |
| USB-Mini | Data download device to PC |
| Voltage Inputs | |
| Number of Inputs | 4 (3 phases and neutral) |
| Maximum Input Voltage | 1000 Vrms, CF 1.7 |
| Input Impedance | 10 MΩ |
| Bandwidth | 42.5 Hz to 3.5 kHz |
| Scaling | 1:1 and variable |
| Measurement Category | 1000 V CAT III/600 V CAT IV |
| Current Inputs | |
| Number of Inputs | 4, mode selected automatically for attached sensor |
| Input Voltage | Clamp input: 500/50 mVrms; CF 2.8 |
| Rogowski Coil Input | 150/15 mVrms at 50 Hz, 180/18 mVrms at 60 Hz; CF 4; all at nominal probe range |
| Range | 1 to 150/10 A to 1500 A with thin flexible current probe i17XX-flex1500 12" 3 to 300/30 A to 3000 A with thin flexible current probe i17XX-flex3000 24" 6 to 600/60 A to 6000 A with thin flexible current probe i17XX-flex6000 36" 40 mA to 4/0.4 A to 40 A with 40 A clamp i40s-EL |
| Bandwidth | 42.5 Hz to 3.5 kHz |
| Scaling | 1:1 and variable |
| Auxiliary Inputs | |
| Number of Inputs | 2 |
| Input Range | 0 to ±10 V dc, 1 reading/s |
| Scale Factor | Format: mx + b (gain and offset) user configurable |
| Displayed Units | User configurable (7 characters, for example, °C, psi, or m/s) |
| Wireless Connection | |
| Number of Inputs | 2 |
| Supported Modules | Fluke Connect® 3000 series |
| Acquisition | 1 reading/s |
| Environmental Specifications | |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | −4 to 140°F (-20 to 60°C) With battery: −4 to 122°F (-20 to 50°C) |
| Operating Humidity | 50 to 86°F (10 to 30°C) max. 95% RH 86 to 104°F (30 to 40°C) max. 75% RH 104 to 122°F (40 to 50°C) max. 45% RH |
| Operating Altitude | 6561.68' (2000 m) (up to 13123.36' (4000 m) derate to 1000 V CAT II/600 V CAT III/300 V CAT IV) |
| Storage Altitude | 39,370.079' (12,000 m) |
| Enclosure | IP50 in accordance with EN60529 |
| Vibration | MIL-T-28800E, Type 3, Class III, Style B |
| Safety | IEC 61010-1 IEC Mains Input: Overvoltage Category II, Pollution Degree 2 Voltage Terminals: Overvoltage Category IV, Pollution Degree 2 IEC 61010-2-031: CAT IV 600 V / CAT III 1000 V |
| Electromagnetic Compatibility (EMC) | EN 61326-1: Industrial CISPR 11: Group 1, Class A Korea (KCC): Class A Equipment (industrial broadcasting and communication equipment) USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103 |
| Temperature Coefficient | 0.1 x accuracy specification/°C |
| General Specifications | |
| Color LCD Display | 4.3" (109.22 mm) active matrix TFT, 480 pixels x 272 pixels, resistive touch panel |
| Tamper Protection | Kensington lock slot |
| Dimensions | Instrument: 7.8 x 6.6 x 2.2" (19.8 x 16.7 x 5.5 cm) Power supply: 5.1 x 5.1 x 1.8" (13.0 x 13.0 x 4.5 cm) Instrument with power supply attached: 7.8 x 6.6 x 3.5" (19.8 x 16.7 x 9 cm) |
| Weight | Instrument: 2.5 lb (1.1 kg) Power supply: 0.9 lb (400 g) |
Compatible with the Fluke Connect® mobile app and desktop software, this unit provides you the data required for you to make critical power quality and energy decisions in real-time. Ideal for conducting energy studies and basic power quality logging, this automatically captures and logs over 500 power quality parameters, giving you more visibility into the data you need to optimize system reliability and savings
