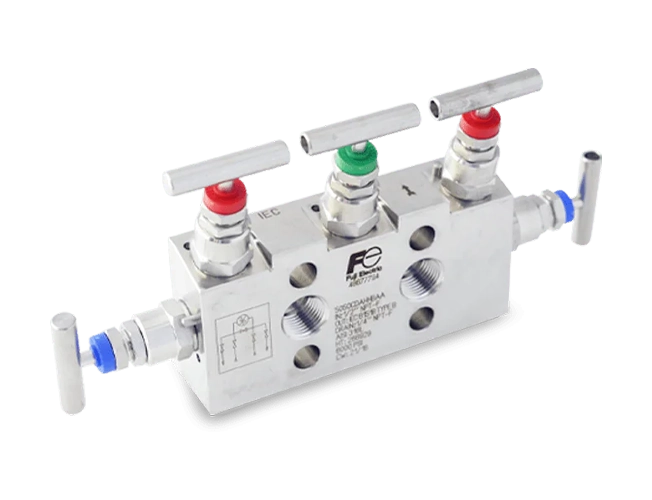

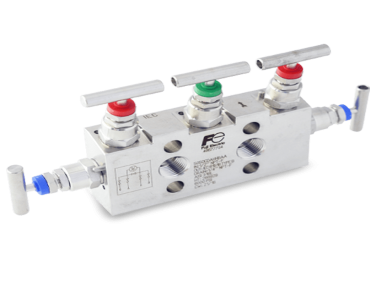

Fuji Electric 5-valves manifold for differential pressure transmitter
-
NG # 2467-HW-FUJI-004
Manufactured by:
Specification
Isolation, pressure compensation, bleed and vent valves for differential pressure measuring instruments For aggressive gaseous and liquid media that are not highly viscous or crystallizing, even in aggressive environmentsPressure 414 bar (6000 Psi) Material 316 L STAINLESS STEEL Waterproofing PTFE Connection Input - 1/2" NPT female Connection Direct mounting Miscellaneous M10/Ø12 mounting holes Applications Special features Low-wear design thanks to non-rotating spindle end in valve bonnet
Low torque and smooth operation of the valve handle, even at high pressure
Enhanced safety thanks to anti-ejection design of the valve bonnet
Combination of valve and hook-up on request
Standardized 54 mm center distances, suitable for
for commonly used process transmitters
Description
Compared to the 3-valves version, the 5-valves manifold incorporates two additional valves dedicated to venting. Each pressure channel has a specific valve, enabling operators to select venting of one or both pressure sides of the measuring device.
The design with a fixed stem that does not rotate reduces wear on sealing components, thus prolonging service life, particularly during repeated opening and closing. What's more, the valve's anti-ejection configuration enhances operating safety, making it particularly well-suited to high-pressure environments.
The 5-valves manifold offers a complete solution for controlling differential pressure transmitter FKC.
Designed for complex applications, it helps to secure and optimize the maintenance of measurement systems.
Its robustness and ingenious design facilitate installation and fluid management, guaranteeing safe, reliable operation even in extreme conditions.
