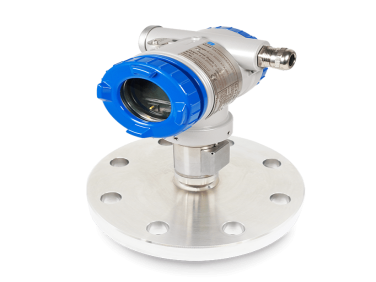

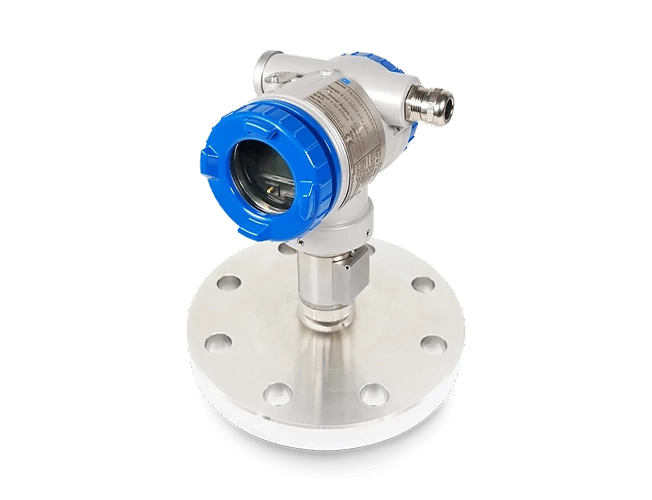

Fuji Electric Absolute diaphragm seal pressure transmitter - FKH F
-
NG # 2485-HW-FUJI-022
Manufactured by:
Specification
Housing L- or T-shaped housing Measuring ranges (kPa) [e.max.] 130
500
3000
10000Weight per kg (without indicator) 1.7 - 17 Accuracy ± 0.2% of the measurement range set as standard. Materials in contact with the process Stainless steel 316 L, Stainless steel 316 L + Gilding Case materials Low-copper aluminum alloy with polyester coating (standard), or 316 stainless steel (optional). Membrane materials Stainless steel 316 L
Hastelloy-CStability ±0.2% of full scale for 10 years Elevation / Deletion From -100 to +100% of maximum scale Scale setting range 1 to 1/100 of maximum scale Measurement cycle 40 ms Communication protocol HART™ 7 communication protocol Process temperature From +40° to +120°C (versions for higher temperatures are available) Ambient temperature From -40° to +85 °C Power supply 10.5 to 45 V DC Output signal / Load resistance 4-20 mA / 250 Ω typical Damping Configurable between 0.04 and 32 secs Zero and span adjustment Via external sensor screw, local three-button indicator or HART™ protocol Electrical connections M20x1.5" / 1/2 - 14 NPT / Pg13.5 Options Digital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate
Description
Diaphragm seal pressure transmitter can be used for a wide range of applications: liquid flow measurement, gas flow measurement, steam flow measurement, fluid level measurement in a tank, fluid density measurement or pressure measurement at low or high temperatures.
