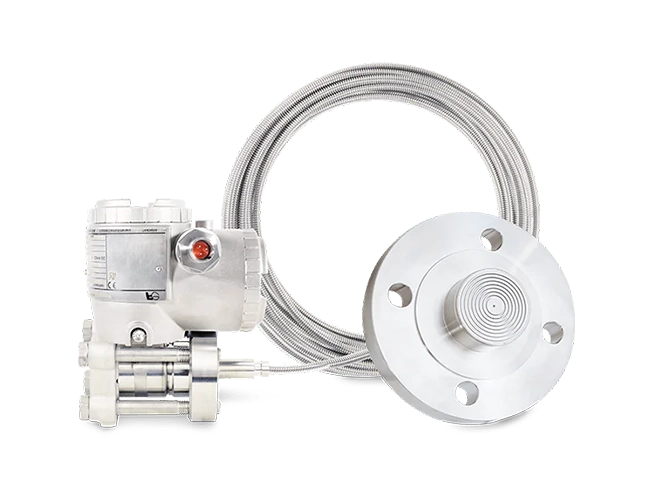

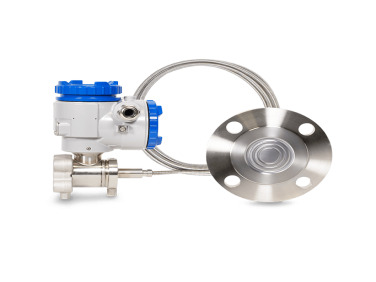

Fuji Electric Diaphragm seal absolute pressure transmitter - FKM
-
NG # 2486-HW-FUJI-023
Manufactured by:
Specification
Housing L- or T-shaped housing Measuring ranges (kPa) [e.max.] 16
130
500
3000
10000Weight per kg (without indicator) 4 - 18 Accuracy ± 0,2 % Materials in contact with the process Stainless steel 316L, Hastelloy-C, Monel, Tantalum, Titanium, Zirconium Case materials Low-copper aluminum alloy
with polyester coating or 316L stainless steelMembrane materials Stainless steel 316L
Hastelloy-C
Monel
Titanium
Zirconium
Stainless steel 316L and GildingStability ±0.2% of full scale for 10 years Elevation / Deletion From -100 to +100% of maximum scale Scale setting range 1 to 1/100 of maximum scale Measurement cycle 40 ms Communication protocol HART™ 7 communication protocol Process temperature From +40° to +120°C (versions for higher temperatures are available) Ambient temperature From -40° to +85°C Power supply 10.5 to 45V DC Output signal / Load resistance 4-20 mA / 250 Ω typical Damping Configurable between 0.04 and 32 secs Zero and span adjustment Via external sensor screw, local three-button indicator or HART™ protocol Electrical connections M20x1.5" / 1/2 - 14 NPT / Pg13.5 Options Digital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate
Description
The FKB, FKD and FKM pressure transmitters in the FCX-AIV family accurately measure gauge pressure, differential and absolute pressure respectively, and convert it into a directly proportional 4-20 mA output signal. At the heart of the measuring element is a micro-capacitive silicon transducer highly proven in the process industry. The digital signal processing carried out by the electronics unit ensures outstanding accuracy and stability. The FCX-AIV family of pressure transmitters complies with integrity and safety levels SIL 2 (HFT=0) and SIL 3 (HFT=1) in accordance with standards IEC 61508 and IEC 61511.
