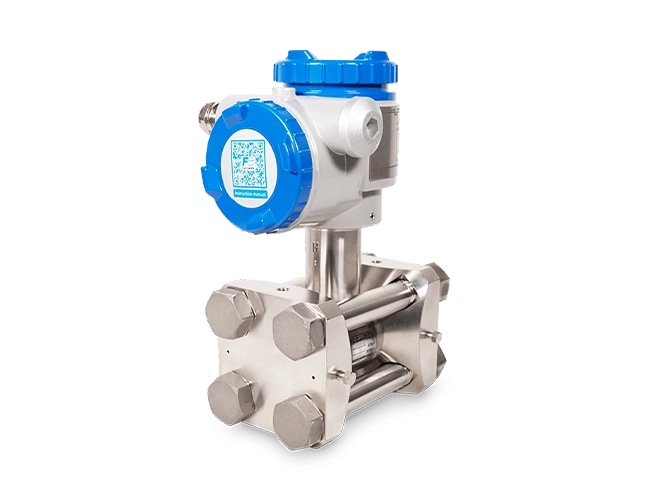

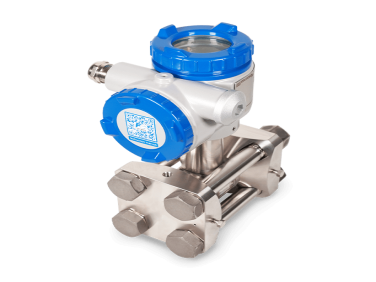

Fuji Electric Differential pressure transmitter - FKC high static pressure
TF:
2472-HW-FUJI-009
| Housing | L- or T-shaped housing |
| Measuring ranges (kPa) [e.max.] | 1 6 32 130 500 3000 20000 |
| Weight per kg (without indicator) | 3,1 |
| Accuracy | ± 0.065% of the measurement range set as standard. An accuracy of ±0.04% is also available as an option. |
| Materials in contact with the process | Stainless steel 316L, Hastelloy-C, Monel, Tantalue, Stainless steel 316L + Gilding, Monel coating, Tantalue coating |
| Case materials | Low-copper aluminum alloy with polyester coating, or 316L stainless steel |
| Membrane materials | Stainless steel 316L Hastelloy-C Monel Tantalum Stainless steel 316L and Gilding Gilding and Ceramics |
| Stability | ±0.1% of maximum scale for 10 years for digit 6 = 3, 5, 6, 8 and 9. |
| Elevation / Deletion | From -100 to +100% of maximum scale |
| Scale setting range | 1 to 1/100 of maximum scale |
| Measurement cycle | 40 ms |
| Communication protocol | HARTTM 7 communication protocol |
| Process temperature | From +40° to +120°C (versions for higher temperatures are available) |
| Ambient temperature | From -40° to +85°C |
| Power supply | 10.5 to 45V DC |
| Output signal / Load resistance | 4-20 mA / 250 Ω typical |
| Damping | Configurable between 0.04 and 32 secs |
| Zero and span adjustment | Via external sensor screw, local three-button display or HARTTM protocol |
| Electrical connections | M20x1.5" / 1/2 - 14 NPT / Pg13.5 |
| Options | Digital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate |
The differential pressure transmitter - FKC high static pressure resists extreme conditions in the marine environment and accurately measures water, oil and gas flows in topside drilling and offshore subsea production systems.
