Fuji Electric Flushing ring
-
NG # 2464-HW-FUJI-001
Manufactured by:
Specification
Process connection For flanges to EN 1092-1 and ASME B 16.5
DN 50, 80, 100, 125 or DN (NSP) 2", 3", 4", 5
PN 16 ... 100 or Class 150 ... 600Material 316L stainless steel Sealing face To EN 1092-1 Form B1 or
to ASME B 16.5 RF 125 ... 250 AARinse port ½" NPT female (without screw plugs) Installation location The rinsing ring is clamped between the process flange and the diaphragm seal using standard sealing elements (please order gaskets separately).
Description
Flushing rings are installed between the diaphragm seal (flange or cell version) and the process flange using standardized gaskets.

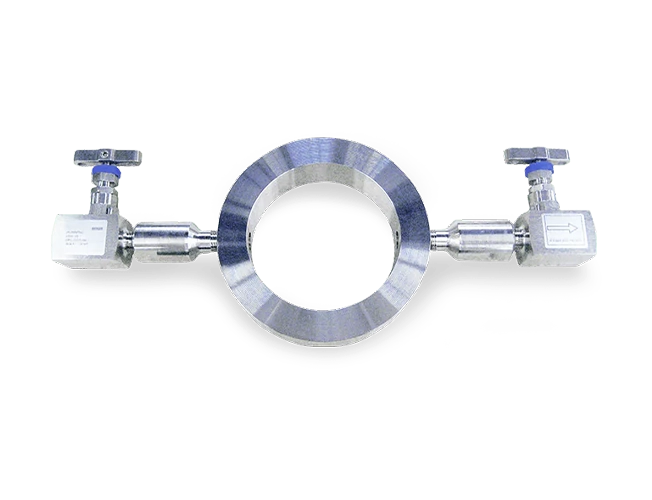

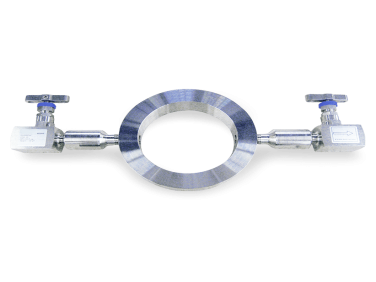

Flushing rings with mounted valves complement installations on diaphragm seal, facilitating maintenance without the need for dismantling. In addition, calibration of the measuring point can be carried out on site using the flushing ring with mounted valves and an upstream shut-off valve.
