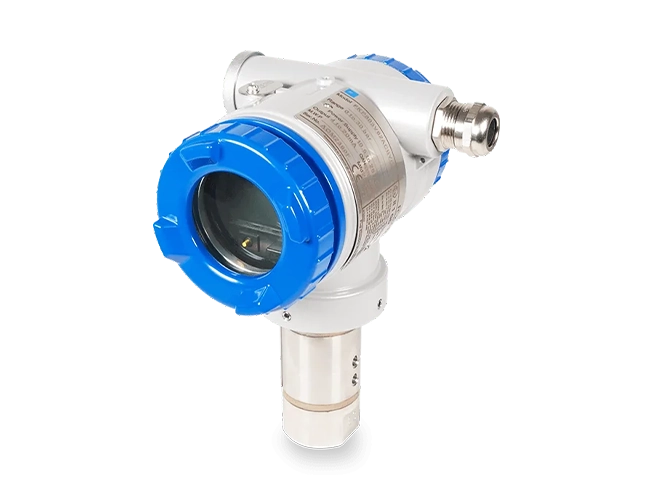

Fuji Electric Gauge pressure transmitter - High pressure - FKR
-
NG # 2471-HW-FUJI-008
Manufactured by:
Specification
Type Intelligent 4-20 mA Pressure transmitter with HARTTM 7 protocol Housing L- or T-shaped housing Measuring ranges (kPa) [e.max.] 70 000
150 000Weight per kg (without indicator) 1.5 Accuracy ±0.065% Materials in contact with the process Inconel® 625
Stainless steel 318 LN
Stainless steel 316LCase materials Low-copper die-cast aluminum alloy, coated with polyester (standard) or 316L stainless steel (optional). Membrane materials Inconel® 625
Inconel® 625 and Gold platingStability ±0.1% of upper range limit for 5 years Elevation / Deletion -1 barg at 100% of full scale Scale setting range From 1 to 1/16 of maximum scale Measurement cycle 40 ms Communication protocol HARTTM 7 communication protocol Process temperature From -40 to 100°C Ambient temperature From -40 to +85°C
-20 to +80°C (with optional LCD unit)
-40 to +60°C (with optional lightning arrester)Power supply 10.5 to 45 V DC Output signal / Load resistance 4-20 mA / 250 Ω typical Damping Configurable from 0.04 to 32 seconds Zero and span adjustment Via external sensor screw, local three-button display or HARTTM protocol Electrical connections M20×1.5" / 1/2 -14 NPT / Pg13.5 Options Digital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate
Description
The gauge pressure transmitter FKR FCX-AIV series stands out for its ability to provide reliable, accurate measurements in the most demanding industrial environments.
Designed to meet the needs of high-pressure applications, the gauge pressure transmitter - high pressure - FKR is capable of withstanding high pressure ranges, up to 150 MPa, while offering enhanced resistance to harsh environmental conditions such as extreme temperatures and corrosive environments. Its material options enable optimum use in aggressive processes.
The high-pressure transmitter also features an optional configurable digital display, making measurements easy to read and enabling simple adjustments via magnetic buttons, without the need to open the housing. Compatible with HARTTM 7 protocol, it ensures seamless integration with modern control systems, enhancing its versatility. Its robust design and international certifications (ATEX, IECEx, cCSAus) make it the preferred choice for critical applications in classified hazardous areas.
