Fuji Electric Isulation valves
-
NG # 2465-HW-FUJI-002
Manufactured by:

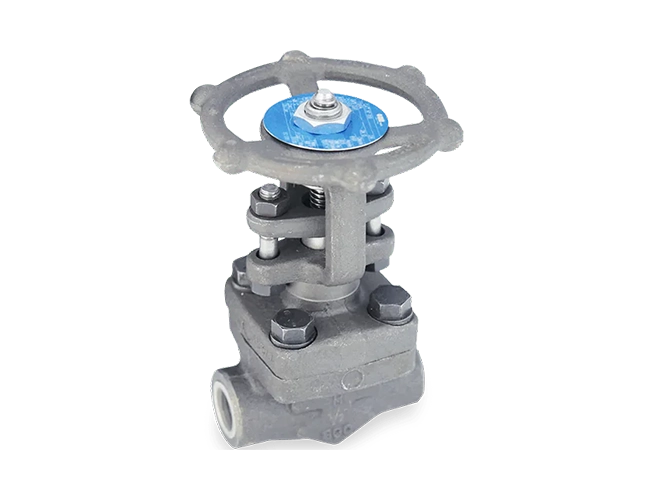

Class 800 industrial valve with non-rotating rising stem, forged steel or stainless steel body, and high-performance trims. Ideal for high-pressure, high-temperature applications with BSP, NPT, or SW end connections.
Specification
Design: Standard passage, OS & Y (Outside Screw & Yoke), non-rotating rising stem
Body Materials: Forged Steel / Stainless Steel
Cap & Gland: Bolted
Trim Options:
½ Stellite - Trim 8 (for steel models)
Trim 10 (Inox 316) (for stainless steel models)
Pressure Class: Class 800
Connection Types:
Female-Female BSP
Female-Female NPT
Solder Socket Weld (SW)
Permissible Temperatures (Ts):
Stainless Steel: -29°C to +538°C (Ref. 141R / 140R)
Steel: -29°C to +425°C (Ref. 111R / 110R / 112R)
Max. Permissible Pressure (Ps): 138 bar (refer to pressure-temperature curve)
Description
This high-performance Class 800 valve is engineered for robust industrial applications requiring reliable flow control under high pressure and varying temperatures. Designed with a non-rotating rising stem (OS & Y), bolted cap, and gland assembly, it ensures durability and tight shutoff. Manufactured from forged steel or stainless steel, it is suitable for demanding environments such as chemical, petrochemical, and high-temperature steam systems. The valve features trim variations for different body materials, including ½ Stellite - Trim 8 for steel and Trim 10 (Inox 316) for stainless steel models. Compatible with BSP, NPT, and SW connections, it offers excellent versatility for different pipeline setups.
