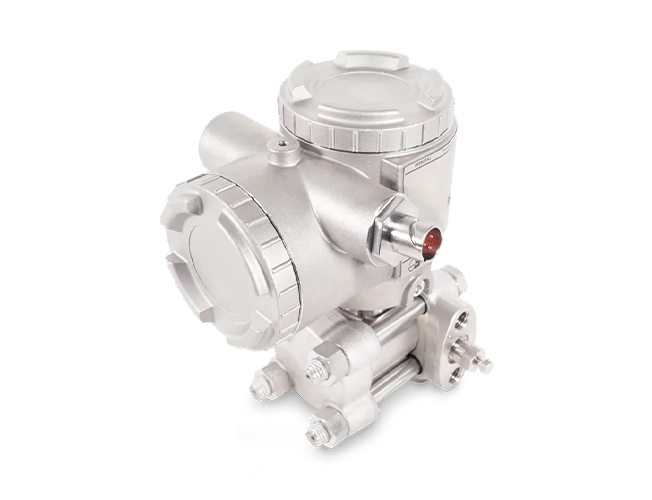

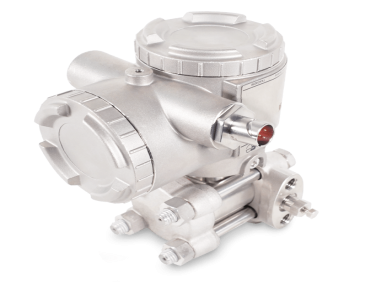

Fuji Electric Nuclear absolute pressure transmitter - FKA - NC - K3
-
NG # 2482-HW-FUJI-019
Manufactured by:
Specification
Housing L- or T-shaped housing Measuring ranges (kPa) [e.max.] 16
130
500
3000Weight per kg (without indicator) 3,4 Accuracy ± 0,2 %
± 0.1% available as an optionMaterials in contact with the process Stainless steel 316, Stainless steel 316 L, Stainless steel 316 L + Gilding Case materials Standard: low-copper aluminum alloy with polyurethane epoxy coating (2 layers).
Option: 316 stainless steelMembrane materials Stainless steel 316 L
Stainless steel 316 L + gildingStability ± 0.2% of max. scale for 3 years. Elevation / Deletion Equal to the upper limit of static pressure. Scale setting range Measurement cycle Communication protocol HART 7 communication protocol Process temperature -40 to +85°C (silicone oil)
-20 to +80 °C (fluorinated oil)Ambient temperature from -25 to +55°C
-20 to +55 °C (digital indicator option)
-20 to +55 °C (fluorinated oil option)Power supply 10.5 to 53 Vdc Output signal / Load resistance 4-20 mA / 250 Ω typical Damping Configurable from 0.12 to 32 seconds Zero and span adjustment Zero and span can be set from the FXW handheld
the FXW handheld communicator and with the external screw
located on the electronic box.Electrical connections M20 x 1.5 or
ATEX explosion-proof cable gland, or
Sub-base Souriau 8N35, or
Sub-base Souriau 8N45S, or
Souriau subbase 8N45, or
SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5
(compatible with 8N45 on the Park), or
Jaeger base with M20 x 1.5 thread ref.536 006 006Options Analog indicator (accuracy: 1.5%), configurable digital indicator, oxygen service, degreasing treatment, additional nameplate
Description
FKA pressure transmitters in the FCX-AIV family accurately measure absolute pressure and convert it into a directly proportional 4-20 mA output signal. At the heart of the measuring element is a micro-capacitive silicon transducer with a proven track record in the process industry. The digital signal processing carried out by the electronics unit ensures outstanding accuracy and stability. The FCX-AIV family of pressure transmitters complies with integrity and safety levels SIL2 (HFT=0) and SIL 3 (HFT=1) in accordance with standards IEC 61508 and IEC 61511.
