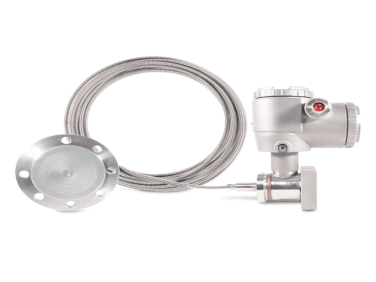

Fuji Electric Nuclear analog diaphragm seal gauge pressure transmitter - FYB - K3
-
NG # 2475-HW-FUJI-012
Manufactured by:
Specification
Housing L- or T-shaped housing Measuring ranges (kPa) [e.max.] 130
500
3000
10000Weight per kg (without indicator) 7,4 Materials in contact with the process Stainless steel 316, Stainless steel 316 L, Hastelloy C Case materials Stainless steel 316 Membrane materials Stainless steel 316 L, Hastelloy C Stability ± 0.5% of max. scale for 30 days. Ambient temperature 0 to 70 °C Power supply 13 to 53 Vdc Output signal / Load resistance 4 to 20 mA / 550 Ω Damping Configuration between 0.1 and 3.2 seconds Zero and span adjustment The zero point can be adjusted using the external adjustment screw on the electronic box, and the scale using the internal adjustment screw. Electrical connections "M20 x 1.5 or
Souriau subbase 8N35, or
Souriau subbase 8N45S, or
Souriau subbase 8N4, or
SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5
(compatible with 8N45 on the Park)".Options Degreasing treatment, Additional marker plate, Vacuum service
Description
The FYB analog transmitter is a device that accurately measures gauge pressure and converts it into a directly proportional 4-20 mA output signal. The heart of the measuring element is a Silicon micro-capacitive sensor, offset in the cell neck, providing exceptional performance. The FYB series is specifically designed for safety in nuclear applications requiring high reliability and long life in harsh environments (radiation with a Total Integrated Dose of 50kGray).
