Fuji Electric Nuclear analog differential diaphragm seals pressure transmitter - FYD - K3
TF:
2474-HW-FUJI-011
| Housing | L- or T-shaped housing |
| Measuring ranges (kPa) [e.max.] | 32 130 500 |
| Weight per kg (without indicator) | 7,4 |
| Materials in contact with the process | Stainless steel 316, Stainless steel 316 L, Hastelloy C |
| Case materials | Stainless steel 316 |
| Membrane materials | Stainless steel 316 L, Hastelloy C |
| Stability | ± 0.5% of max. scale for 30 days. |
| Ambient temperature | 0 to 70 °C |
| Power supply | 13 to 53 Vdc |
| Output signal / Load resistance | 4 to 20 mA / 550 Ω |
| Damping | Configuration between 0.1 and 3.2 seconds |
| Zero and span adjustment | The zero point can be adjusted using the external adjustment screw on the electronic box, and the scale using the internal adjustment screw. |
| Electrical connections | "M20 x 1.5 or Souriau subbase 8N35, or Souriau subbase 8N45S, or Souriau subbase 8N4, or SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5 (compatible with 8N45 on the Park)". |
| Options | Degreasing treatment, Additional marker plate, Vacuum service |

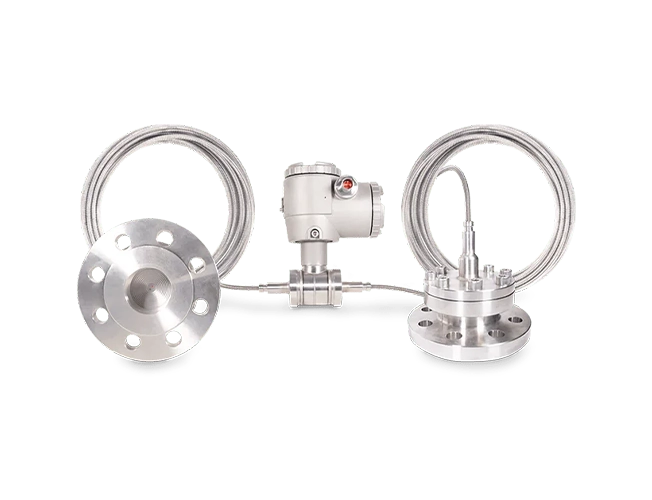

The FYD analog transmitter is a device that accurately measures differential pressure and converts it into a directly proportional 4-20 mA output signal. The heart of the measuring element is a Silicon micro-capacitive sensor, offset in the cell neck, enabling exceptional performance. The FYD series is specifically designed for safety in nuclear applications requiring high reliability and long life in harsh environments (radiation with a Total Integrated Dose of 50kGray).
