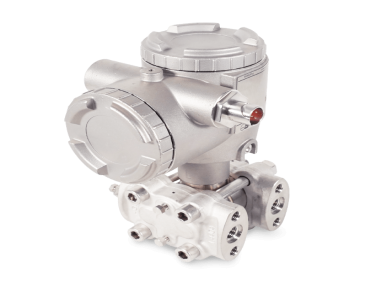

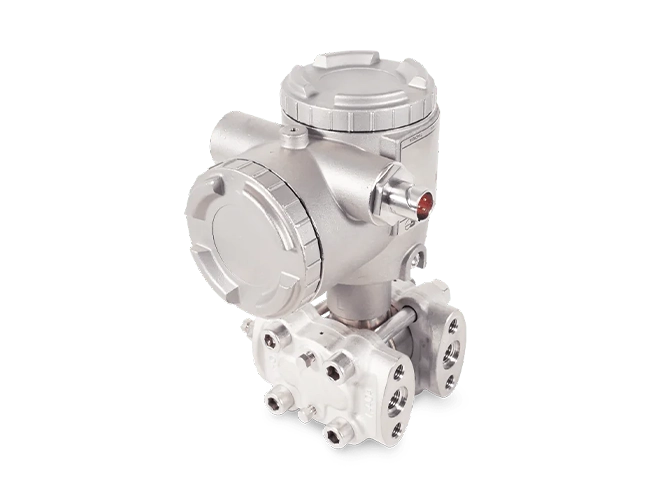

Fuji Electric Nuclear analog differential pressure transmitter - FYC - K3
-
NG # 2477-HW-FUJI-014
Manufactured by:
Specification
Housing L- or T-shaped housing Measuring ranges (kPa) [e.max.] 6
32
130
500
3000Weight per kg (without indicator) 7,4 Accuracy ± 2 % Materials in contact with the process Stainless steel 316, Hast C276, Stainless steel 378 LN Case materials Stainless steel 316 Membrane materials Stainless steel 316 L, Hast C276 Stability ±0.3% of max. scale for 1 year Elevation / Deletion Equal to the upper limit of static pressure Process temperature -40 to +120°C (silicone oil) Ambient temperature 0 to 70 °C Power supply 13 to 48Vdc Output signal / Load resistance 4-20 mA / 600 Ω Damping Configuration between 0.1 and 3.2 seconds Zero and span adjustment Zero and span can be set from the FXW handheld
the FXW handheld communicator and with the external screw
located on the electronic box.Electrical connections M20 x 1.5 or
Souriau subbase 8N35, or
Souriau sub-base 8N45S, or
Souriau subbase 8N4, or
SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5
(compatible with 8N45 on the Park)Options Degreasing treatment, Additional marker plate, Vacuum service
Description
The FYC analog transmitter is a device that accurately measures differential pressure and converts it into a directly proportional 4-20 mA output signal. The heart of the measuring element is a Silicon micro-capacitive sensor, offset in the cell neck, enabling exceptional performance. The FYC series is specifically designed for safety in nuclear applications requiring high reliability and long life in harsh environments (radiation with a Total Integrated Dose of 50kGray).
