Fuji Electric Nuclear analog gauge pressure transmitter - FYG - K3
TF:
2476-HW-FUJI-013
| Housing | L- or T-shaped housing |
| Measuring ranges (kPa) [e.max.] | 130 500 3000 10000 50000 |
| Weight per kg (without indicator) | 5,7 |
| Accuracy | ± 2 % |
| Materials in contact with the process | Stainless steel 316, Hast C276, Stainless steel 316 L |
| Case materials | Stainless steel 316 |
| Membrane materials | Stainless steel 316 L, Hast C276 |
| Stability | ± 0.2% of max. scale for 30 days. |
| Elevation / Deletion | Equal to the upper limit of static pressure |
| Process temperature | -40 to +120°C (silicone oil) |
| Ambient temperature | 0 to 70 °C |
| Power supply | 13 to 48V Vdc |
| Output signal / Load resistance | 4-20 mA / 600 Ω |
| Damping | Configuration between 0.1 and 3.2 seconds |
| Zero and span adjustment | The zero point can be adjusted using the external adjustment screw on the electronic box, and the scale using the internal adjustment screw. |
| Electrical connections | M20 x 1.5 or Souriau subbase 8N35, or Souriau sub-base 8N45S, or Souriau subbase 8N4, or SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5 (compatible with 8N45 on the Park) |
| Options | Degreasing treatment, Additional marker plate, Vacuum service |

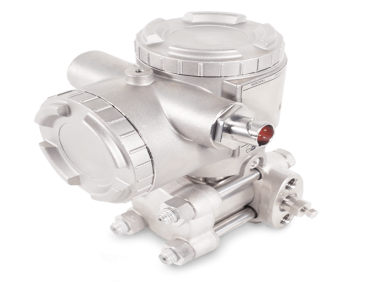

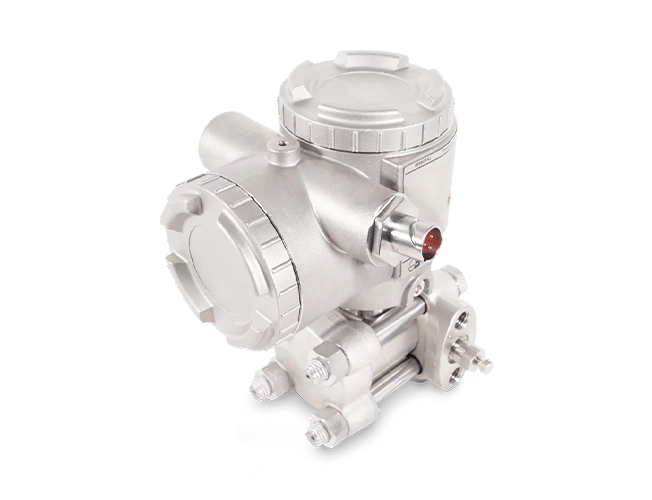

The FYG analog pressure transmitter is a device that precisely measures gauge pressure and converts it into a directly proportional 4-20 mA output signal. The heart of the measuring element is a Silicon micro-capacitive sensor, offset in the cell neck, providing exceptional performance. The FYG series is specifically designed for safety in nuclear applications requiring high reliability and long life in harsh environments (radiation with a Total Integrated Dose of 50kGray).
