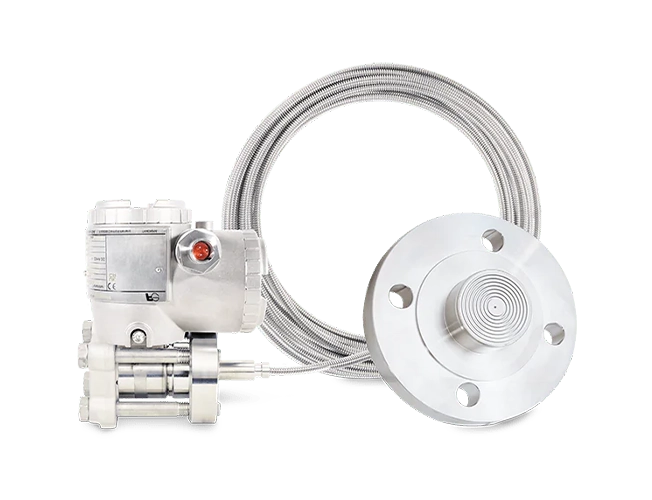

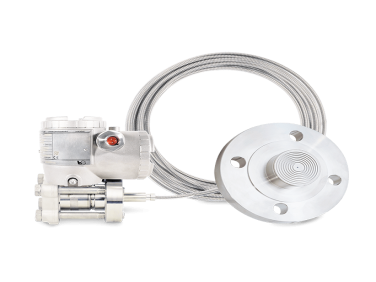

Fuji Electric Nuclear diaphragm seal absolute pressure transmitter - FKM - NC - K3
-
NG # 2478-HW-FUJI-015
Manufactured by:
Specification
Housing L- or T-shaped housing Measuring ranges (kPa) [e.max.] 16
130
500
3000Weight per kg (without indicator) 6 Accuracy ± 0,2 % Materials in contact with the process Case materials 316 stainless steel. Membrane materials Stability ± 0.2% of max. scale for 3 years. Elevation / Deletion Equal to the upper limit of static pressure. Scale setting range Measurement cycle Communication protocol HART™ 7 communication protocol Process temperature from -25 to +55°C
-20 to +55 °C (digital indicator option)Ambient temperature See datasheet for operating temperatures. diaphragm seals Power supply 10.5 to 53 Vdc Output signal / Load resistance 4-20 mA / 250 Ω typical Damping Configurable from 0.12 to 32 seconds Zero and span adjustment Zero and span can be set from the FXW handheld
the FXW handheld communicator and with the external screw
located on the electronic box.Electrical connections M20 x 1.5 or
ATEX explosion-proof cable gland, or
Sub-base Souriau 8N35, or
Sub-base Souriau 8N45S, or
Souriau subbase 8N45, or
SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5
(compatible with 8N45 on the Park), or
Jaeger base with M20 x 1.5 thread ref.536 006 006Options Analog indicator (accuracy: 1.5%), configurable digital indicator, oxygen service, degreasing treatment, additional nameplate
Description
The pressure transmitter, FCX-AII series electronic transmitter is a device that accurately measures differential, gauge or absolute pressure and converts it into a directly proportional 4-20 mAcc output signal. It is used to measure differential, absolute and gauge pressure, flow, level or density. The heart of the measuring element is a silicon micro-capacitive sensor. In addition, the electronic unit benefits from the latest microprocessor technology.
