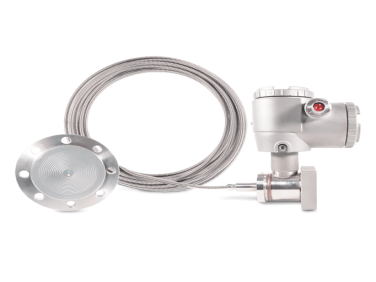

Fuji Electric Nuclear diaphragm seal gauge pressure transmitter - FKB - NC - K3
TF:
2480-HW-FUJI-017
| Housing | L- or T-shaped housing |
| Measuring ranges (kPa) [e.max.] | 130 500 3000 10000 50000 |
| Weight per kg (without indicator) | 6 |
| Accuracy | ± 0,07 % |
| Materials in contact with the process | |
| Case materials | 316 stainless steel. |
| Membrane materials | |
| Stability | ± 0.1% of max. scale for 3 years. |
| Elevation / Deletion | Equal to the upper limit of static pressure. |
| Scale setting range | |
| Measurement cycle | |
| Communication protocol | HART™ 7 communication protocol |
| Process temperature | from -25 to +55°C -20 to +55 °C (digital indicator option) |
| Ambient temperature | See datasheet for operating temperatures. diaphragm seals |
| Power supply | 10.5 to 53 Vdc |
| Output signal / Load resistance | 4-20 mA / 250 Ω typical |
| Damping | Configurable from 0.12 to 32 seconds |
| Zero and span adjustment | Zero and span can be set from the FXW handheld the FXW handheld communicator and with the external screw located on the electronic box. |
| Electrical connections | M20 x 1.5 or ATEX explosion-proof cable gland, or Sub-base Souriau 8N35, or Sub-base Souriau 8N45S, or Souriau subbase 8N45, or SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5 (compatible with 8N45 on the Park), or Jaeger base with M20 x 1.5 thread ref.536 006 006 |
| Options | Analog indicator (accuracy: 1.5%), configurable digital indicator, oxygen service, degreasing treatment, additional nameplate |
The pressure transmitter, FCX-AII series electronic transmitter is a device that accurately measures differential, gauge or absolute pressure and converts it into a directly proportional 4-20 mAcc output signal. It is used to measure differential, absolute and gauge pressure, flow, level or density. The heart of the measuring element is a silicon micro-capacitive sensor. In addition, the electronic unit benefits from the latest microprocessor technology.
