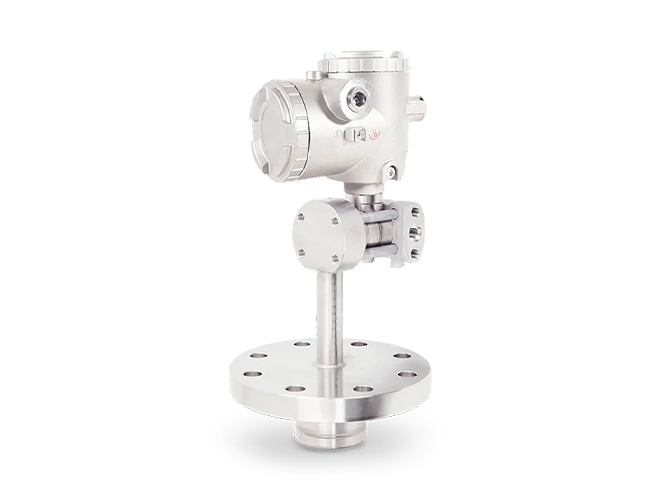

Fuji Electric Nuclear pressure transmitter - FKE - NC - K3
-
NG # 2481-HW-FUJI-018
Manufactured by:
Specification
Housing L- or T-shaped housing Measuring ranges (kPa) [e.max.] 6
32
130
500
3000Weight per kg (without indicator) 13 Accuracy ± 0,17 %
± 0.1% available as an optionMaterials in contact with the process Stainless steel 316, Stainless steel 316 L, Stainless steel 316 L + Gilding, Hastelloy C Case materials Standard: low-copper aluminum alloy with polyurethane epoxy coating (2 layers).
Option: 316 stainless steelMembrane materials 316 L stainless steel + gilding Stability ± 0.2% of max. scale for 3 years. Elevation / Deletion Equal to the upper limit of static pressure. Communication protocol HART 7 communication protocol Process temperature -40 to +85°C (silicone oil)
-20 to +80 °C (fluorinated oil)Ambient temperature from -25 to +55°C
-20 to +55 °C (digital indicator option)
-20 to +55 °C (fluorinated oil option)Power supply 10.5 to 53 Vdc Output signal / Load resistance 4-20 mA / 250 Ω typical Damping Configurable from 0.12 to 32 seconds Zero and span adjustment Zero and span can be set from the FXW handheld
the FXW handheld communicator and with the external screw
located on the electronic box.Electrical connections M20 x 1.5 or
ATEX explosion-proof cable gland, or
Sub-base Souriau 8N35, or
Sub-base Souriau 8N45S, or
Souriau subbase 8N45, or
SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5
(compatible with 8N45 on the Park), or
Jaeger base with M20 x 1.5 thread ref.536 006 006Options Analog indicator (accuracy: 1.5%), configurable digital indicator, oxygen service, degreasing treatment, additional nameplate
Description
The FCX-AII series electronic transmitter level sensor is a device that accurately measures liquid level and converts it into a directly proportional 4-20 mAcc output signal. The heart of the measuring element is a silicon micro-capacitive sensor, offset in the neck of the cell. In addition, the electronic unit benefits from the latest microprocessor technology.
