Fuji Electric Oval flanges
TF:
2466-HW-FUJI-003
Overview

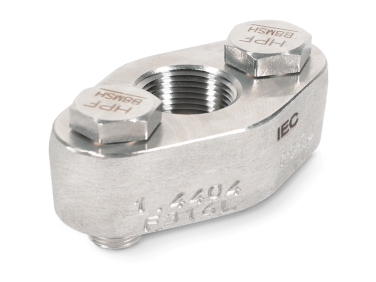

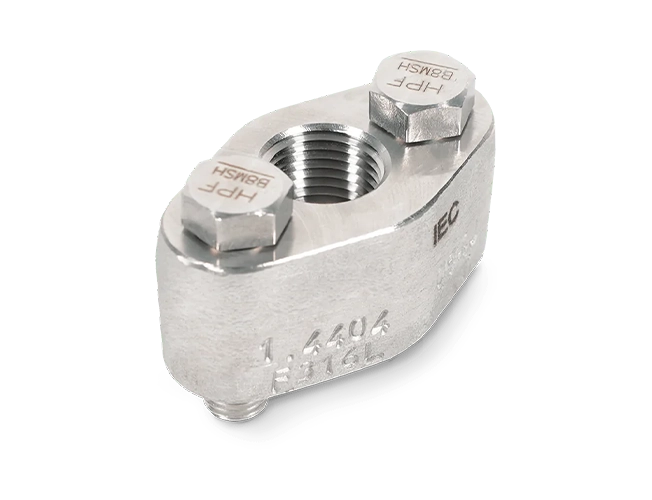

A compact, precision-engineered flange accessory built from corrosion-resistant stainless steel (316L). It allows Fuji Electric transmitters with standard ¼″ NPT process ports to be converted to ½″ NPT pulse line ports seamlessly, ensuring leak-resistant connections and stable performance under demanding conditions .
| Attribute | Details |
|---|---|
| Reference | 651B051‑01 |
| Material | Stainless Steel 316L |
| Process Connection | ½″‑14 NPT male |
| Purpose | Converts transmitter process port to pulse line connection |
| Compatible With | Fuji Electric pressure/differential transmitters with ¼″ NPT ports |
| Operating Pressure | Suitable for static pressures up to 16–42 MPa (matching FFN/FFP units) |
| Fluid Temperature | –40 °C to 120 °C (aligned with FCX transmitter specifications) |
| Gasket | Teflon/PTFE (ensures chemical resistance and sealing integrity) |
The Oval Flange (Ref. 651B051‑01) is an accessory designed to adapt Fuji Electric pressure transmitters to pulse line systems using ½″-14 NPT threaded connections. Made from 316L stainless steel, it offers a durable and precise installation method—ideal for industrial environments like petrochemical, energy, and general process control .
