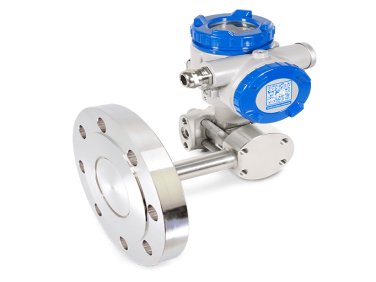

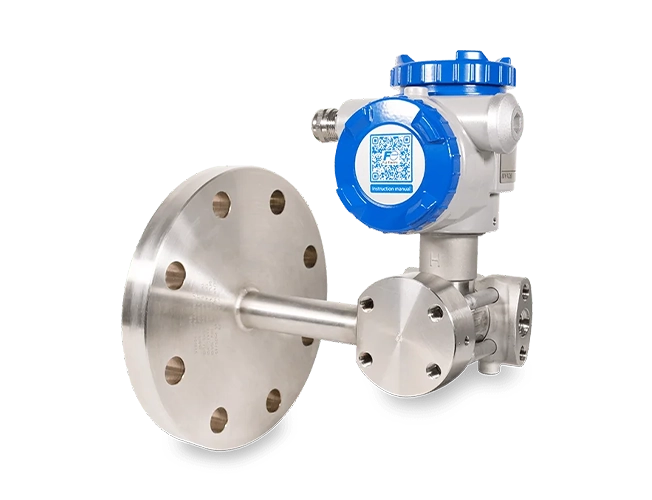

Fuji Electric Pressure transmitter - FKE
-
NG # 2489-HW-FUJI-026
Manufactured by:
Specification
Housing L- or T-shaped housing Measuring ranges (kPa) [e.max.] 1
6
32
130
500
3000Weight per kg (without indicator) 2-19 Accuracy ± 0.165% of the measurement range set as standard.
An accuracy of ± 0.1% is also available as an option.Materials in contact with the process Stainless steel 316L, Hastelloy-C, Monel, Tantalum, Hastelloy-C276, Monel 400, Stainless steel 316L + PFA coating, Stainless steel 316L + Gold coating, Titanium, Zirconium Case materials Low-copper aluminum alloy with polyester or
polyester coating or 316L stainless steel.Membrane materials Stainless steel 316L
Hastelloy-C
Monel
Titanium
Zirconium
Stainless steel 316L and GildingStability ±0.2% of maximum scale for 10 years. Elevation / Deletion From -100 to +100% of maximum scale Scale setting range 1 to 1/100 of maximum scale Measurement cycle 40 ms Communication protocol HART™ 7 communication protocol Process temperature From +40° to +120°C (versions for higher temperatures are available) Ambient temperature From -40° to +85°C Power supply 10.5 to 45V DC Output signal / Load resistance 4-20 mA / 250 Ω typical Damping Configurable between 0.04 and 32 secs Zero and span adjustment Via external sensor screw, local three-button indicator or HART™ protocol Electrical connections M20x1.5" / 1/2 - 14 NPT / Pg13.5 Options Digital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate
Description
FKE direct-mount pressure transmitters in the FCX-AIV family accurately measure a liquid level and convert it into a directly proportional 4-20 mA output signal. The heart of the measuring element is a micro-capacitive silicon transducer that has proven its worth in the process industry.
The digital signal processing carried out by the electronic unit offers outstanding accuracy and stability. The FCX-AIV family of pressure transmitters complies with integrity and safety levels SIL 2 (HFT=0) and SIL 3 (HFT=1) in accordance with IEC 61508 and IEC 61511 standards.
