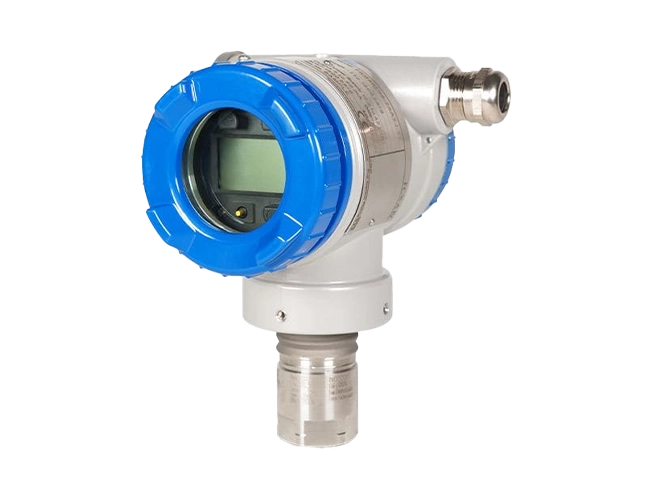

Pressure sensor for high-pressure applications FKR - FCX-AIV V6 Series
2492-HW-FUJI-029
| Type | Intelligent 4-20 mA Pressure transmitter with HARTTM 7 protocol |
| Housing | L- or T-shaped housing |
| Measuring ranges (kPa) [e.max.] | 70 000 150 000 |
| Weight per kg (without indicator) | 1.5 |
| Accuracy | ±0.065% |
| Materials in contact with the process | Inconel® 625 Stainless steel 318 LN Stainless steel 316L |
| Case materials | Low-copper die-cast aluminum alloy, coated with polyester (standard) or 316L stainless steel (optional). |
| Membrane materials | Inconel® 625 Inconel® 625 and Gold plating |
| Stability | ±0.1% of upper range limit for 5 years |
| Elevation / Deletion | -1 barg at 100% of full scale |
| Scale setting range | From 1 to 1/16 of maximum scale |
| Measurement cycle | 40 ms |
| Communication protocol | HARTTM 7 communication protocol |
| Process temperature | From -40 to 100°C |
| Ambient temperature | From -40 to +85°C -20 to +80°C (with optional LCD unit) -40 to +60°C (with optional lightning arrester) |
| Power supply | 10.5 to 45 V DC |
| Output signal / Load resistance | 4-20 mA / 250 Ω typical |
| Damping | Configurable from 0.04 to 32 seconds |
| Zero and span adjustment | Via external sensor screw, local three-button display or HARTTM protocol |
| Electrical connections | M20×1.5" / 1/2 -14 NPT / Pg13.5 |
| Options | Digital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate |
GAUGE PRESSURE TRANSMITTER - HIGH PRESSURE - FKR: RELIABILITY AND PERFORMANCE FOR DEMANDING INDUSTRIAL APPLICATIONS The high pressure gauge pressure transmitter FRK from Fuji Electric is designed to meet the demands of the most challenging industrial environments. Thanks to its mechanical robustness and measurement precision, it provides effective monitoring of high pressures across various sectors. Ideal for installations requiring strong overload resistance and long-term stability. FEATURES OF THE GAUGE PRESSURE TRANSMITTER - HIGH PRESSURE - FKR - Measurement range: up to 1500 bar - Silicon-based piezoresistive technology - Stainless steel housing for excellent corrosion resistance - Analog output 4-20 mA with HART digital signal superimposed on the analog signal - Compliant with SIL2 / SIL3 safety integrity levels APPLICATIONS Used for pressure monitoring in hydraulic circuits, machine tools, petrochemical, and processing industries. Also suitable for power plants, automotive component manufacturing, pressure testing equipment, and offshore engineering. ADVANTAGES High accuracy and low long-term drift Rugged construction for severe environments Wide compatibility with standard industrial systems Fast response time Easy to install and integrate
