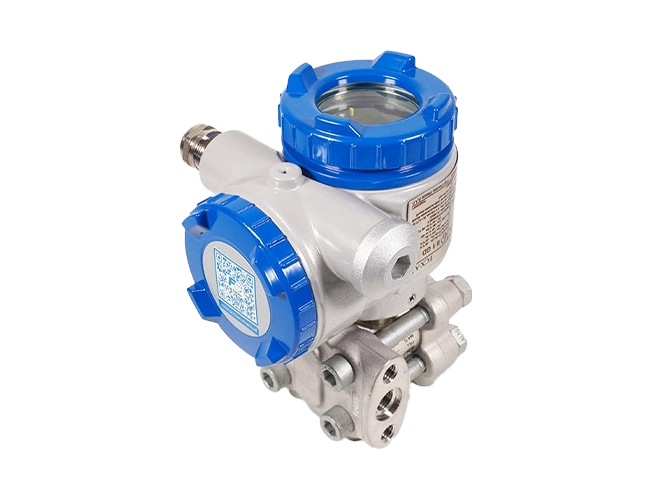

Relative pressure sensor FKG - FCX-AIV V6 Series
-
NG # 2493-HW-FUJI-030
Manufactured by:
Specification
Type Intelligent 4-20 mA Pressure transmitter with HARTTM 7 protocol Housing L- or T-shaped housing Measuring ranges (kPa) [e.max.] 70 000
150 000Weight per kg (without indicator) 1.5 Accuracy ±0.065% Materials in contact with the process Inconel® 625
Stainless steel 318 LN
Stainless steel 316LCase materials Low-copper die-cast aluminum alloy, coated with polyester (standard) or 316L stainless steel (optional). Membrane materials Inconel® 625
Inconel® 625 and Gold platingStability ±0.1% of upper range limit for 5 years Elevation / Deletion -1 barg at 100% of full scale Scale setting range From 1 to 1/16 of maximum scale Measurement cycle 40 ms Communication protocol HARTTM 7 communication protocol Process temperature From -40 to 100°C Ambient temperature From -40 to +85°C
-20 to +80°C (with optional LCD unit)
-40 to +60°C (with optional lightning arrester)Power supply 10.5 to 45 V DC Output signal / Load resistance 4-20 mA / 250 Ω typical Damping Configurable from 0.04 to 32 seconds Zero and span adjustment Via external sensor screw, local three-button display or HARTTM protocol Electrical connections M20×1.5" / 1/2 -14 NPT / Pg13.5 Options Digital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate
Description
GAUGE PRESSURE TRANSMITTER - FKG : A ROBUST AND PRECISE SOLUTION FOR INDUSTRIAL PRESSURE MEASUREMENT The gauge pressure transmitter FKG from Fuji Electric is designed to provide reliable and precise pressure measurement in demanding industrial environments. With its robust construction and high accuracy, it ensures long-term stability even in extreme conditions. Its easy integration and broad compatibility make it an ideal choice for various industrial applications. FEATURES OF THE GAUGE PRESSURE SENSOR FKG - Measurement range: from -1 to 500 bar - High accuracy: stable and reliable measurements over time - Signal output: available in both analog and digital versions - Material: stainless steel construction for optimal durability - Protection rating SIL2/SIL3: designed for harsh environments APPLICATIONS The gauge pressure transmitter FKG is used in various industrial sectors requiring precise pressure control, including energy, petrochemicals, water and fluid treatment, and industrial process automation. BENEFITS Increased reliability and accuracy for optimal process control Adaptability to complex industrial environments Resistance to extreme conditions with robust construction Simplified integration with various control systems Reduced maintenance for optimized operating costs
