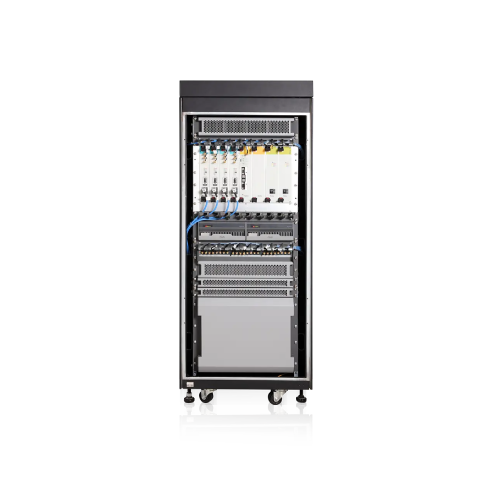

Hytera DS-6210 DMR Trunking Pro Base Station
TF:
001442-HW-Hytera-042
Overview
Hytera DS-6210 DMR Trunking Pro Base Station is a digital trunking base station based on ETSI open standard DMR Tier 3.
| System Performance | |
|---|---|
| Max. BS Capacity | 512 |
| Max. Carrier Capacity per BS(carrier) | 16(extendable to 48 carriers at most) |
| Network Capacity (carrier) | 2048 |
| Subscriber Capacity per MSO | 100000 |
| LDS Capacity (pcs) | 50000 |
| NMC Capacity (pcs) | 64 |
| MPT Interconnect (way per gateway) | 16 |
| PSTN/PABX Interconnect (way per gateway) | 60(2xE1)/30(1xE1) |
| Group Call Set-up Duration (ms) | <300(within a single MSO) |
| Max. Number of Interconnected MSOs | ≤512 |
| MS Capacity per System | 100000 |
| BS Specificaition | |
| Standard Compliance | PDT/DMR |
| Frequency Range | UHF3：330-400MHz; UHF1：400-470MHz; UHF2：806-941MHz; VHF：136-174MHz |
| Carrier Capacity | 1CH to 16CH(expandable to 48 at most) |
| Power Supply | DC 48V; AC 220V |
| Dimensions(H×W×D) mm | 42U:600 mm × 700 mm × 2000 mm; 29U:600 mm × 600 mm × 1430 mm |
| Weight | 8-carrier (42U) ≤314 kg(fully configured); 4-carrier (29U) ≤165 kg(fully configured) |
| Operating Temperature | -15℃～+35℃ |
| Storage Temperature | -40℃～+85℃ |
| IP Rating | IP20 |
| Receiver | |
| RX Sensitivity(Static) | -118 dBm@BER5% |
| Transmitter | |
| Adjust Power Range | 1 W～50 W |
The focus is on public safety, public utilities, energy, PMR operator, etc. With innovative design, Hytera DMR Trunking Pro Base Station is provided with features such as carrier grade reliability, wide coverage, large capacity and rich functionalities.
