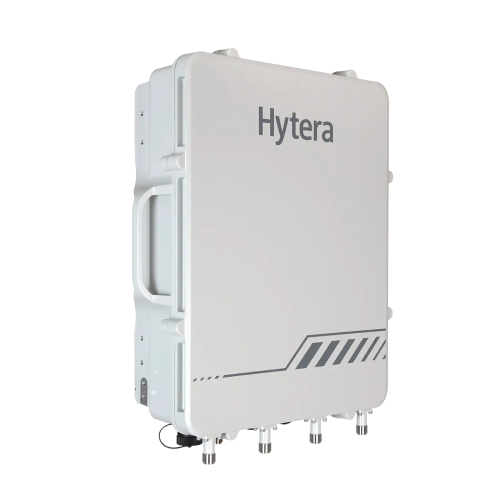

Hytera DS-6250S DMR Trunking Cube Base Station
TF:
001439-HW-Hytera-039
Overview
Hytera DS-6250S DMR Trunking Cube Base Station is a next-generation compact base station based on DMR Tier lll protocol.
| BS Specificaition | |
|---|---|
| Standard Compliance | DMR |
| Frequency Range | UHF1: 415-445MHz; VHF: 136-174MHz |
| Carrier Capacity | 8 (extendable to 24 carriers at most) |
| Power Supply | DC 48V / AC 220V with power adapter |
| Power Consumption | UHF: ≤350W; VHF: ≤210W |
| Clock Synchronization | GPS/Beidou/Glonass/Galileo/PTP |
| Dimensions(H×W×D) mm | 447mm×357mm×125mm |
| Weight | ≤16.7kg |
| Operating Temperature | -40 to +55℃ |
| Storage Temperature | -40 to +85℃ |
| Relative Humidity | 5% to 100% RH |
| IP Rating | IP68 |
| Wind Resistant | 240km/h |
| Lightning Protection | 20kA |
| Mean Time Between Failures(MTBF) | ≥100000h |
| Receiver | |
| RX Sensitivity(Static) | -122dBm@BER5% |
| Transmitter | |
| TX Power | UHF:; 2 -carrier: ≤50W; 4 -carrier: ≤25W; 8 -carrier: ≤10W; VHF:; 1 -carrier:≤ 50W; 2 -carrier:≤ 25W; 4 -carrier:≤ 10W |
With a small form factor and high integration, it is cost-effective and powerful. Built on multi-carrier and SDR technologies, one base station is expandable to 8 carriers (UHF) or 4 carriers (VHF). And all frequencies and carrier capacity can be customized via software as you need. The DS-6250S exceeds your expectations from deployment to networking. IP68 rated, the DS-6250S is ideally suited for the harshest locations, indoors or outdoors. It offers flexible installation options, such as mounting on towers, walls and vehicles. which brings about wider coverage and dead zone elimination.
