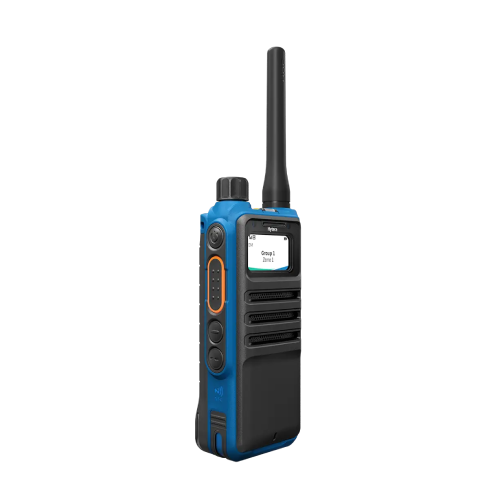

Hytera HP71XEx IIA Intrinsically Safe DMR Portable Two-way Radio
-
NG # 001426-HW-Hytera-026
Manufactured by:
HP71XEx IIA Intrinsically Safe DMR Portable Two-way Radio features a secure design, durable body, and advanced ergonomics.
Specification
Frequency Range 400-480MHz;136-174MHz;350-400MHz;330-400MHz Channel Capacity 1024 Zone Capacity 64 Operating Voltage 7.4V (rated) Battery Standard: 2150 mAh lIC intrinsically safe Li battery (Typical) Battey Life(5/5/90 Duty Cycle,High TX Power) 22h (GNSS OFF); 19h (GNSS ON) Dimensions(H×W×D) mm 130 mm x 55 mm x 37 mm Weight about 390g Display LCD,172x320 pixel, 262000 colors, 1.47inch Anti-explosion levels IECEx: Ex ib I Mb;Ex ib IIA T4 Gb;Ex ib IIIC T120°C Db;Tamb = -25°C to +50°C;IP66, IP67, IP68; ATEX: I M2 Ex ib I Mb;II 2G Ex ib IIA T4 Gb;II 2D Ex ib IIIC T120°C Db;Tamb = -25°C to +50°C;IP66, IP67, IP68; USA: CL I, ZN 1, AEx ib IIA T4 Gb;ZN 21, AEx ib IIIC T120°C Db;Tamb = -25°C to +50°C;IP66, IP67, IP68; CA: Ex ib IIA T4 Gb;Ex ib IIIC T158°C Db;Tamb = -25°C to +50°C;IP66, IP67, IP68 Operating Temperature -30°C~+60°C (not a dangerous area);-25°C~+50°C (dangerous area) Storage Temperature -40℃～+85℃
Description
HP71XEx IIA provides clear and loud voice quality, extended working hours, and long-distance communication capabilities. Compliant with stringent IECEx explosion-proof standards, it holds IECEx international certifications. This design meets global explosion-proof certification standards, providing reliable safe communication for industries such as oil and gas, fire rescue, airports, manufacturing, and more.
