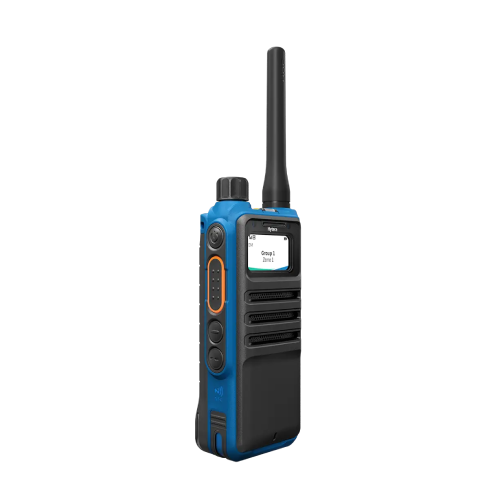

Hytera HP71XEx IIC Intrinsically Safe DMR Portable Two-way Radio

  • NG # 001425-HW-Hytera-025

Manufactured by:

This seller generally responds in under 48 hours

HP71XEx IIC Intrinsically Safe DMR Portable Two-way Radio features a secure design, durable body, and advanced ergonomics.

Specification

Frequency Range400-480MHz;136-174MHz;350-400MHz;330-400MHz
Channel Capacity1024
Zone Capacity64
Operating Voltage7.4V (rated)
BatteryStandard: 2150 mAh lIC intrinsically safe Li battery (Typical)
Battey Life(5/5/90 Duty Cycle,High TX Power)24h (GNSS OFF); 21h (GNSS ON)
Dimensions(H×W×D) mm130 mm x 55 mm x 37 mm
Weightabout 390g
DisplayLCD,172x320 pixel, 262000 colors, 1.47inch
BTBT 5.3
Anti-explosion levelsIECEx: Ex ib I Mb;Ex ib IIC T4 Gb;Ex ib IIIC T120°C Db;Tamb = -25°C to +60°C;IP66, IP67, IP68; ATEX: I M2 Ex ib I Mb;II 2G Ex ib IIC T4 Gb;II 2D Ex ib IIIC T120°C Db;Tamb = -25°C to +60°C;IP66, IP67, IP68; USA: CL I, ZN 1, AEx ib IIC T4 Gb;ZN 21, AEx ib IIIC T120°C Db;Tamb = -25°C to +60°C;IP66, IP67, IP68; CA: Ex ib IIC T4 Gb;Ex ib IIIC T158°C Db;Tamb = -25°C to +60°C;IP66, IP67, IP68

Description

HP71XEx IIC provides clear and loud voice quality, extended working hours, and long-distance communication capabilities. Compliant with stringent IECEx explosion-proof standards, it holds IECEx international certifications. This design meets global explosion-proof certification standards, providing reliable safe communication for industries such as oil and gas, fire rescue, airports, manufacturing, and more.
