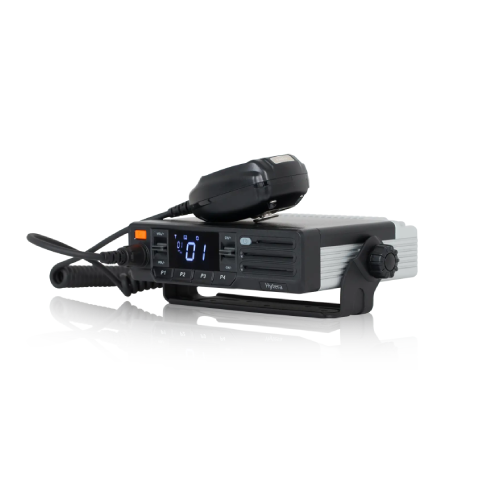

Hytera MD61X Business DMR Mobile Two-way Radio
-
NG # 001410-HW-Hytera-010
Manufactured by:
This
seller generally responds in under 48 hours
This radio is for users engaged in commerce and industry, such as in taxis, freight cars, and school buses.
Specification
| Frequency Range | UHF:400-470 MHz; VHF:136-174 MHz |
| Channel Capacity | 48 (16 channels per zone ) |
| Zone Capacity | 3 |
| Operating Voltage | 13.6 V±15% |
| Current Drain(Standby) | around 0.3 A |
| Current Drain(transmit) | 45 W<12 A; 25 W<8 A; 1 W<3 A; 5 W<5 A |
| Current Drain(receive) | < 1 A |
| Dimensions(H×W×D) mm | 164 mm×43 mm×150 mm |
| Weight | 1100 g |
| Display | Digital display |
| ensitivity(Analog) | 0.3 μV (12 dB SIN AD); 0.4 μV (20 dB SIN AD); 0.22 μV (Typical) (12 dB SIN AD); |
| Sensitivity(Digital) | 0.3 μV/BER 5% |
| Rated Audio Power Output(External) | External（@8 ohm load） 8 W |
| Max. Audio Power Output(Internal) | Internal（@16 ohm olad）6 W |
| Max. Audio Power Output(External) | External（@8 ohm load）12 W |
| F Power Output | Low power version:1-25 W (UHF/VHF); High power version:5-45 W(UHF) / 5-50 W(VHF) |
| Digital Vocoder Type | AMBE+2™/SELP |
| Operating Temperature | -30 ℃~+60 ℃ |
| Dust & Water Protection | IP54 |
| Humidity | MIL-STD-810 G standard |
| Vibration,Drop&Shock | MIL-STD-810 G standard |
Description
It is thin and stylish. It is made of rugged aluminum alloy. Meanwhile, a palm microphone is supplied for easy operation. In addition, it is compatible with both analog and digital modes.
