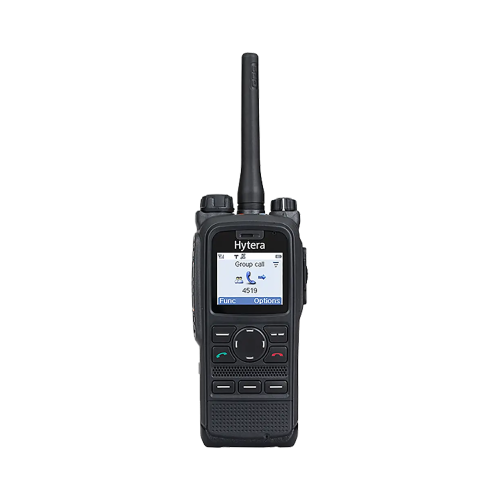

Hytera PT560H Mission Critical TETRA Portable Radio

  • NG # 001433-HW-Hytera-033

Manufactured by:

This seller generally responds in under 48 hours

PT560H Mission Critical TETRA Portable Radio is engineered for top performance in harsh conditions.

Specification

General
Frequency Range380-430 MHZ
Dimensions(H×W×D) mm127.5 mm × 55 mm × 36.5 mm
Weight368g(with 1800 mAh standard battery and antenna)
Operating Voltage7.4 V
BatteryStandard: 1800 mAh Battery;Optional: 2500 mAh  Battery
Battery Life (TMO 5/5/90 duty cycle)>20 H(1800 mAh); >27 H(2500 mAh)
User Interface
Display1.8 inch,160*128 pixels,262144 colors
Talk Group-TMO6000
Talk Group-DMO4000
Telephone book2000
Inbox400
Outbox50
State Message200
RF Specifications
Channel Bandwidth25 kHz
RF Power Output3 W
RF Power Level Accuracy±2 dB
RF Power Control5 dB per step, 5 levels and 4 steps in total
Receiver ClassETSI EN 392-2/396-2 Class A and Class B
RX Sensitivity(Static)≤-116 dBm(typical-118 dBm)
RX Sensitivity(Dynamic)≤-107 dBm(typical-109 dBm)
Audio Power Output2 W(Max: 3 W)
GPS Specifications
RX SensitivityAcquisition sensitivity: -146 dBm; Tracking sensitivity: -165 dBm
Horizontal Position Accuracy≤2.5 m (50% probable -130 dBm)
Cold Start (Time to First Fix)<35 s
Hot Start (Time to First Fix)<1 s
NoteConditions: Open Sky environment, 130 dBm signal strength, 24 H static
Environmental
Operating Temperature-30℃ ~ +60℃
Storage Temperature-40℃ ~ +85℃
Dust & Water ProtectionIP65/66/67/68 Per IEC60529
HumidityETS 300-019-1-7 Class 7.3E; MIL-STD-810 G
Vibration,Drop&ShockETS 300-019-1-7 Class 5M3; MIL-STD-810 G; GJB150A-2009

Description

With its advanced noise canceling technology and 3-watt high-power design, PT560H delivers clear voice calls amid noises across a wide range. It is available in four different versions, including basic, advanced, professional, and tamper-proof version, to serve specific work scenarios.
