| General | |
|---|---|
| Frequency Range | UHF1:400-470 MHz; UHF2:450-520 MHz; UHF3:350-400 MHz; UHF5:806-941 MHz; VHF1:136-174 MHz; VHF3:210-270 MHz |
| Channel Capacity | 1024 |
| Operating Voltage | 13.6 V±15% |
| Duty Cycle | 100% |
| Dimensions(H×W×D) mm | 88 mm × 483 mm × 366 mm |
| Weight | 8.5 Kg |
| Display | LCD Display:220*176 pixel,262000 colours,2.0 inch,4 rows |
| Receiver | |
| Rated Audio Power Output | 0.5 W |
| Transmitter | |
| RF Power Output | UHF5(935-941 MHz): 5-30 W (continuous); UHF1/UHF2/UHF3: 5-50 W (continuous); UHF5(851-870 MHz): 5-35 W (continuous); VHF1/VHF3: 5-50 W (continuous) |
| Digital Vocoder Type | AMBE+2™, SELP |
| Environmental | |
| Operating Temperature | -30℃～+60℃ |
| Storage Temperature | -40℃～+85℃ |

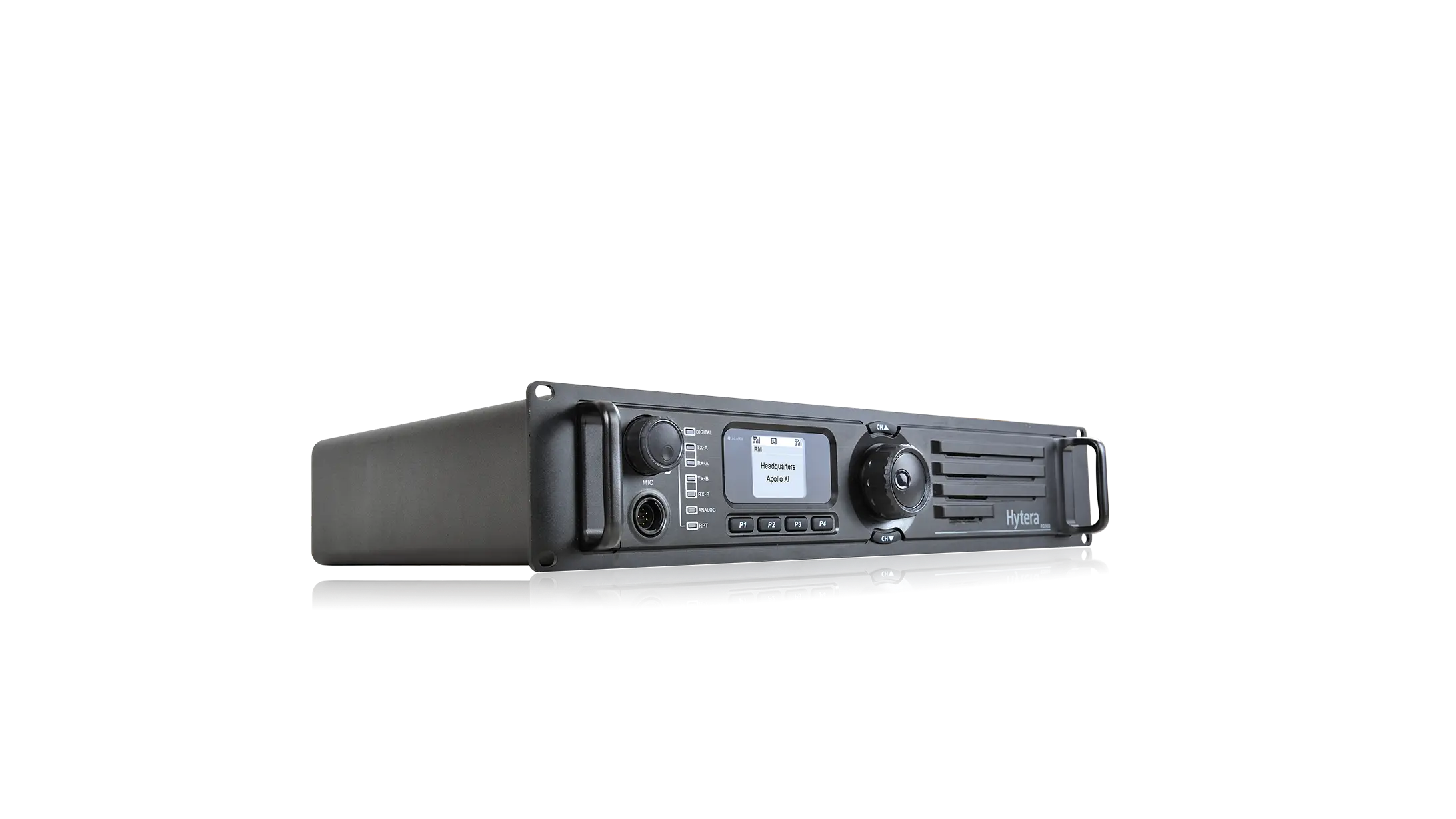

This repeater uses universal hardware platform with strong compatibility. The compatibility of the radio is promoted through software upgrade, thereby meeting users' different requirements at different stages.
