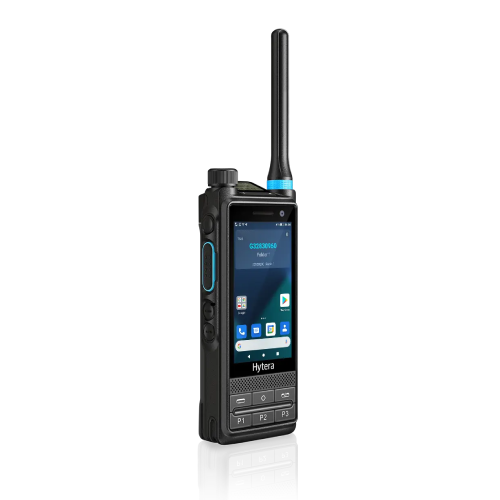

PTC680 Dual-mode Rugged Radio
-
NG # 001437-HW-Hytera-037
Manufactured by:
PTC680 dual-mode rugged radio combines a mission-critical TETRA radio with an Android-based smartphone in a single device.
Specification
Wireless Data Communication Narrow Band 350-475MHz LTE 3GPP LTE; FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28; TDD-LTE: B38/B39/B40/B41 CDMA CDMA 1xRTT BC0; CDMA2000 1xEV-DO BC0 WCDMA B1/B2/B4/B5/B8 GSM 850/900/1800/1900 MHz WLAN 802.11 a/b/g/n/ac，2.4 GHz/5 GHz NFC 13.56 MHz Positioning GPS/BDS/GLONASS/Galileo/QZSS/A-GPS; Position performance for open zone： TTFF（Cold boot）< 1minute; Horizontal accuracy < 5m (95% probable at -130dBm) General Dimensions(H×W×D) mm 140 mm x 60 mm x 29.1 mm Weight 325±5 g Operating System Android 10.0 Peripheral Interface 13PIN Accessory/Charging Port Display Top Screen:0.92” 128x88 Color: black & white; Main Screen: 3.6" 1280x720, Color depth: 24bit; Capacitive, Touch Screen, Gloves Proofed, Passive Stylus Card Slots 2x Nano SIM card; 1x Micro SD card; 1x Encryption card for narrowband Camera Front: 8MP, fixed focus; Rear: 13MP, auto focus Operating Voltage 7.7 V(Rated) Battery 2400 mAh Li-polymer, 7.7V(Rated);4000 mAh Li-polymer, 7.7V(Optional) ransceiver Channel Spacing 25 kHz TX Power 3W(Class 3) ; 1.8W(Class 3L) ; 1W(Class 4) Environmental ESD IEC 61000-4-2 (Level 4), ±8 kV (Contact), ±15 kV (Air) Dust & Water Protection IEC60529- IP68 (2m, 4h), IEC60529- IP66
Description
It harnesses the power of narrowband and broadband technologies to provide mission-critical voice call, photo and video taking, positioning, and more. This innovative radio can communicate with narrowband radios over broadband network such as 2G, 3G, LTE, and WLAN.
