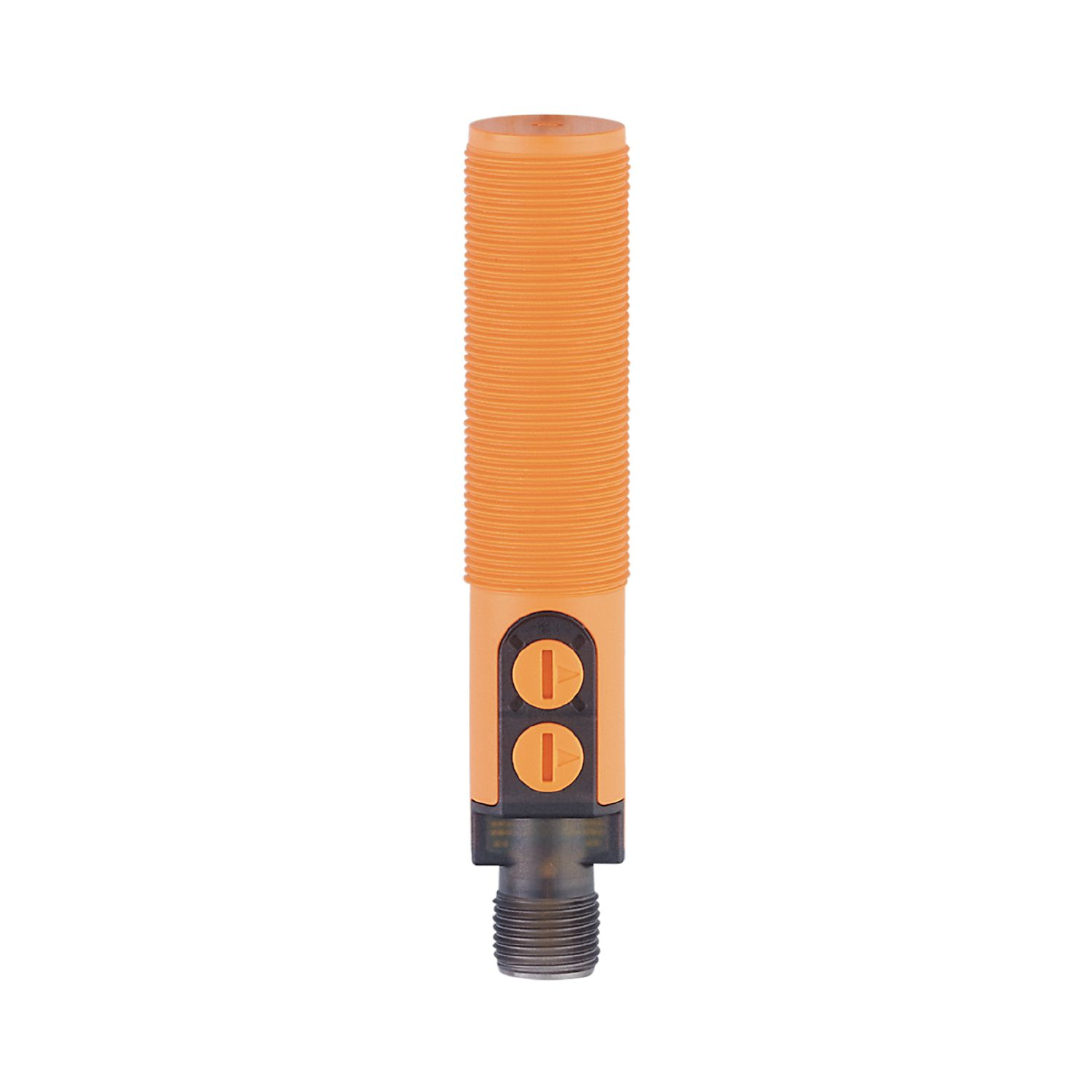

Electrical design PNP Output function normally open / normally closed; (selectable) Sensing range[mm] 0.5...30 Communication interface IO-Link Housing threaded type Dimensions[mm] M18 x 1 / L = 92.5
Application Special feature Optical setting aid Medium temperature[°C] -25...110
Electrical data Operating voltage[V] 10...30 DC Current consumption[mA] < 22 Protection class III Reverse polarity protection yes
Outputs Electrical design PNP Output function normally open / normally closed; (selectable) Max. voltage drop switching output DC[V] 2.5 Permanent current rating of switching output DC[mA] 200 Switching frequency DC[Hz] 30 Short-circuit protection yes Overload protection yes
Detection zone Sensing range[mm] 0.5...30 Sensing range adjustable yes Factory setting sensing range[mm] 15 Real sensing range Sr[mm] 15 ± 10 %
Accuracy / deviations Hysteresis[% of Sr] 1...15 Switch point drift[% of Sr] -10...10
Interfaces Communication interface IO-Link Transmission type COM2 (38,4 kBaud) IO-Link revision 1.1 SDCI standard IEC 61131-9 Profiles Smart Sensor: Process Data Variable; Device Identification SIO mode yes Required master port type A Min. process cycle time[ms] 20 IO-Link functions (acyclical) application specific tag; operating hours counter; normally open / normally closed (configurable); PNP / NPN (parametrierbar); switch point setting; Hysteresis
Operating conditions Ambient temperature[°C] -25...80 Protection IP 65; IP 67; IP 69K
Tests / approvals EMC EN 61000-4-2 8 kV AD / 4 kV CD EN 61000-4-3 10 V/m EN 61000-4-4 2 kV EN 61000-4-6 10 V EN 55011 class B
Vibration resistance DIN EN 60947-5-2 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance DIN EN 60947-5-2 30 g 6 shocks / 11 ms half-sine (x, y, z)
MTTF[years] 1059 UL approval Ta -25...60 °C Enclosure type Type 1 power supply Limited Voltage/Current UL approval no. D003 File number UL E174191
Mechanical data Weight[g] 26.7 Housing threaded type Mounting non-flush mountable Dimensions[mm] M18 x 1 / L = 92.5 Thread designation M18 x 1 Materials PBT; PC; POM
Displays / operating elements Display switching status 1 x LED, yellow operation 1 x LED, green setting aid 8 x LED, green
Optical setting aid yes
Accessories Remarks Electrical connection - plug Connection Connector: 1 x M12; coding: A
