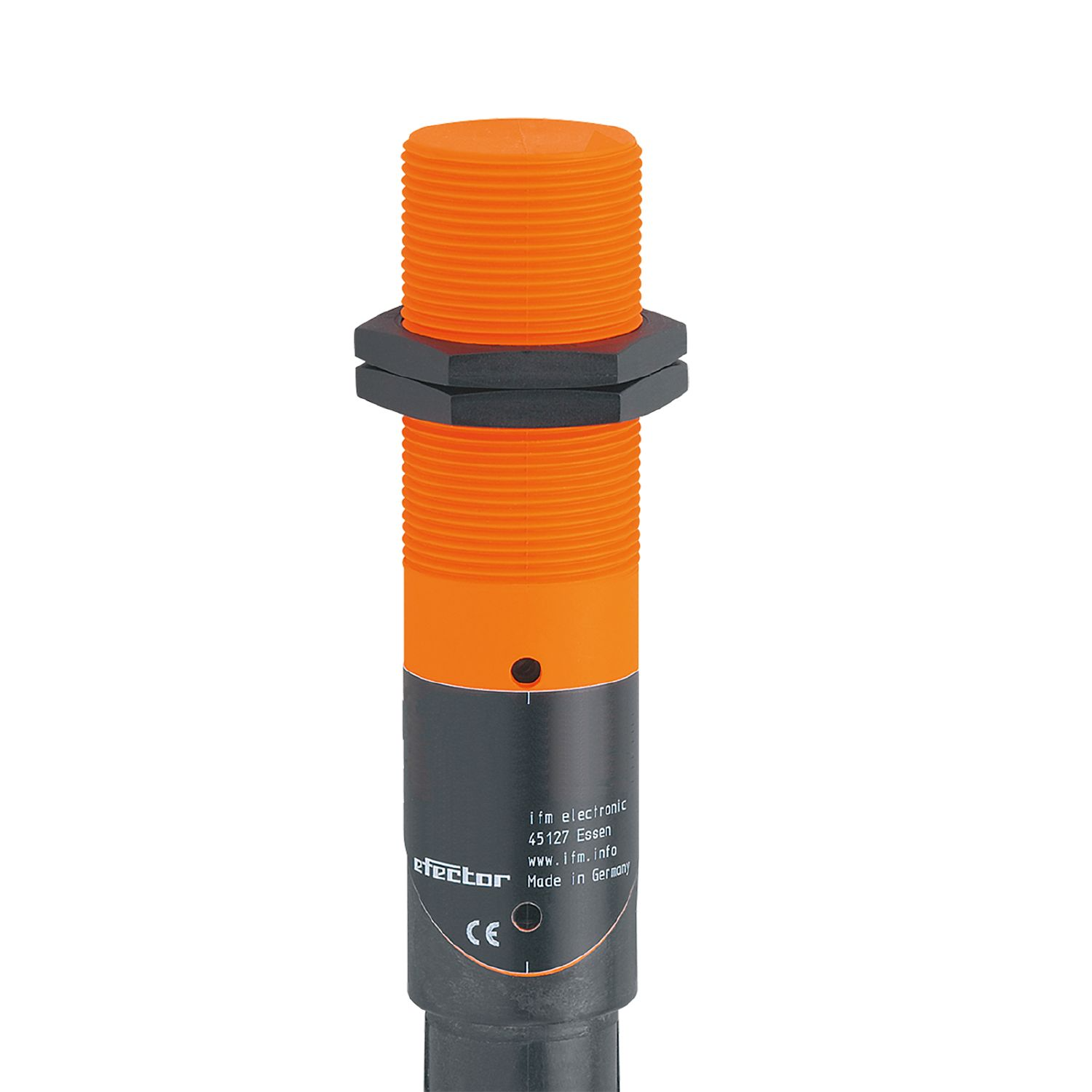

Capacitive sensor KI0024
-
NG # 003728-HW-IFM-O28
Manufactured by:
This
seller generally responds in under 48 hours
Easy setting of the sensing range via potentiometer With combined AC/DC output stage
Two-wire technology
Specification
Output function normally open / normally closed; (selectable) Sensing range[mm] 15 Housing threaded type Dimensions[mm] M30 x 1.5 / L = 125
Electrical data
| Operating voltage[V] | 20...250 AC/DC |
| Protection class | II |
| Reverse polarity protection | no |
Outputs
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC[V] | 8 |
| Max. voltage drop switching output AC[V] | 10 |
| Minimum load current[mA] | 5 |
| Max. leakage current[mA] | 2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC) |
| Permanent current rating of switching output AC[mA] | 200; (for UL application: 250 / 100 DC) |
| Permanent current rating of switching output DC[mA] | 200; (for UL application: 250 AC / 100 DC) |
| Short-time current rating of switching output[mA] | 1500; (20 ms / 0,5 Hz) |
| Switching frequency AC[Hz] | 25 |
| Switching frequency DC[Hz] | 40 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Sensing range[mm] | 15 |
| Sensing range adjustable | yes |
| Factory setting sensing range[mm] | 15 |
| Real sensing range Sr[mm] | 15 ± 10 % |
| Operating distance[mm] | 0...12.1 |
Accuracy / deviations
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
| Hysteresis[% of Sr] | 1...15 |
| Switch point drift[% of Sr] | -15...15 |
Operating conditions
| Ambient temperature[°C] | -25...70 |
| Protection | IP 65 |
| Increased immunity | yes; (increased immunity to conducted radio frequency interference) |
Tests / approvals
| EMC |
| ||
| MTTF[years] | 468 |
Mechanical data
| Weight[g] | 137 |
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] | M30 x 1.5 / L = 125 |
| Thread designation | M30 x 1.5 |
| Materials | PBT; bevelled housing part: PC |
Displays / operating elements
| Display |
|
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
Accessories
| Items supplied |
|
Remarks
| Remarks |
| |
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | terminals: ...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5 |
Description
High noise immunity Output function normally open / normally closed programmable
