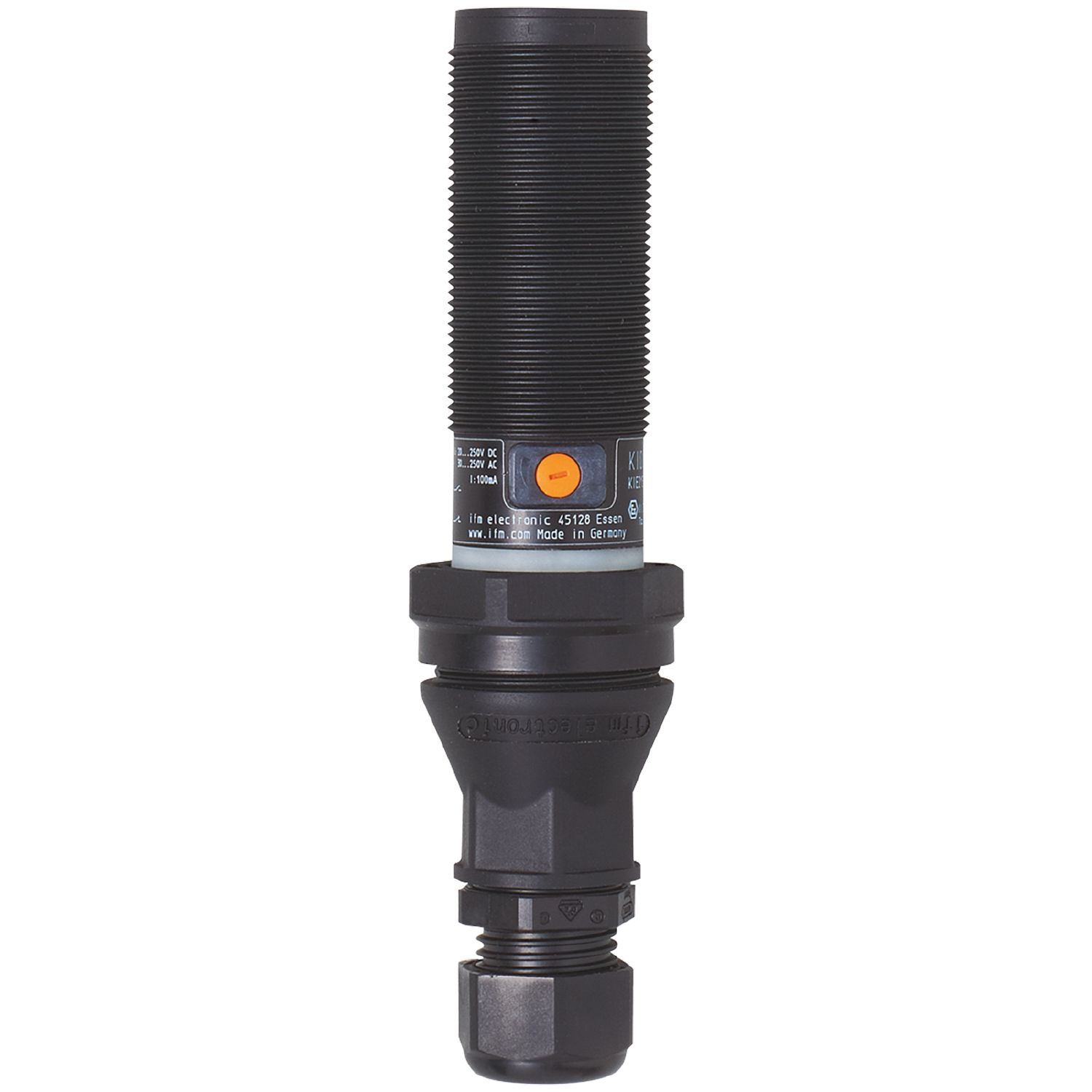

Capacitive sensor KI503A
-
NG # 003732-HW-IFM-O32
Manufactured by:
This
seller generally responds in under 48 hours
For applications in hazardous areas easy setting of the sensing range via potentiometer
clearly visible indication of the switching status
Specification
Electrical design PNP Output function complementary Sensing range[mm] 15 Housing threaded type Dimensions[mm] M30 x 1.5 / L = 150
Electrical data
| Operating voltage[V] | 10...30 DC |
| Current consumption[mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | capacitive |
Outputs
| Electrical design | PNP |
| Output function | complementary |
| Max. voltage drop switching output DC[V] | 2.5 |
| Max. leakage current[mA] | 0.1 |
| Permanent current rating of switching output DC[mA] | 200 |
| Switching frequency DC[Hz] | 10 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] | 15 |
| Sensing range adjustable | yes |
| Factory setting sensing range[mm] | 15 |
| Real sensing range Sr[mm] | 15 ± 10 % |
Accuracy / deviations
| Hysteresis[% of Sr] | 1...15 |
| Switch point drift[% of Sr] | -20...20 |
Operating conditions
| Ambient temperature[°C] | -20...60 |
| Protection | IP 65; IP 67 |
Tests / approvals
| ATEX marking | |||||||||||||
| EMC |
| ||||||||||||
| MTTF[years] | 463 |
Mechanical data
| Weight[g] | 149 |
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] | M30 x 1.5 / L = 150 |
| Thread designation | M30 x 1.5 |
| Materials | PBT; PA |
Displays / operating elements
| Display |
|
Accessories
| Items supplied |
|
Remarks
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | terminals: 0.34...1.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5 |
Description
Direct connection to plant control without switching amplifier complementary output function NO/NC
