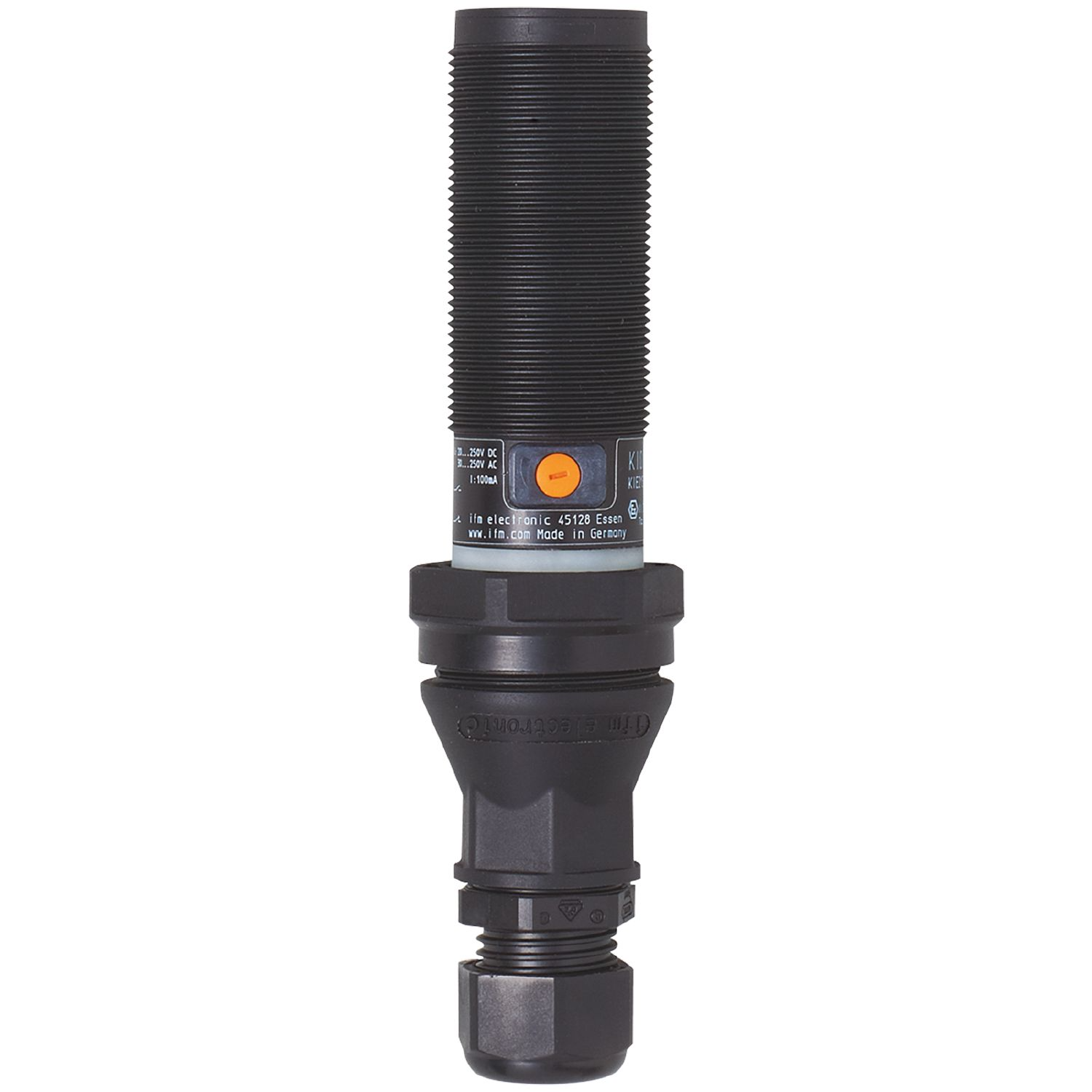

Capacitive sensor KI530A
-
NG # 003733-HW-IFM-O33
Manufactured by:
This
seller generally responds in under 48 hours
For applications in hazardous areas Easy setting of the sensing range via potentiometer
Clearly visible indication of the switching status
Specification
| Operating voltage[V] | 10...30 DC |
| Rated insulation voltage[V] | 60 |
| Current consumption[mA] | < 22 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] | 300 |
| Measuring principle | capacitive |
Outputs
| Electrical design | PNP |
| Output function | complementary |
| Max. voltage drop switching output DC[V] | 2.5 |
| Max. leakage current[mA] | 0.1 |
| Permanent current rating of switching output DC[mA] | 200 |
| Short-time current rating of switching output[mA] | 200 |
| Switching frequency DC[Hz] | 10 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] | 3...26 |
| Sensing range adjustable | yes |
| Real sensing range Sr[mm] | 15 ± 10 % |
Accuracy / deviations
| Hysteresis[% of Sr] | 1...15 |
| Switch point drift[% of Sr] | -20...20 |
Interfaces
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor: Process Data Variable; Device Identification |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] | 20 |
| IO-Link functions (acyclical) | application specific tag; operating hours counter; PNP / NPN (parametrierbar); switch point setting; Hysteresis |
Operating conditions
| Ambient temperature[°C] | -20...60 |
| Protection | IP 65; IP 67 |
Tests / approvals
| ATEX marking | |||||||||||||
| EMC |
| ||||||||||||
| Vibration resistance |
| ||||||||||||
| Shock resistance |
| ||||||||||||
| MTTF[years] | 623 |
Mechanical data
| Weight[g] | 146.4 |
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] | M30 x 1.5 / L = 150 |
| Thread designation | M30 x 1.5 |
| Materials | housing: PA; potentiometer: LCP; PBT |
Displays / operating elements
| Display |
|
Accessories
| Items supplied |
|
Remarks
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | terminals: 0.34...1.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5 |
Description
Direct connection to plant control without switching amplifier Complementary output function NO/NC
