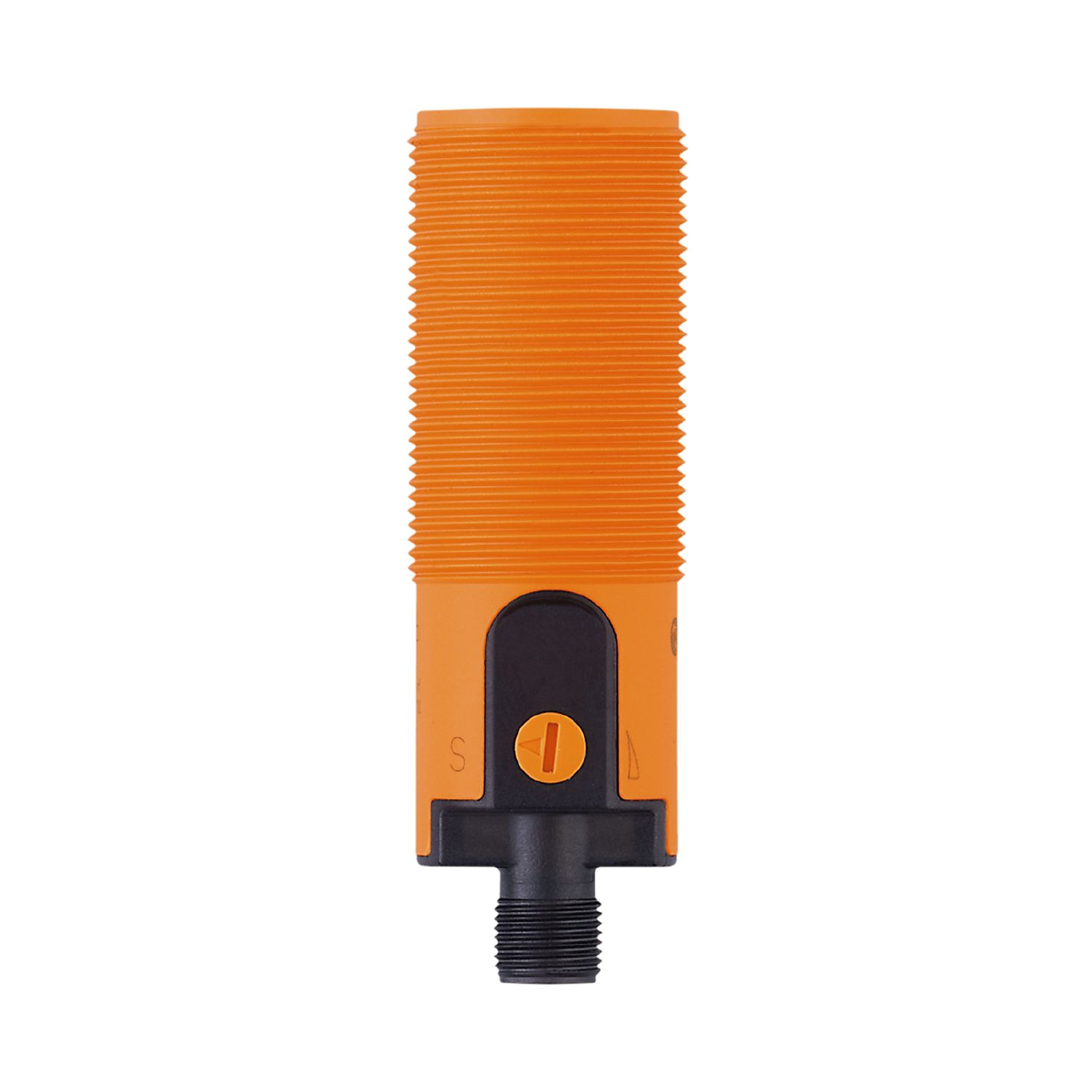

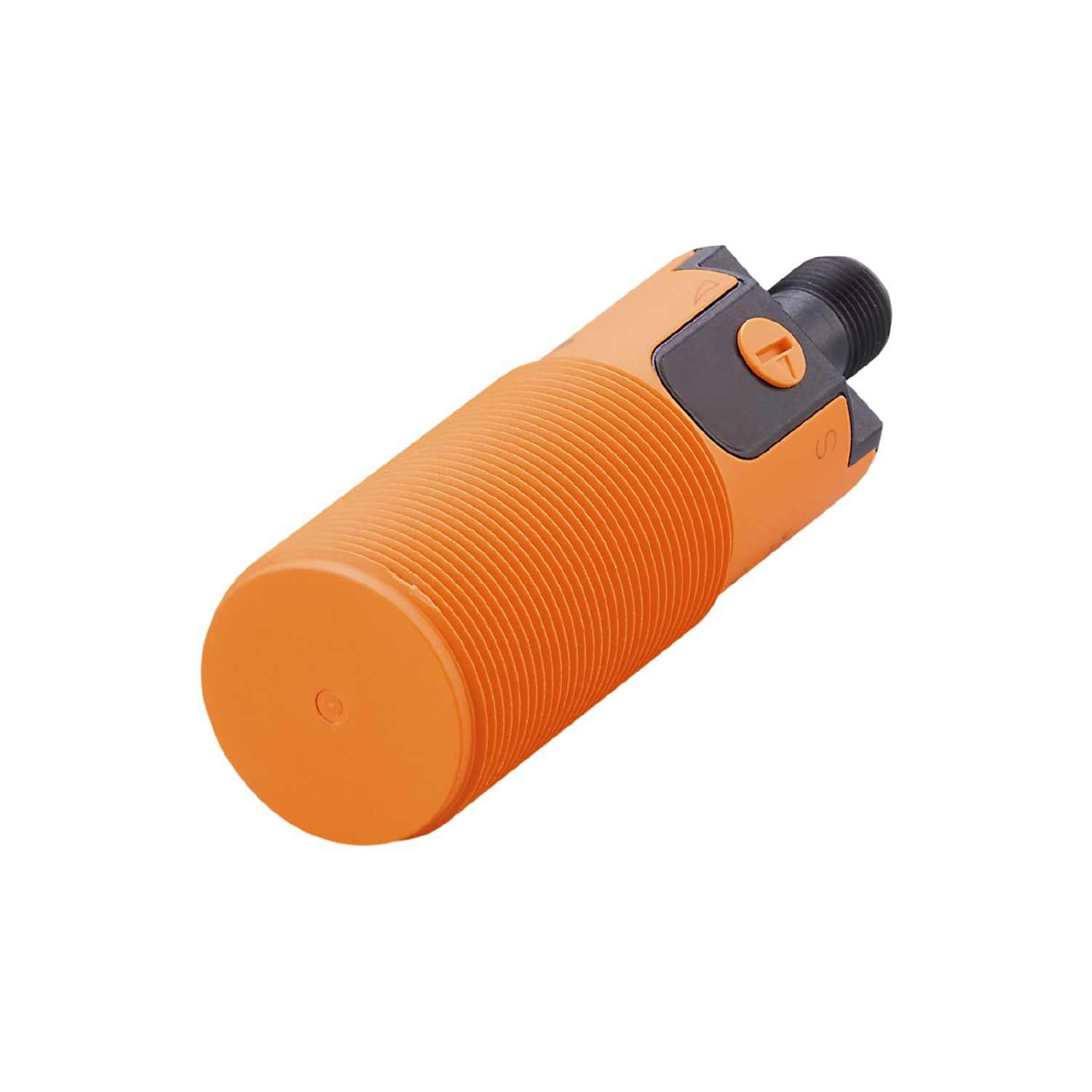

| Electrical design | PNP |
| Output function | normally open |
| Sensing range[mm] | 0.5...24 |
| Communication interface | IO-Link |
| Housing | threaded type |
| Dimensions[mm] | M30 x 1.5 / L = 92 |
Application
| Medium temperature[°C] | -25...110 |
Electrical data
| Operating voltage[V] | 10...30 DC |
| Current consumption[mA] | < 22 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
| Output function | normally open |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 200 |
| Switching frequency DC[Hz] | 30 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] | 0.5...24 |
| Sensing range adjustable | yes |
| Factory setting sensing range[mm] | 15 |
| Real sensing range Sr[mm] | 15 ± 10 % |
Accuracy / deviations
| Hysteresis[% of Sr] | 1...15 |
| Switch point drift[% of Sr] | -15...15 |
Interfaces
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor: Process Data Variable; Device Identification |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] | 20 |
| IO-Link functions (acyclical) | application specific tag; operating hours counter; normally open / normally closed (configurable); PNP / NPN (parametrierbar); switch point setting; Hysteresis |
Operating conditions
| Ambient temperature[°C] | -25...80 |
| Protection | IP 65; IP 67; IP 69K |
Tests / approvals
| EMC | | EN 61000-4-2 | 30 kV AD / 4 kV CD | | EN 61000-4-3 | 10 V/m | | EN 61000-4-4 | 2 kV | | EN 61000-4-6 | 10 V | | EN 55011 | class B |
|
| Vibration resistance | | DIN EN 60947-5-2 | 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
|
| Shock resistance | | DIN EN 60947-5-2 | 30 g 6 shocks / 11 ms half-sine (x, y, z) |
|
| MTTF[years] | 903.84 |
| UL approval | | Ta | -25...60 °C | | Enclosure type | Type 1 | | power supply | Limited Voltage/Current | | UL approval no. | D001 | | File number UL | E174191 |
|
Mechanical data
| Weight[g] | 54.2 |
| Housing | threaded type |
| Mounting | quasi flush |
| Dimensions[mm] | M30 x 1.5 / L = 92 |
| Thread designation | M30 x 1.5 |
| Materials | PBT; PC; POM |
| Tightening torque[Nm] | 8 |
Displays / operating elements
| Display | | switching status | 1 x LED, yellow |
|
Accessories
Remarks
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A |
