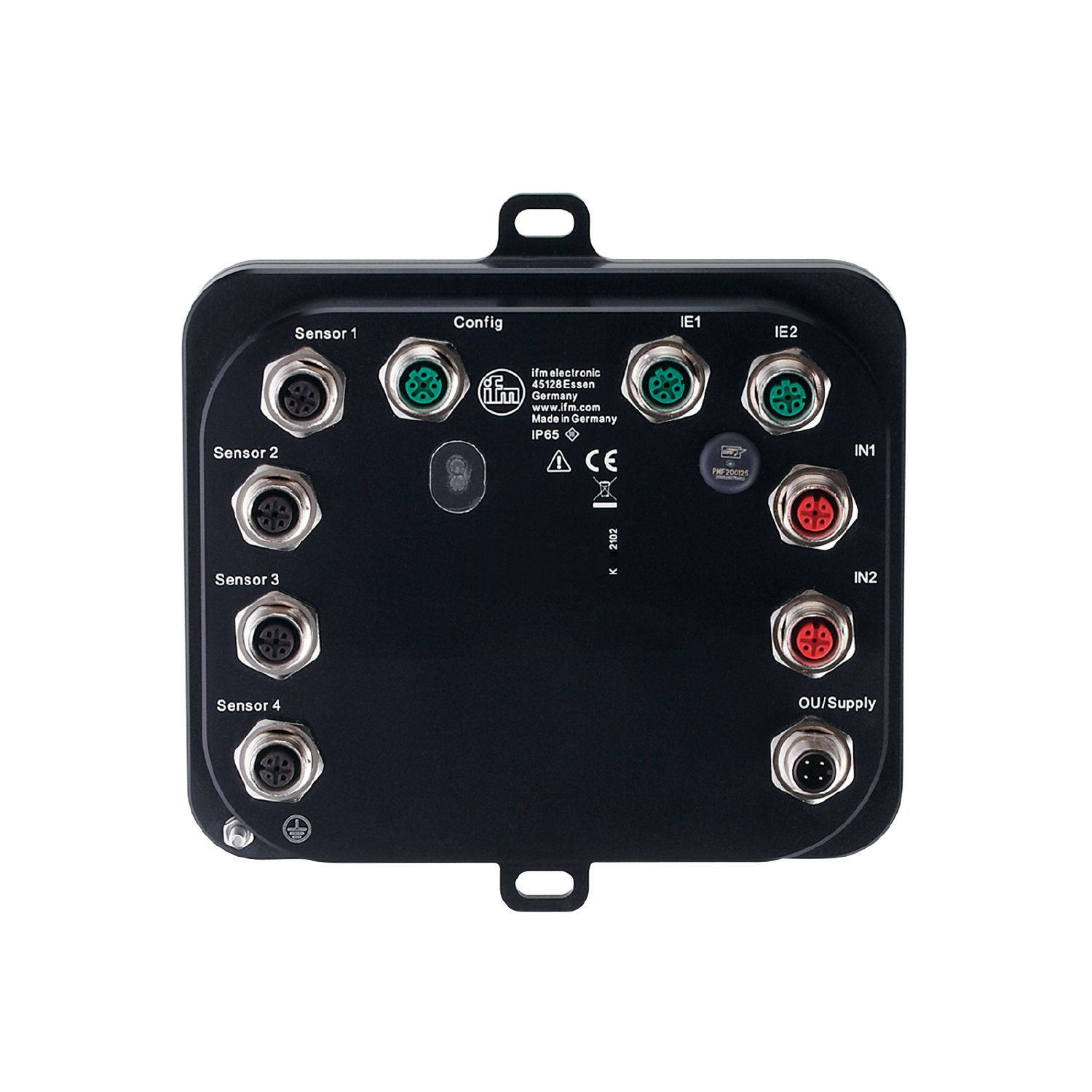

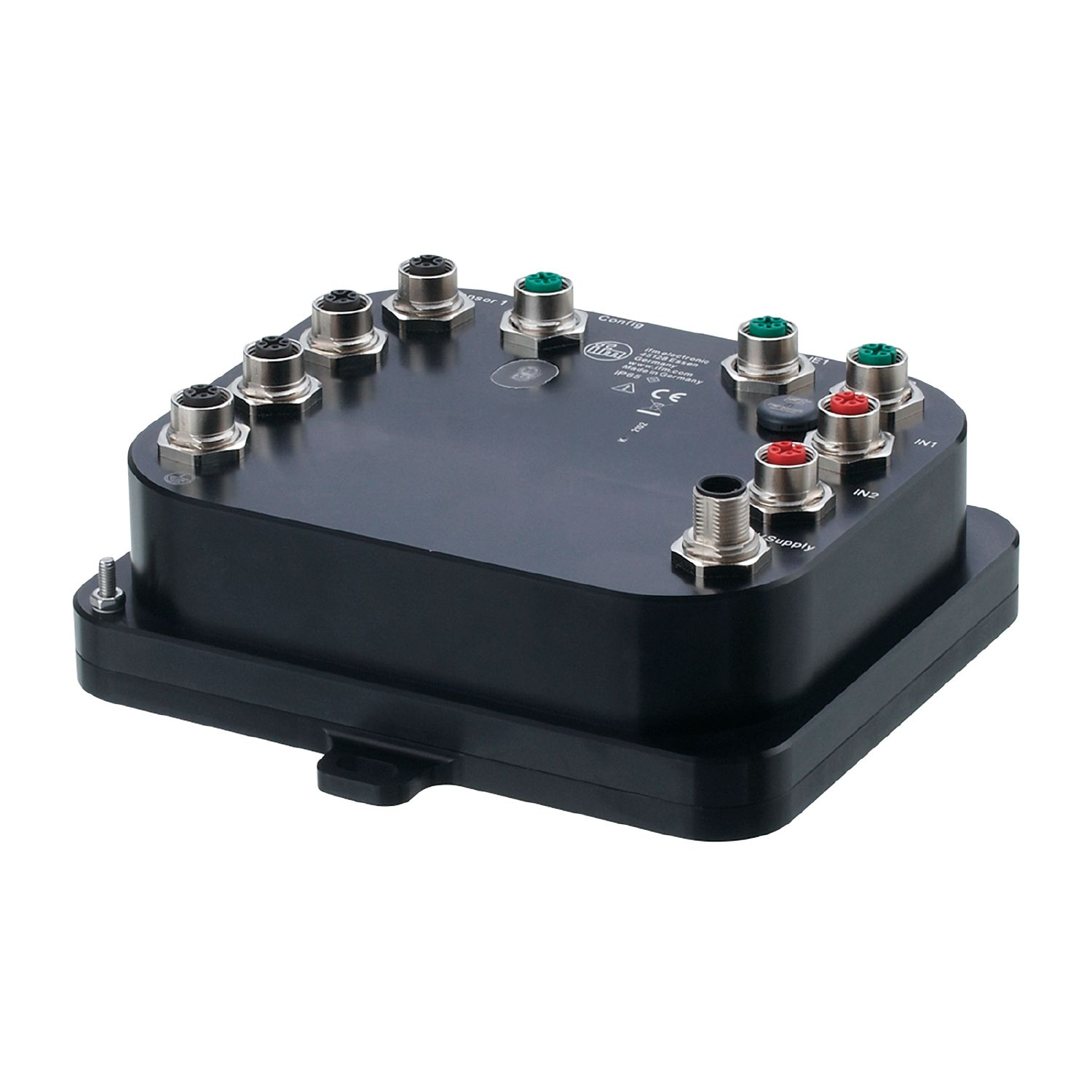

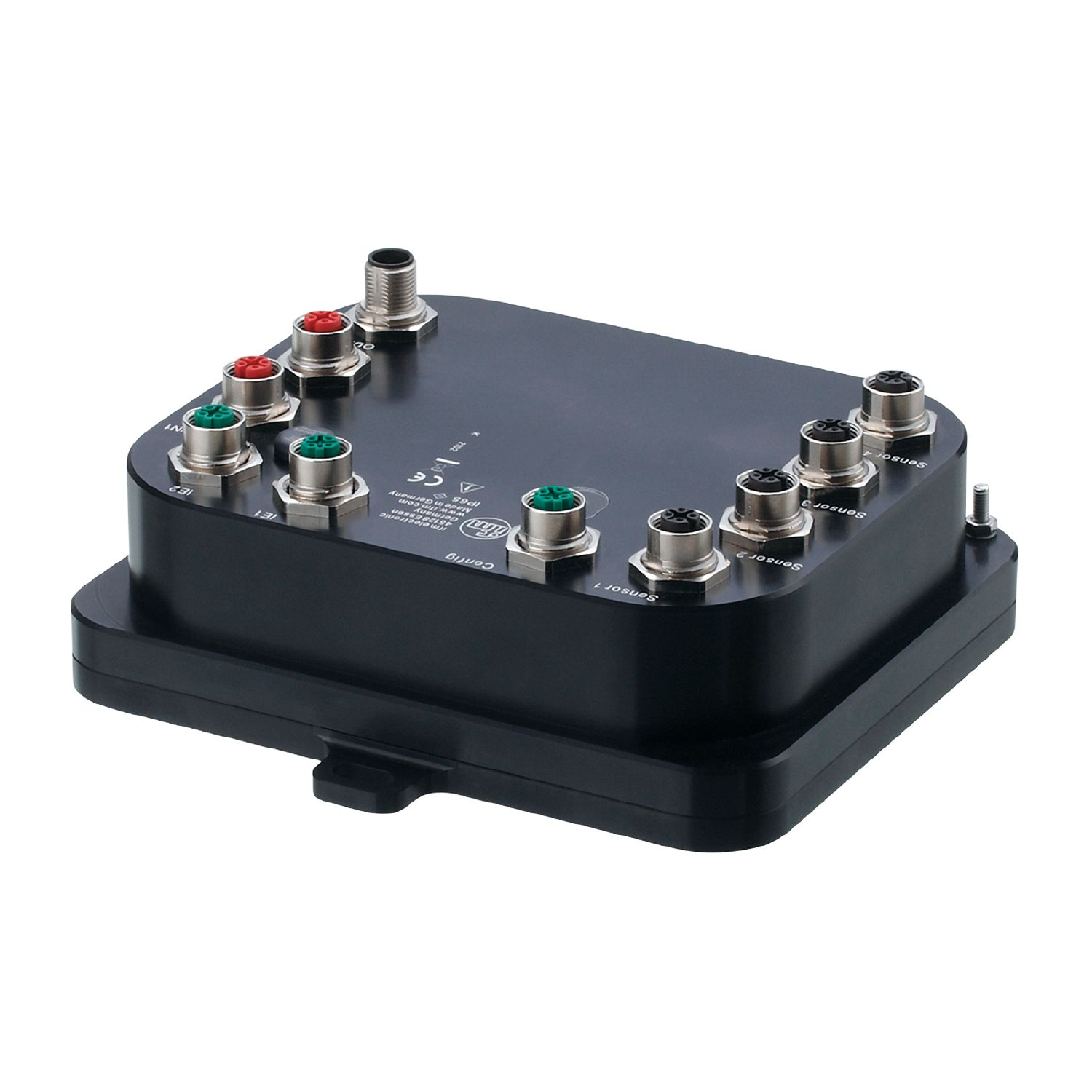

Diagnostic electronics for vibration sensors VSE950
-
NG # 003739-HW-IFM-O39
Manufactured by:
This
seller generally responds in under 48 hours
Robust IP 67 housing for decentralised use Fast, error-free installation and retrofitting thanks to standard M12 connections Six signal inputs collect all relevant data for condition monitoring
Specification
Frequency range[Hz] 0.1...12000 Communication interface Ethernet
Application
| Design | parameter setting via PC software VES004 |
Electrical data
| Operating voltage tolerance[%] | 20 |
| Operating voltage[V] | 24 DC |
| Current consumption[mA] | 200; ((24 V DC)) |
| Protection class | III |
Inputs / outputs
| Total number of inputs and outputs | 8; (configurable) |
| Number of inputs and outputs | Number of digital inputs: 1; Number of analogue inputs: 1; number of dynamic inputs: 4; Number of digital outputs: 2; Number of analogue outputs: 1 |
Inputs
| Total number of inputs | 6 |
| Number of digital inputs | 1 |
| Digital input - frequency range[Hz] | 0,1...100000 |
| Number of analogue inputs | 1; (static) |
| Analogue input (current)[mA] | 0...20 |
| Resolution of analogue input | 12 |
| Number of dynamic inputs | 4 |
| Dynamic input - signal | 0...20 mA |
| Dynamic input - resolution[bit] | 16 |
| Dynamic input - frequency range[Hz] | 0...12000 |
| Dynamic input - sampling rate[kSamples] | 100 |
Outputs
| Total number of outputs | 2 |
| Output signal | switching signal; analogue signal |
| Electrical design | PNP |
| Number of digital outputs | 2; (configurable) |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] | 2 |
| Permanent current rating of switching output DC[mA] | 100 |
| Number of analogue outputs | 1; (configurable) |
| Analogue current output[mA] | 0...22 |
| Max. load[Ω] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Frequency range[Hz] | 0.1...12000 |
Interfaces
| Communication interface | Ethernet |
| Connector type | M12 |
| Protocol | PROFINET |
Operating conditions
| Ambient temperature[°C] | 0...60 |
| Storage temperature[°C] | 0...60 |
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||||
| MTTF[years] | 92 | ||||||||||
| UL approval |
|
Mechanical data
| Weight[g] | 1388.2 |
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] | 175 x 172 x 66.6 |
| Materials | housing: aluminium alloy black anodised EN AW-5083 |
Data memories
| Real-time clock | yes |
Accessories
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
