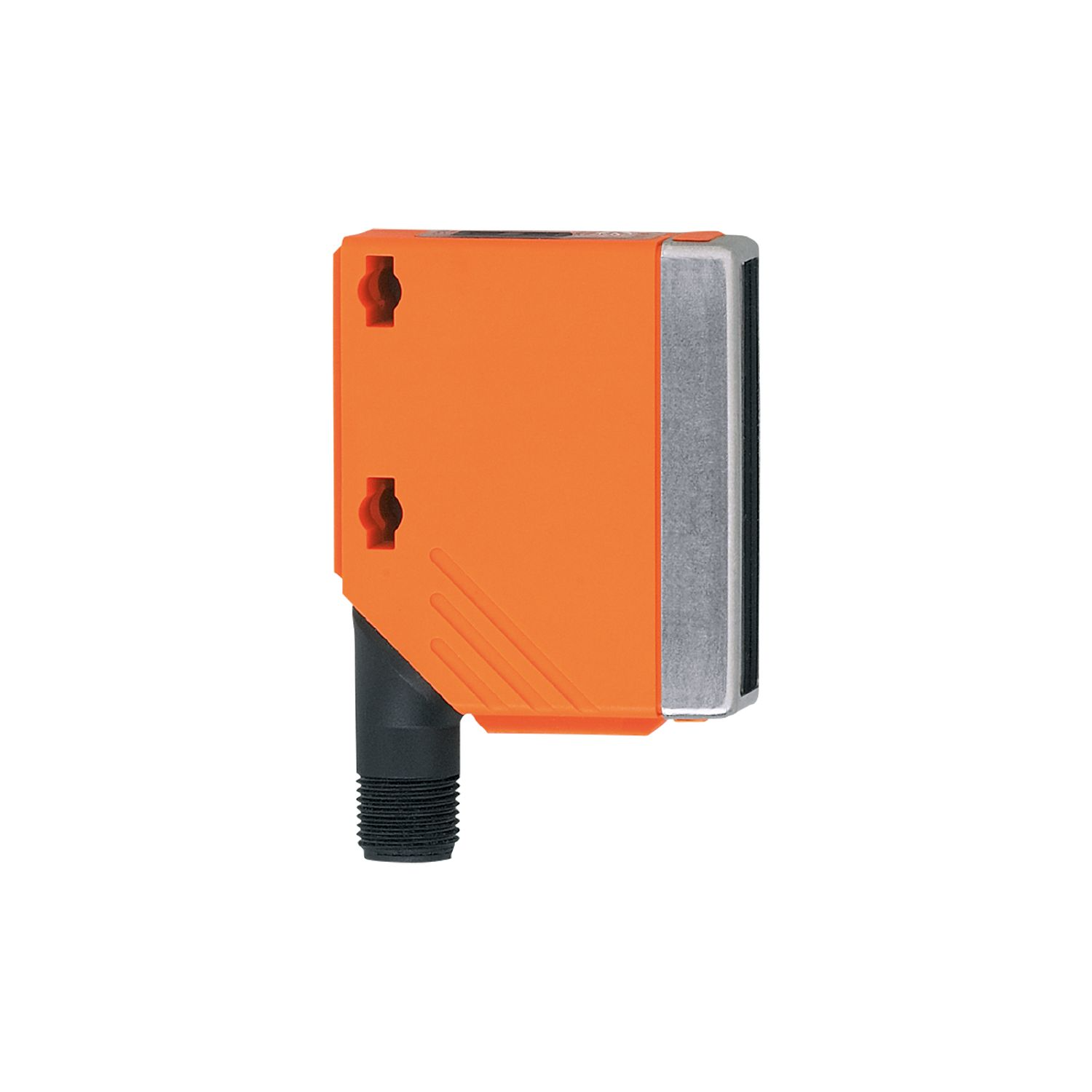

Diffuse reflection sensor with background suppression O5H505
-
NG # 003721-HW-IFM-O21
Manufactured by:
This
seller generally responds in under 48 hours
Very long range Precise background suppression Sensitivity adjustable via teach buttons
Specification
Type of light red light Housing rectangular
Application
| Special feature | Background suppression |
| Function principle | Diffuse reflection sensor |
Electrical data
| Operating voltage[V] | 10...36 DC; ("supply class 2" to cULus) |
| Current consumption[mA] | 25 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 624 |
Outputs
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (complementary) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 200 |
| Switching frequency DC[Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range[mm] | 50...1800; (white paper 200 x 200 mm 90% remission) |
| Range on white object (90 % remission)[mm] | 50...1800 |
| Range on grey object (18 % remission)[mm] | 50...900 |
| Range on black object (6 % remission)[mm] | 50...600 |
| Range adjustable | yes |
| Max. light spot diameter[mm] | 50 |
| Light spot dimensions refer to | Range |
| Background suppression available | yes |
Operating conditions
| Ambient temperature[°C] | -25...60 |
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||
| UL approval |
|
Mechanical data
| Weight[g] | 58.1 | |
| Housing | rectangular | |
| Dimensions[mm] | 56 x 18.2 x 46.8 | |
| Materials | housing: PA; bezel: stainless steel; operator interface: TPU | |
| Lens material |
| |
| Lens alignment | side lens |
Displays / operating elements
| Display |
| ||||
| Teach function | yes | ||||
| Electronic lock | yes |
Remarks
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
Description
Robust housing for use in harsh industrial environments With green LED (readiness for operation)
