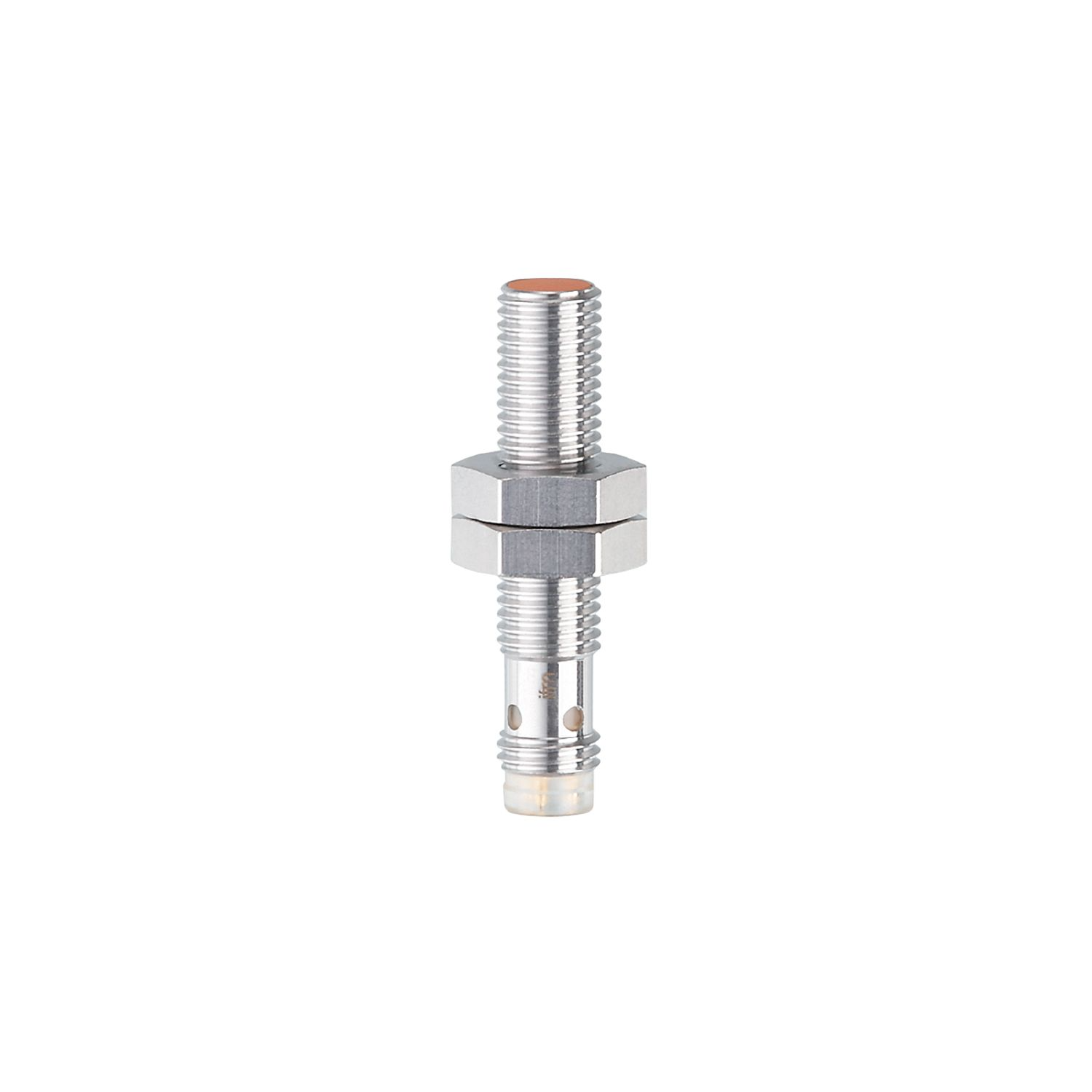

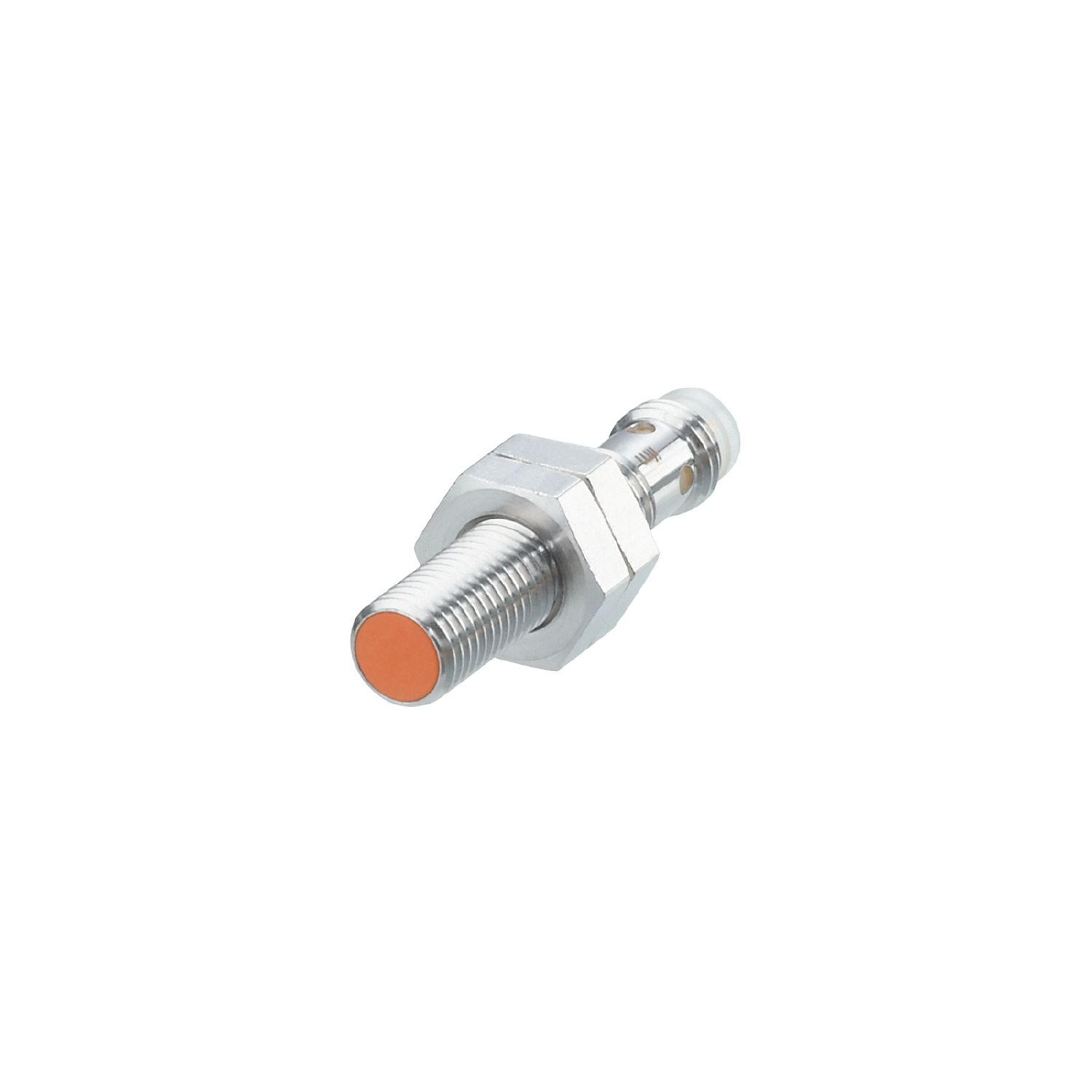

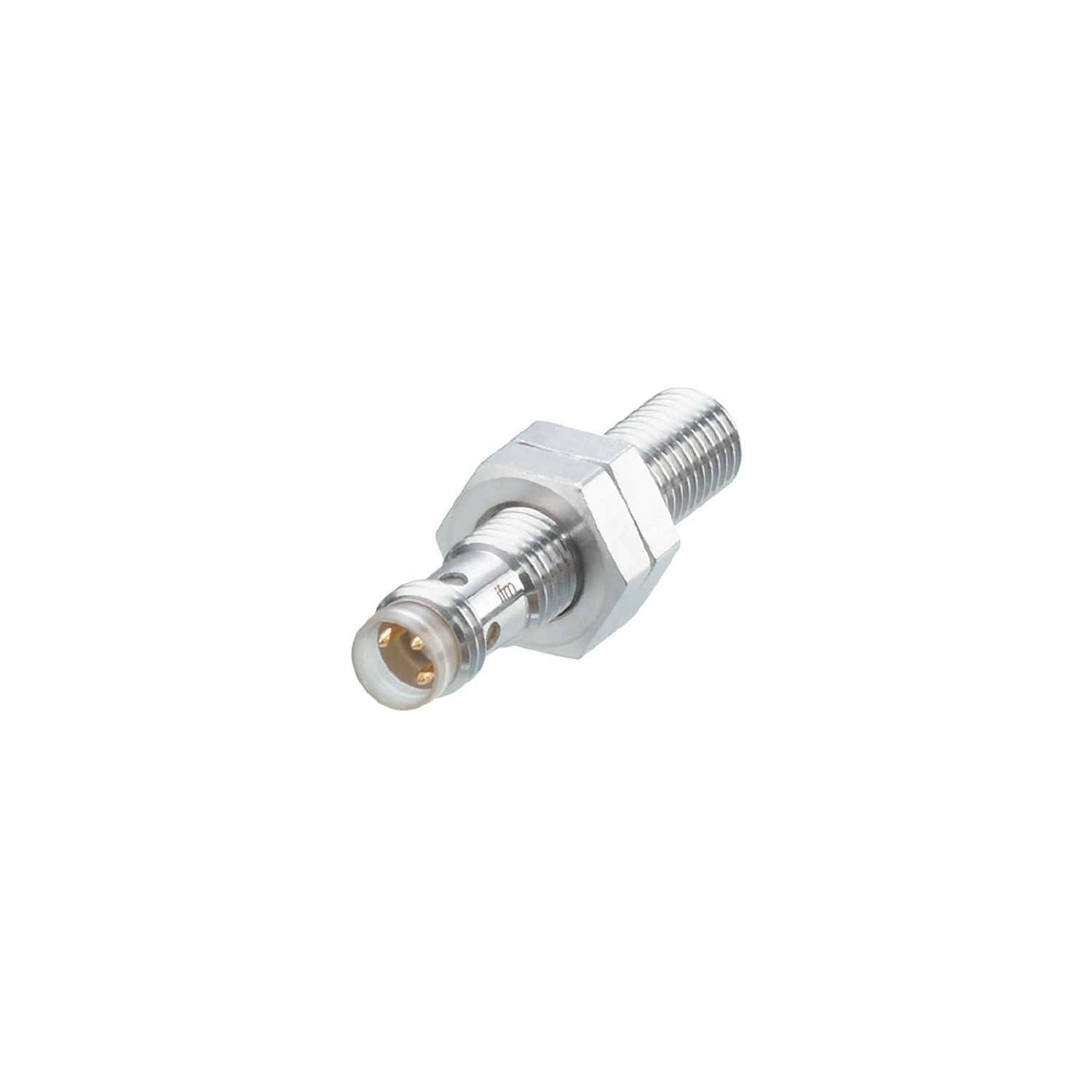

Inductive sensor IE5338
-
NG # 003703-HW-IFM-O03
Manufactured by:
This
seller generally responds in under 48 hours
Particularly short housing For use where space is restricted Clearly visible indication of the switching status
Specification
Product characteristics
| Electrical design | PNP/NPN |
| Output function | normally open |
| Sensing range[mm] | 3 |
| Housing | threaded type |
| Dimensions[mm] | M8 x 1 / L = 40 |
Electrical data
| Operating voltage[V] | 10...30 DC |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
| Output function | normally open |
| Max. voltage drop switching output DC[V] | 3.5 |
| Minimum load current[mA] | 2; (only in 2-wire operation) |
| Max. leakage current[mA] | 0.5; (only in 2-wire operation) |
| Permanent current rating of switching output DC[mA] | 100 |
| Switching frequency DC[Hz] | 800 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] | 3 |
| Real sensing range Sr[mm] | 3 ± 10 % |
| Operating distance[mm] | 0...2.4 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 1...20 |
| Switch point drift[mm] | -10...10 |
Operating conditions
| Ambient temperature[°C] | 0...60 |
| Protection | IP 65; IP 67; (with ifm socket duly screwed on) |
Tests / approvals
| EMC |
| ||||||||||
| MTTF[years] | 1858 | ||||||||||
| Embedded software included | yes | ||||||||||
| UL approval |
|
Mechanical data
| Weight[g] | 16.5 |
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] | M8 x 1 / L = 40 |
| Thread designation | M8 x 1 |
| Materials | brass white bronze coated; sensing face: LCP orange; LED window: PPSU; lock nuts: brass white bronze coated |
| Tightening torque[Nm] | A = 5 mm: 1,5 Nm; B = 2 Nm |
Displays / operating elements
| Display |
|
Accessories
| Items supplied |
|
Remarks
| Pack quantity | 1 pcs. |
