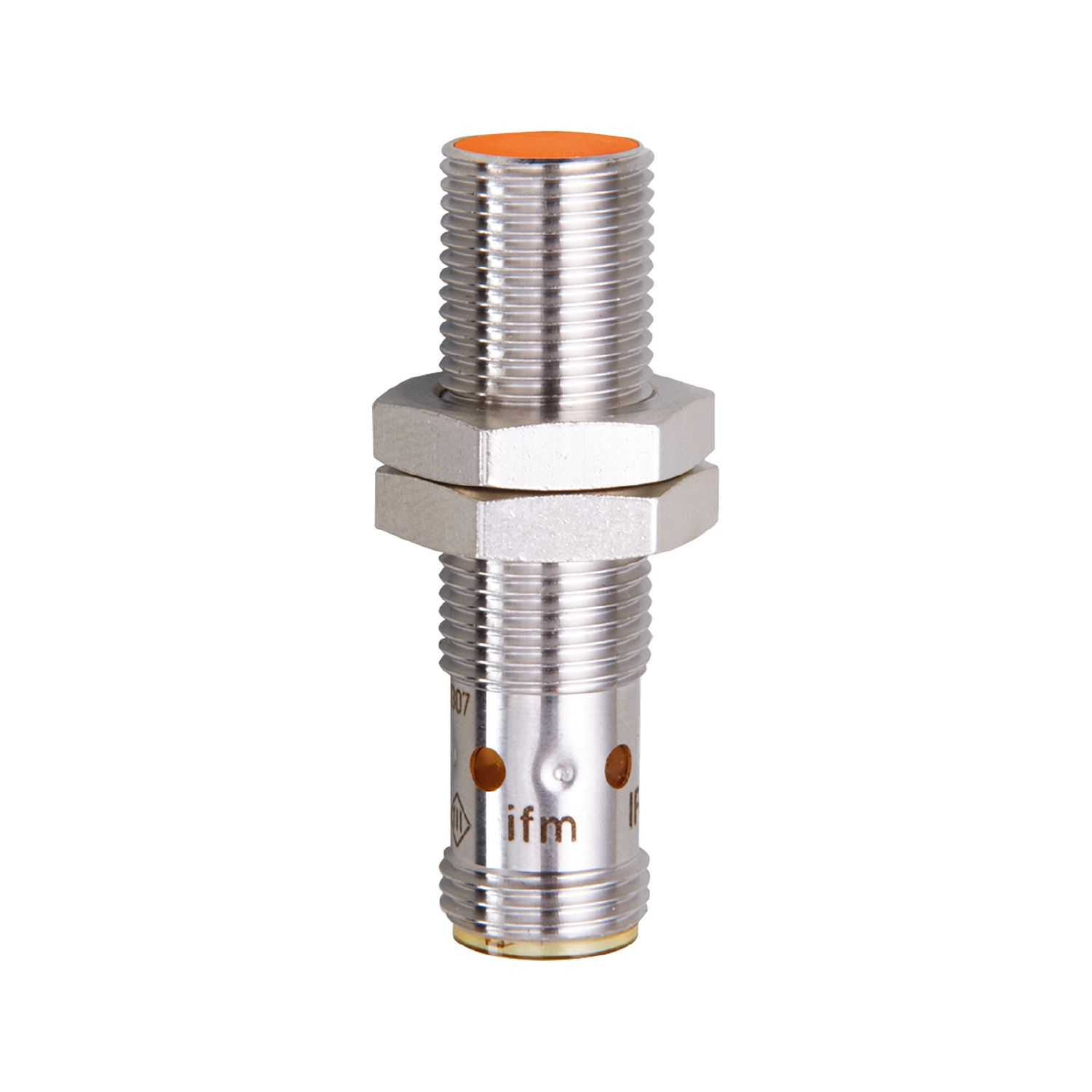

Inductive sensor IFS204
-
NG # 003704-HW-IFM-O04
Manufactured by:
This
seller generally responds in under 48 hours
Particularly short housing for use where space is restricted Robust metal housing for use in harsh industrial environments
Specification
Reverse polarity protection yes
Outputs
| Electrical design | PNP |
| Output function | normally open |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 100 |
| Switching frequency DC[Hz] | 700 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] | 4 |
| Real sensing range Sr[mm] | 4 ± 10 % |
| Operating distance[mm] | 0...3.24 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 3...15 |
| Switch point drift[% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] | -25...70 |
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||||
| MTTF[years] | 1527 | ||||||||||
| Embedded software included | no | ||||||||||
| UL approval |
|
Mechanical data
| Weight[g] | 24.7 |
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] | M12 x 1 / L = 45 |
| Thread designation | M12 x 1 |
| Materials | housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
Displays / operating elements
| Display |
|
Accessories
| Items supplied |
|
Remarks
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
Description
Clearly visible indication of the switching status Very high switching frequency Long sensing range for high uptime
