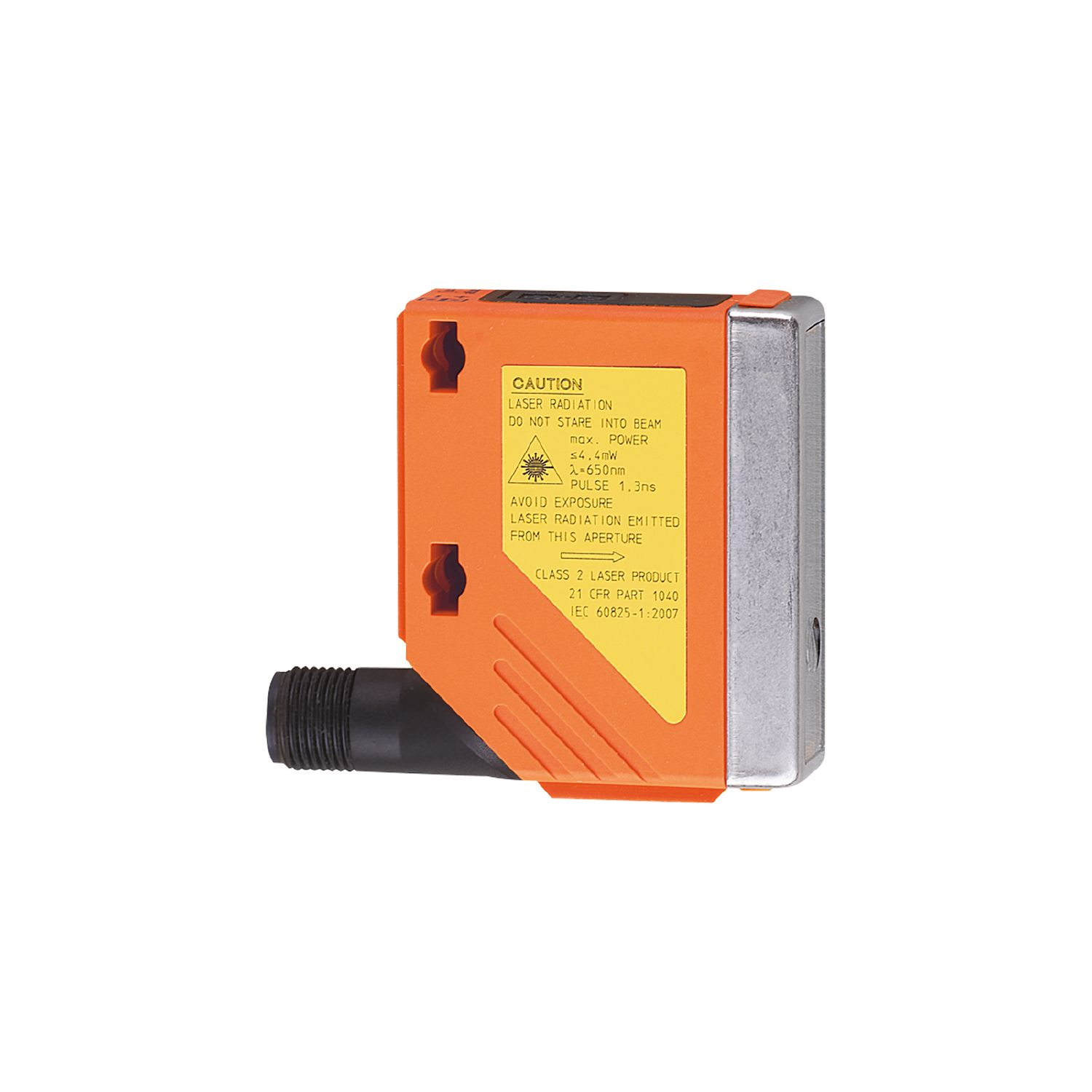

Photoelectric distance sensor O5D100

NG # 003712-HW-IFM-O12

Manufactured by:

This seller generally responds in under 48 hours

Very long range due to time-of-flight measurement Reliable background suppression and colour-independent detection

Specification

Type of light	red light
Laser protection class	2
Housing	rectangular

Application

Special feature

Background suppression

Electrical data

Operating voltage[V]	10...30 DC; ("supply class 2" to cULus)
Current consumption[mA]	75; (24 V)
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length[nm]	650
Typ. lifetime[h]	50000

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs	2
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed; (complementary)
Max. current load per output[mA]	100
Switching frequency DC[Hz]	11
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Max. light spot diameter[mm]

Light spot dimensions refer to

2 m

Detection range hysteresis[%]

< 2.5

Note on monitoring range hysteresis

black 6% remission

Background suppression available

yes

Background suppression[m]

< 20

Measuring/setting range

Measuring range[m]	0.03...2
Sampling rate[Hz]	33

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor - SSP 0	Generic Profiled Sensor
Function	Multiple switching signal
Function	Process data variable

SIO mode

yes

Process data analogue

Process data binary

Min. process cycle time[ms]

6.4

Supported DeviceIDs

Type of operation	DeviceID
default	372

Operating conditions

Ambient temperature[°C]

-25...60

Note on ambient temperature

at ta < -10 °C warm-up is necessary, laser is off

Protection

IP 65; IP 67

Max. immunity to extraneous light[klx]

10; (on the object)

Tests / approvals

EMC

EN 60947-5-2

Vibration resistance

DIN EN 60068-2-6

10 g (10...55 Hz) / 120 min. per axis (x, y, z)

Shock resistance

DIN EN 60068-2-27

50 g 6 shocks / 11 ms half-sine (x, y, z)

Laser protection class

Notes on laser protection

Caution:	laser light
Power:	<= 4,0 mW
Wave length:	650 nm
pulse:	1,3 ns
Do not stare into beam.
Avoid exposure to the laser light.
laser class:	2
	EN / IEC60825-1:2007
	EN / IEC60825-1:2014
	Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.

MTTF[years]

151

Mechanical data

Weight[g]	61.6
Housing	rectangular
Dimensions[mm]	56 x 18.2 x 46.8
Materials	housing: PA; bezel: stainless steel; operator interface: TPU; lens: PMMA
Lens alignment	side lens

Displays / operating elements

Display

switching status	LED, yellow switching output PIN 4
operation	LED, green
display	alphanumeric display, 3-digit

Display unit

Remarks

Pack quantity

1 pcs.

Electrical connection

Connection

Connector: 1 x M12; coding: A

Description

With display and pushbuttons for precise switch point setting Oblique angle to the object possible Reliable detection of glossy surfaces
