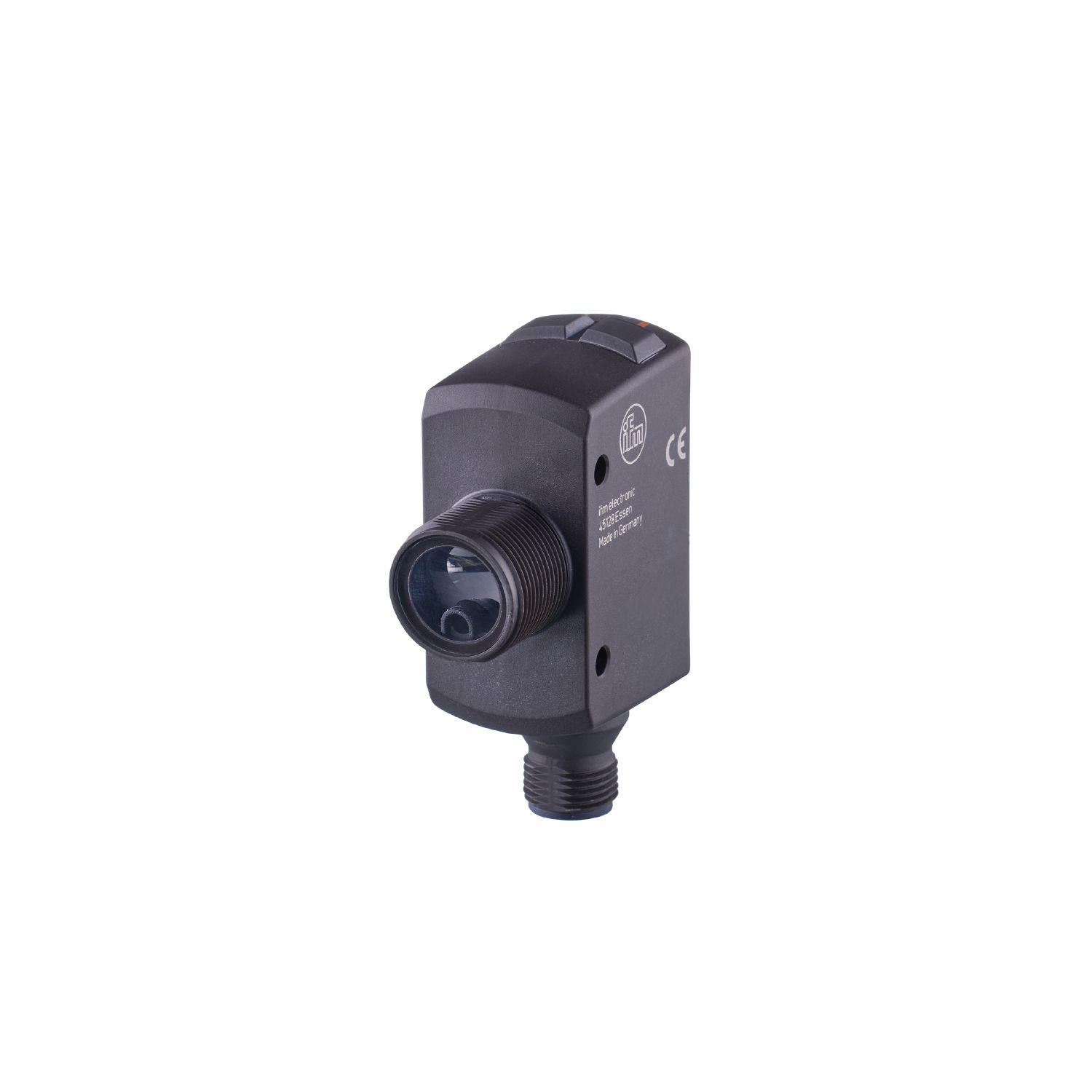

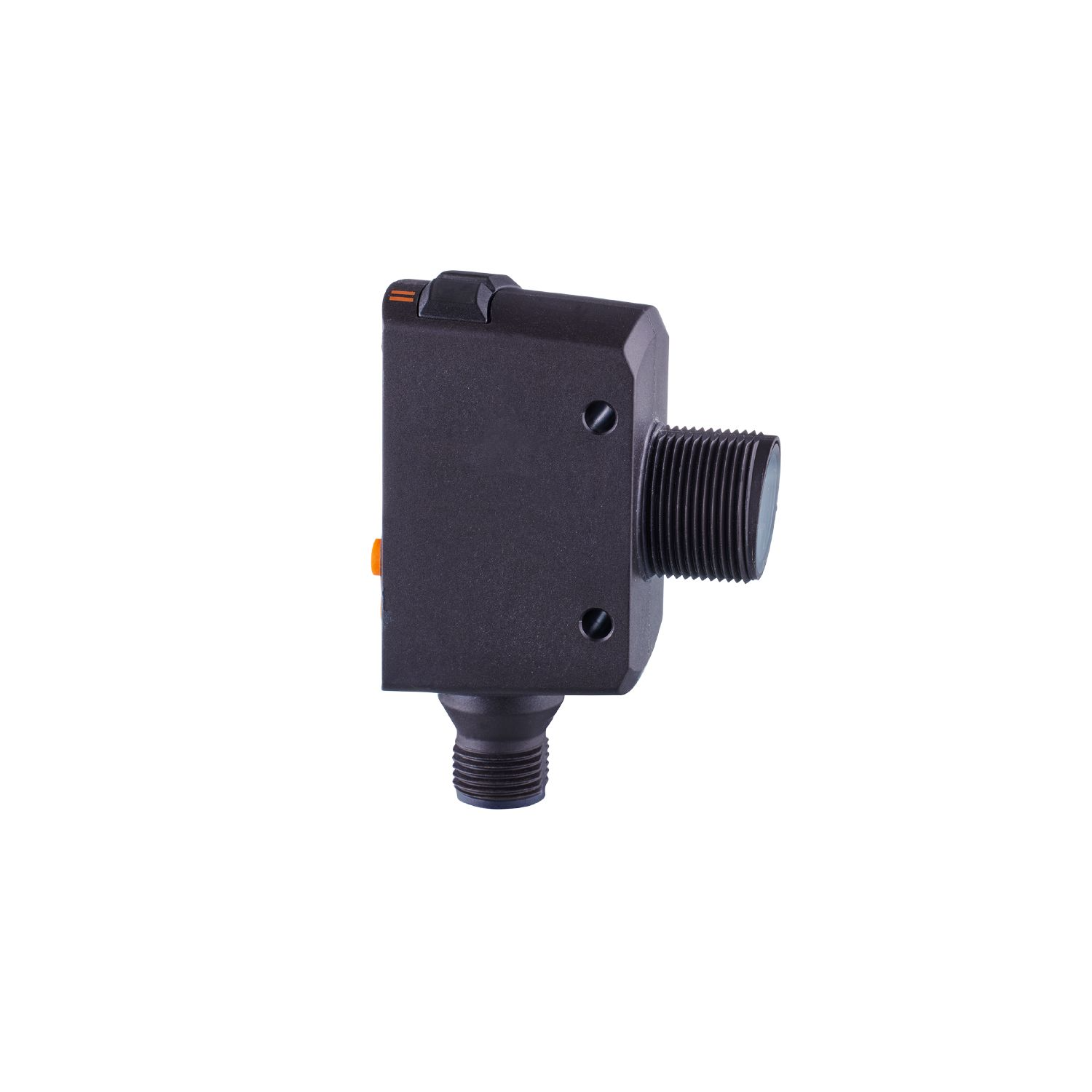

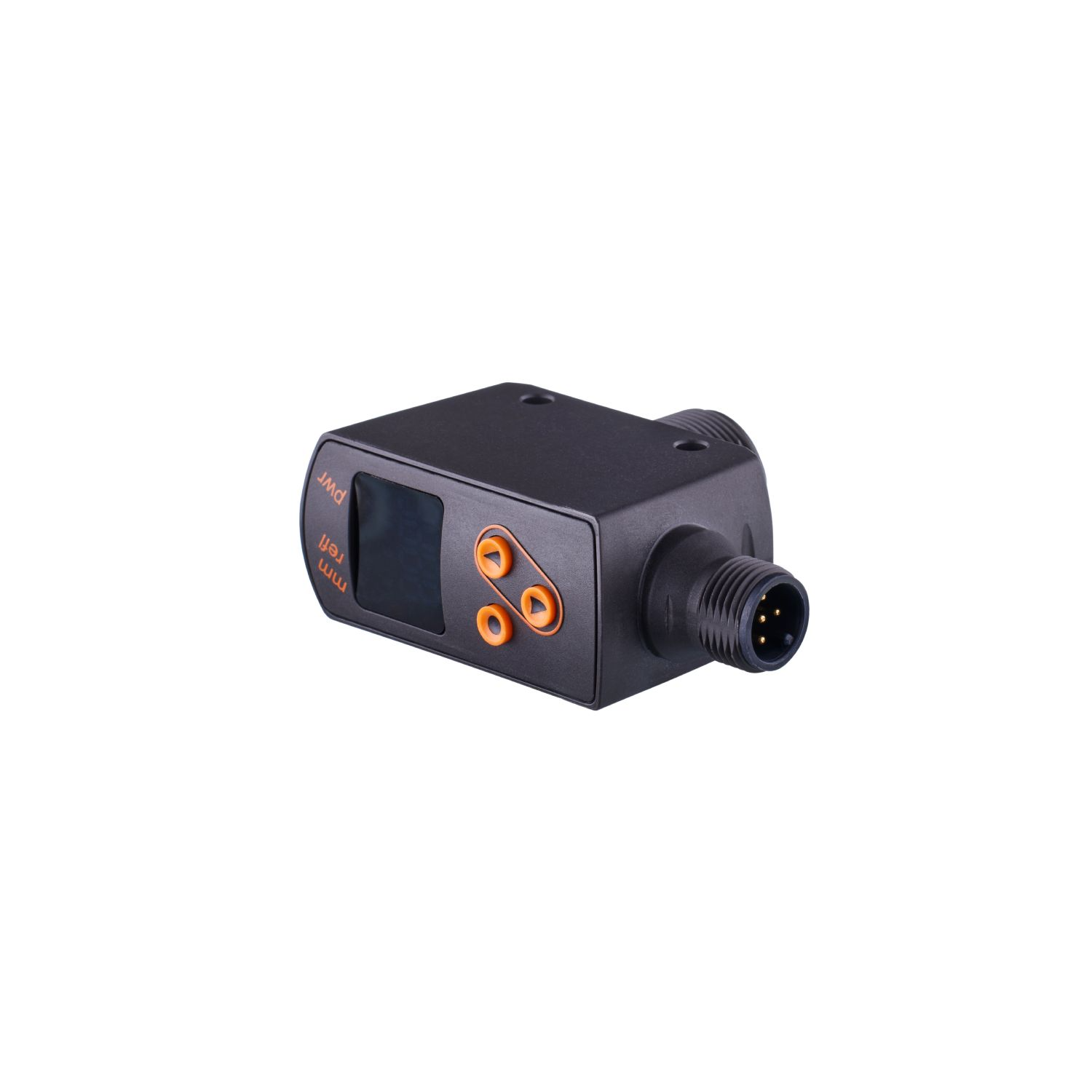

Photoelectric distance sensor OGD250
-
NG # 003708-HW-IFM-O08
Manufactured by:
This
seller generally responds in under 48 hours
Small compact design with standard M18 thread and PMD time-of-flight technology Measurement to the nearest millimetre and monitoring of distances in the running process
Specification
Type of light red light Laser protection class 1 Housing rectangular with M18 thread
Electrical data
| Operating voltage[V] | 10...30 DC; ("supply class 2" to cULus) |
| Current consumption[mA] | 45; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 650 |
Inputs
| Inputs | Laser On/ Off |
Outputs
| Electrical design | PNP/NPN; (parameterisable) |
| Output function | 2 x normally open / normally closed; (parameterisable) |
| Max. current load per output[mA] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Operating mode: FINE | |
|---|---|
| Switching frequency DC[Hz] | 20 |
| Operating mode: STD | |
|---|---|
| Switching frequency DC[Hz] | 40 |
| Operating mode: FAST | |
|---|---|
| Switching frequency DC[Hz] | 60 |
Detection zone
| Max. light spot diameter[mm] | 5 |
| Light spot dimensions refer to | at maximum range |
| Background suppression[m] | < 20 |
Measuring/setting range
| Setting range object reflectivity[%] | 6...900; (reflectivity; 6 % black paper; 100 % white paper) |
| Operating mode: FINE | |
|---|---|
| Measuring range[m] | 0.05...2 |
| Sampling rate[Hz] | 60 |
| Operating mode: STD | |
|---|---|
| Measuring range[m] | 0.05...2 |
| Sampling rate[Hz] | 120 |
| Operating mode: FAST | |
|---|---|
| Measuring range[m] | 0.05...1 |
| Sampling rate[Hz] | 180 |
Software / programming
| Parameter setting options | Distance / reflectivity; hysteresis / window; sequence modulation to avoid mutual interference between up to 5 similar devices; sensitivity |
Interfaces
| Communication interface | IO-Link | ||||||||||||||
| Transmission type | COM2 (38,4 kBaud) | ||||||||||||||
| IO-Link revision | 1.1.3 | ||||||||||||||
| SDCI standard | IEC 61131-9 | ||||||||||||||
| SIO mode | yes | ||||||||||||||
| Required master port type | A | ||||||||||||||
| Min. process cycle time[ms] | 5 | ||||||||||||||
| IO-Link process data (cyclical) |
| ||||||||||||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter; switching cycles counter | ||||||||||||||
| Supported DeviceIDs |
| ||||||||||||||
| Note |
|
| Default: OGD250 | |||||||
|---|---|---|---|---|---|---|---|
| Profiles |
| ||||||
| OGD580 / OGD581 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Profiles |
| ||||||||||
| OGD582 / OGD583 | |||||||
|---|---|---|---|---|---|---|---|
| Profiles |
| ||||||
| OGD585 / OGD586 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Profiles |
| ||||||||||
| OGD592 / OGD593 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Profiles |
| ||||||||||
| OGD596 / OGD597 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Profiles |
| ||||||||||
Operating conditions
| Ambient temperature[°C] | -25...55 | ||
| Note on ambient temperature |
| ||
| Storage temperature[°C] | -30...80 | ||
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
| ||||||||||
| Laser protection class | 1 | ||||||||||
| Notes on laser protection |
| ||||||||||
| MTTF[years] | 319 | ||||||||||
| UL approval |
|
Mechanical data
| Weight[g] | 52.06 |
| Housing | rectangular with M18 thread |
| Dimensions[mm] | 61.7 x 22.5 x 45.2 |
| Thread designation | M18 x 1 |
| Materials | housing: PPSU; ABS; PMMA; PBT / PC; EPDM; front pane: PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display |
| ||||
| Operating elements |
|
Accessories
| Items supplied |
|
Remarks
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A |
