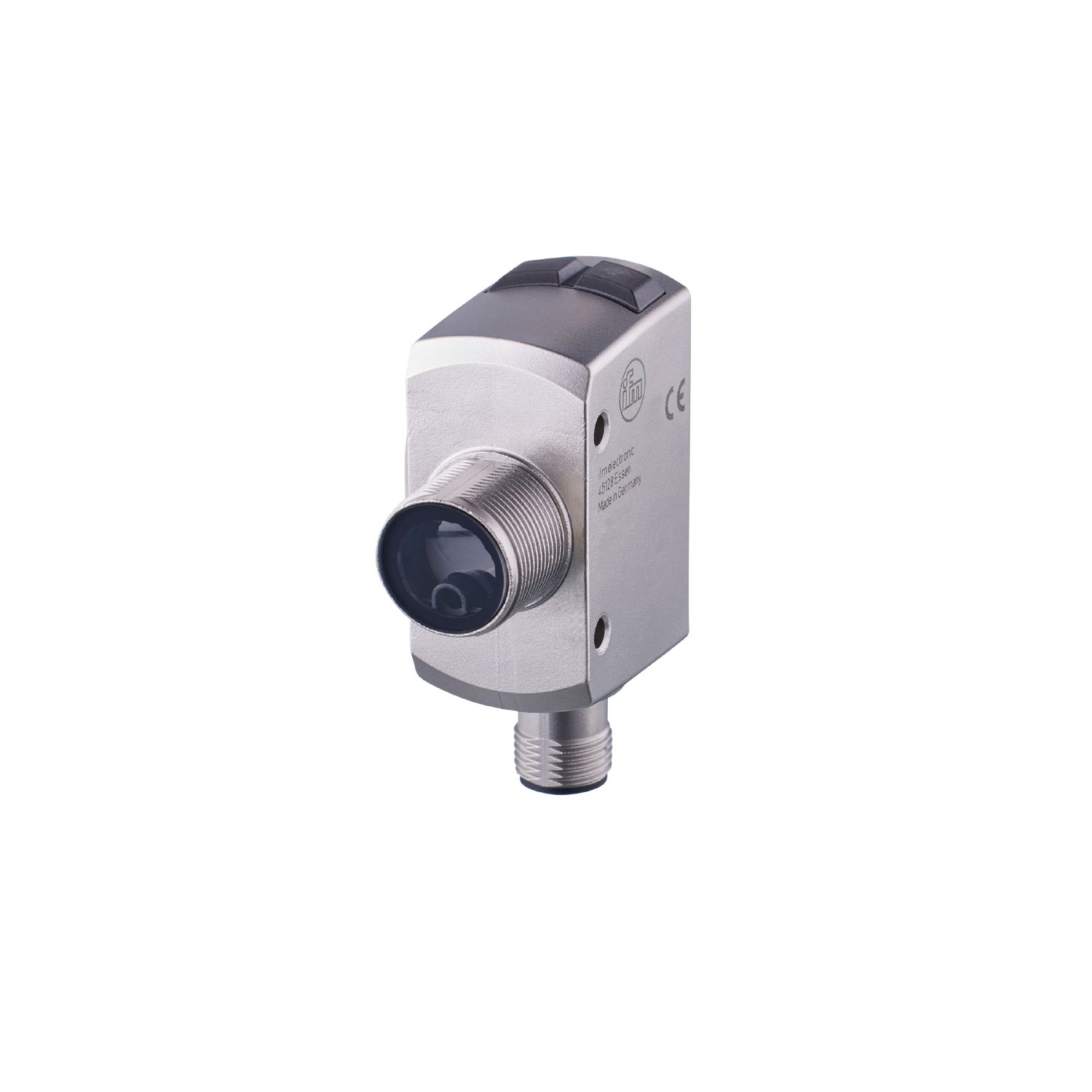

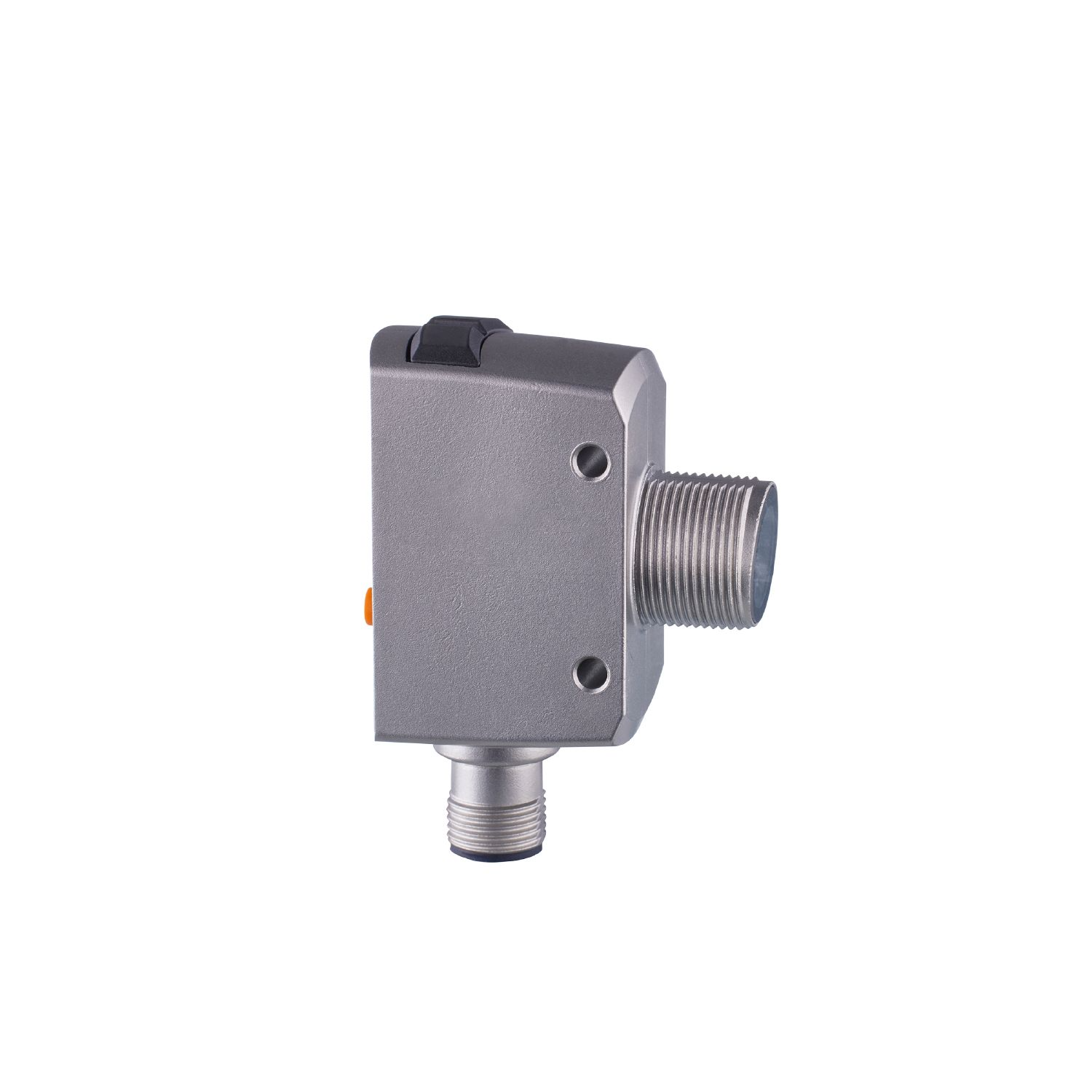

Photoelectric distance sensor OGD550

  • NG # 003709-HW-IFM-O09

Manufactured by:

This seller generally responds in under 48 hours

Small compact design with standard M18 thread and PMD time-of-flight technology Measurement to the nearest millimetre and monitoring of distances in the running process

Add to favorites | Compare this product

Specification

Type of lightred light
Laser protection class1
Housingrectangular with M18 thread

Electrical data

Operating voltage[V]10...30 DC; ("supply class 2" to cULus)
Current consumption[mA]45; (24 V)
Protection classIII
Reverse polarity protectionyes
Type of lightred light
Wave length[nm]650

Inputs

InputsLaser On/ Off

Outputs

Electrical designPNP/NPN; (parameterisable)
Output function2 x normally open / normally closed; (parameterisable)
Max. current load per output[mA]100
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Operating mode: FINE
Switching frequency DC[Hz]20
Operating mode: STD
Switching frequency DC[Hz]40
Operating mode: FAST
Switching frequency DC[Hz]60

Detection zone

Max. light spot diameter[mm]5
Light spot dimensions refer toat maximum range
Background suppression[m]< 20

Measuring/setting range

Setting range object reflectivity[%]6...900; (reflectivity; 6 % black paper; 100 % white paper)
Operating mode: FINE
Measuring range[m]0.05...2
Sampling rate[Hz]60
Operating mode: STD
Measuring range[m]0.05...2
Sampling rate[Hz]120
Operating mode: FAST
Measuring range[m]0.05...1
Sampling rate[Hz]180

Software / programming

Parameter setting optionsDistance / reflectivity; hysteresis / window; sequence modulation to avoid mutual interference between up to 5 similar devices; sensitivity

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1.3
SDCI standardIEC 61131-9
SIO modeyes
Required master port typeA
Min. process cycle time[ms]5
IO-Link process data (cyclical)
functionbit length
process value2 x 16
device status4
binary switching information2
IO-Link functions (acyclical)application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs
Type of operationDeviceID
Default: OGD5501581
OGD580 / OGD581925
OGD582 / OGD583926
OGD585 / OGD5861065
OGD592 / OGD5931012
OGD596 / OGD5971066
Note
For further information please see the IODD PDF file under "Downloads"
Default: OGD550
Profiles
Common - I&DIdentification and Diagnosis
FunctionLocator
FunctionProductURI
OGD580 / OGD581
Profiles
Smart Sensor - SSP 0Generic Profiled Sensor
FunctionDevice identification
FunctionProcess data variable
FunctionDevice diagnosis
FunctionTeach channel
OGD582 / OGD583
Profiles
FunctionDevice identification
FunctionProcess data variable
FunctionDevice diagnosis
OGD585 / OGD586
Profiles
Smart Sensor - SSP 0Generic Profiled Sensor
FunctionDevice identification
FunctionProcess data variable
FunctionDevice diagnosis
FunctionTeach channel
OGD592 / OGD593
Profiles
Smart Sensor - SSP 0Generic Profiled Sensor
FunctionDevice identification
FunctionProcess data variable
FunctionDevice diagnosis
FunctionTeach channel
OGD596 / OGD597
Profiles
Smart Sensor - SSP 0Generic Profiled Sensor
FunctionDevice identification
FunctionProcess data variable
FunctionDevice diagnosis
FunctionTeach channel

Operating conditions

Ambient temperature[°C]-25...60
Note on ambient temperature
In ambient temperatures < -10 °C a warm-up time is necessary.
Laser is off.
Storage temperature[°C]-30...80
ProtectionIP 65; IP 67

Tests / approvals

EMC
EN 60947-5-2
Laser protection class1
Notes on laser protection
Caution:laser light
laser class:1
 EN / IEC60825-1:2007
 EN / IEC60825-1:2014
 Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.
MTTF[years]319
UL approval
Ta-25...60 °C
Enclosure typeType 1
power supplyClass 2
File number ULE174191

Mechanical data

Weight[g]133.13
Housingrectangular with M18 thread
Dimensions[mm]61.7 x 22.5 x 45.2
Thread designationM18 x 1
Materialshousing: stainless steel (316L/1.4404); PPSU; ABS; PMMA; PBT / PC; EPDM; front pane: PMMA
Lens alignmentside lens

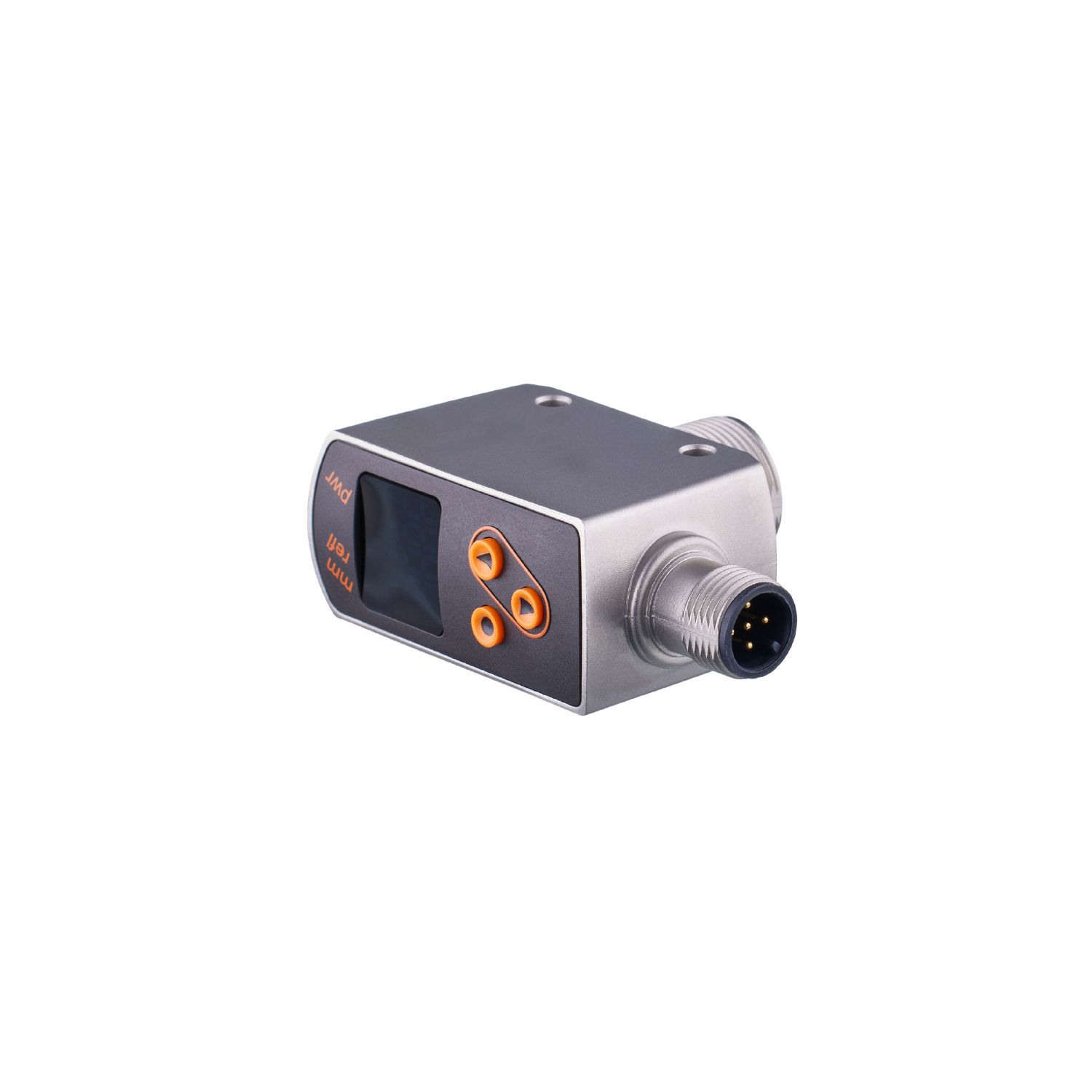

Displays / operating elements

Display
switching status2 x LED, yellow
 1 x alphanumeric display, 4-digit
Operating elements
3pushbutton

Accessories

Items supplied
lock nuts: 2

Remarks

Pack quantity1 pcs.

Electrical connection - plug

ConnectionConnector: 1 x M12; coding: A

Description

Colour-independent range Simultaneous output of distance value and reflectivity for increased process reliability
