Want to upgrade to the Cloud Connect Service later? No Problem! Purchase the a DSXi Activation Key any time and the DSX Standalone becomes a cloud-connected fully automated instrument maintenance station. There is no need to send anything back for activation – all upgrades are easily performed in the field. Call 800-949-7233 to purchase the Cloud Connect Activation Key.

Physical Specifications

• Warranty: Two-year warranty – DSX (Standalone) and DSX-L (Local Server)
• Guaranteed For Life™ Program** – DSXi (Cloud-connected)

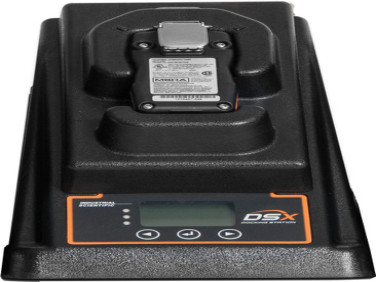

• Instruments supported: Tango TX1
• Dimensions: Tango TX1: H: 22.7cm (8.92"); W: 16.9cm (6.65"); D: 27.3cm (10.75")
• Gas inlets: 3-Port Version: One ”fresh” air port, two calibration gas ports
• Pump flow rate: 1.2 SCFH (550 mL / min)
• Communication: 10 / 100 Ethernet support, RJ-45 Category 5 Connection
• Display: 128 x 64 Dot Matrix LCD – Multilingual modes English, Spanish, French, German and Portuguese***

PERFORMANCE Specifications

• Operating temperature range: 0 ºC to +50 ºC /32 ºF to 122 ºF
• Operating humidity range: 0% to 80% relative humidity (RH) up to 30ºC (86ºF), decreasing linearly to 50% RH at 50ºC (122ºF)
• External power supply ratings: Supply voltage: 100-240 VAC/12 VDC,Frequency range: 50-60 Hz, Current rating: 5A
