DONT FORGET Your Calibration Gas, & your iGas Regulator/s!

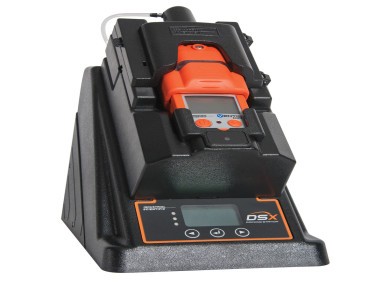

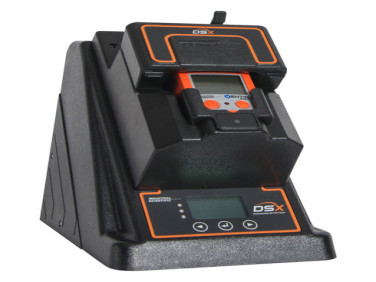

The DSX in local server mode provides the option to automatically store data from all docking stations behind a corporate network firewall, addressing network and data storage restrictions or preferences.

• Bump test and calibration schedules can be tracked and set to be performed automatically, ensuring that instruments are ready for use prior to the start of a shift.
• Automatic instrument wake-up and battery charging.
• Company and application-specific instrument settings are easily set up from within the company network.
• Configure reports to provide the data you want when you want it.
• Calibration gas status indicators provide a warning to order replacement gas before a cylinder is empty.

Physical Specifications

• Warranty: Two-year warranty for DSX-L (Local Server)
• Instruments supported: Ventis Series (Diffusion or Pumped Versions)
• Dimensions: Ventis MX4, Ventis LS: H: 24.9cm (9.83"); W: 16.9cm (6.65"); D: 27.3cm (10.75")
• Gas inlets: 6-Port Version: One ”fresh” airport, five calibration gas ports
• Pump flow rate: 1.2 SCFH (550 mL/min)
• Communication: 10 / 100 Ethernet support, RJ-45 Category 5 Connection
• Operating temperature range: 0 ºC to +50 ºC /32 ºF to 122 ºF
• Operating humidity range: 0% to 80% relative humidity (RH) up to 30ºC (86ºF), decreasing linearly to 50% RH at 50ºC (122ºF)
• External power supply ratings: Supply voltage: 100-240 VAC/12 VDC, Freq. range: 50-60 Hz, Current rating: 5A
