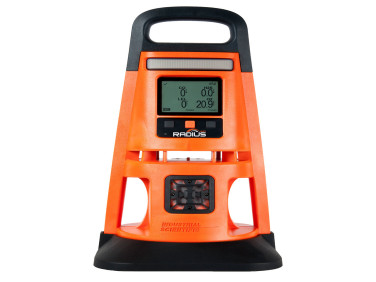

Industrial Scientific Radius BZ1 Area Monitor
-
NG # 006556-HW-ISCIENTIFIC-056
Manufactured by:
When it comes to choosing equipment to protect your worksite from hazardous gases, rely on the Radius™ BZ1 Area Monitor. No other area monitor protects your workers longer in the field with less setup, user training, and time in the shop.
Specification
- Detect up to seven gases using 15 sensor options including PID
- Longest running area monitor with a typical run time of 7 days (168 hours)
- Intrinsic safety external power supply can extend battery run time to over 1 month
- Ultra-bright blue and red lights and attention-grabbing alarms with distinctive tones
- Audible alarms sound at 108 dB at 1 m to cut through high-noise environments
- Largest display of any area monitor on the market
- Intuitive text-based navigation and configuration
- Customizable alarm action messages such as “EVACUATE” or “VENTILATE”
- Pre-configured LENS™ Wireless networks require no setup or infrastructure
- All-weather sensor deployment and 360-degree gas path for more accurate detection
- DualSense® Technology increases worker safety by using two sensors to detect the same gas
- iNet® and DSX™ Docking Station ready
Specifications:
INSTRUMENT WARRANTY: Two-year warranty, including sensors and battery
KEYPAD: Three buttons
DATA LOG: At least 3 months at 10-second intervals
EVENT LOGGING: 60 alarm events
INGRESS PROTECTION: IP66
CASE MATERIAL: Impact-resistant polycarbonate alloys
DIMENSIONS: 29 x 29 x 55 cm (11.5 x 11.5 x 21.5 in)
WEIGHT: 7.5 kg (16.5 lb)
TEMPERATURE RANGE: -20 °C to 55 °C (-4 °F to 131 °F)
HUMIDITY RANGE: 15%-95% non-condensing (continuous)
DISPLAY/READOUT: 11.2 cm (4.4 in) monochrome backlit graphical liquid crystal display (LCD)
POWER SOURCE/RUN TIME:
Rechargeable nickel-metal hydride (NiMH) battery pack
7 days (168 hours) typical @ 20 ºC, without pump, with wireless
3.5 days (84 hours) typical @ 20 ºC, with pump, with wireless
30 days (720 hours) typical @ 20 ºC, electrochemical sensors only, without pump, with wireless ≤8 hour recharge time
CERTIFICATIONS:
- UL: Class I, Division 1, Groups A, B, C, and D; T4 Class 1 Zone 0 AEx da ia IIC T4 Ga1
- CSA: Class I, Division 1, Groups A, B, C, and D; T4 C22.2 No. 152 applies only to %LEL thermo-catalytic reading
- ATEX: Ex da ia IIC T4 Ga, Equipment Group and Category II 1G
- IECEx:Ex da ia IIC T4 Ga
Description
- Radius just works, no questions asked, so your teams can focus on what's important and be confident that their area monitors are ready for whatever comes their way.
- Deploy Whenever and Wherever: Whether setting up a perimeter, or monitoring leaks or confined spaces, the Radius BZ1 allows for flexible deployments to create buffers between workers and gas hazards.
- Get the Message Loud and Clear: Loud audible alarms and different colored strobes for gas and non-gas events ensure workers not only know when the instrument is alarming, but why.
- React With Confidence: Identify gases and alarms from a safe distance, and read critical safety messages such as "EVACUATE" or "VENTILATE," thanks to a display that is three times larger than its nearest competitors'.
