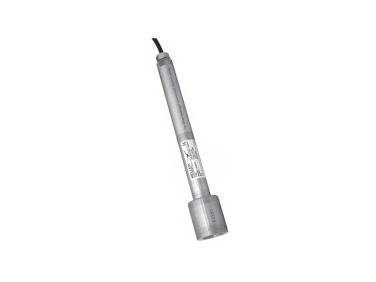

Keller DCX-38 VG Level Logger
-
NG # 006590-HW-KELLER-090
Manufactured by:
Autonomous, gold-plated ceramic diaphragm, ranges as low as 50 mbar and as high as 300 mbar.
Specification
- Pressure ranges:
- 0 to 50 mbar (0 to 0.5 mWC)
- 0 to 100 mbar (0 to 1 mWC)
- 0 to 300 mbar (0 to 3 mWC)
- RS 485 digital interface
- Gold-plated ceramic diaphragm
- 5m / 10m standard cable lengths (others upon request)
- Temp range: (-10 to 40°C)
- Designed for submersible deployment
- Latest microprocessor technology electronics
Description
The Keller DCX-38 VG Level Logger is an autonomous instrument for recording water level with a high resolution and full scale ranges as low as 0,5 mWC / 50 mbar. It features a rugged, gold-plated ceramic diaphragm for outstanding long-term stability and stainless steel housing with user serviceable battery for long service life.
The internal electronics of the DCX-38 VG employ the latest microprocessor technology, resulting in high accuracy and resolution for pressure measurements. The use of non-volatile memory for data storage ensures high data security.
The DCX-38 VG is based upon a relative pressure sensor and is designed for submersible deployment. Through the use of a vented cable, correction for atmospheric pressure variations is automatic. Therefore, the expense of deploying additional instruments for monitoring barometric pressure is avoided.
