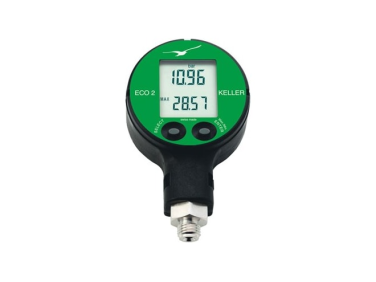

Keller ECO2 Digital Pressure Gauge
-
NG # 006576-HW-KELLER-076
Manufactured by:
Compact and economical digital pressure gauge providing medium accuracy at high resolution and repeatability.
Specification
- Piezoresistive pressure transducer
- Pressure ranges:
- -1 to 30 bar or equivalent, 60 bar overpressure
- 0 to 300 bar or equivalent, 400 bar overpressure
- Accuracy: ±0.5% FS
- Selectable pressure units: bar, mbar/hPa, kPa, MPa, PSI, kp/cm2
- IP65 rated enclosure
- Measures and displays pressure 2 times per second
- ZERO-function allows to set any pressure value as a zero reference
- Swivel fitting allows 360° rotation
- 7/16”-20 UNF pressure connection with G 1/4” male adapter
- 3 V (type CR 2430) battery provides up to 1000 hours of continuous operation
What's in the Box
- G 1/4” male adapter
- 3 V (type CR 24300) battery
Description
The Keller ECO2 digital pressure gauge is a compact and economical digital gauge that provides medium accuracy at high resolution and repeatability. The piezoresistive pressure transducer as the heart of the instrument has gone through extensive pressure- and temperature tests.
The ECO2 is available in two pressure ranges: -1 to 30 bar or 0 to 300 bar, each with a standard accuracy of ±0.5% FS. Pressure can be displayed as bar, mbar/hPa, kPa, MPa, PSI, kp/cm2. The pressure is measured twice per second and displayed. The top of the two-line display indicates the actual pressure while the bottom display shows the maximum or minimum pressure since the last reset.
