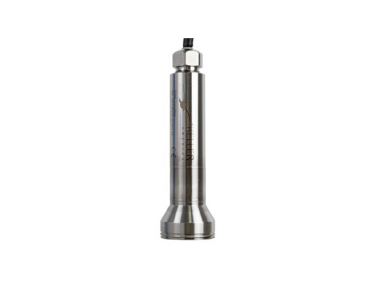

Keller LevelRat Submersible Level Transmitter
-
NG # 006566-HW-KELLER-066
Manufactured by:
The Keller LevelRat submersible level transmitter is specifically designed for use in environments that would clog a traditional level transmitter. The LevelRat is UL/cUL IS-Approved for use in hazardous locations. The unique Kynar diaphragm combines increased durability and Teflon-like non-stick properties to provide increased service time without maintenance. Additionally, the small profile minimizes accumulated solids, while simplifying installation.
Specification
- Accuracy includes non-linearity, hysteresis, & non-repeatability
- ±0.2% FS Static (25°C)
- ±0.5% FS Total Error Band (TEB)
- UL/cUL IS-approved
- 4-20mA output includes guaranteed lightning protection
- Lifetime warranty against voltage surges
- Ranges available from 0 to 5 up to 100ftWC
- 316L SS, Kynar, Polyamide & Fluorocarbon wetted materials
- Non-fouling Kynar diaphragm for puncture resistance
- -10 to 60ºC operating temperature
- IP68 environmental protection
- 2-year warranty covers defects in materials & workmanship
- Built in the USA (ARRA Section 1605 Compliant); CE certified
Description
Perfectly suited for pump control applications, the LevelRat is compatible with any standard 2-wire, 4-20mA current loop or 3-wire voltage systems. Additionally, models equipped with 4-20mA analog output include guaranteed lightning protection at no additional cost. This feature protects the transmitter from fast-rising transients and carries a lifetime guarantee against damage from electrical surge.

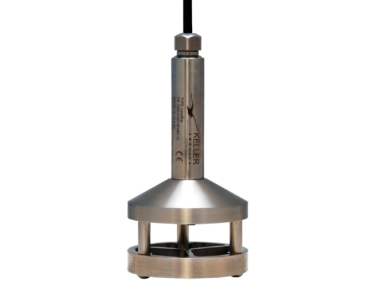

Optional 1/2 inch NPT male conduit fitting adapts the LevelRat to those applications where hard-mounting by rigid conduit is preferred.
