Series M8coolHB
-
NG # 006597-HW-KELLER-097
Manufactured by:

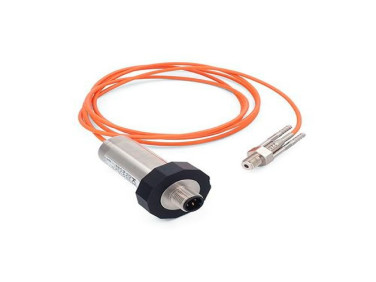

The ultra-fast M8coolHB pressure transmitter can process pressure changes with a bandwidth of 50 kHz. This is achieved by means of the continuous analog signal that is adjusted by a digital circuit in real time and is amplified to a standardized 0...10V signal. The miniature sensor head with a fine M8 thread can withstand temperatures of up to 1000 °C with suitable cooling, is overload-proof up to a magnitude of five times the measuring range, and is also resistant to vibrations.
Specification
Electrical Connection: M12 (5-pin), Binder 723 (5-pin)
Mechanical Connection: M8 x 0.75M
Sampling Frequency / Bandwidth: Minimum 50 kHz
Accuracy: ±0.1 %FS
Absolute Pressure Range: 0…3, 0…10, and 0…30 bar
Output Signal: 0…10 V
Operating Temperature:
- Sensor head: -50…+180 °C without cooling
- -50…+1000 °C with water (100 ml/min) or air-cooled
Description
The M8cool HB is an ultra-fast miniature pressure transmitter from KELLER designated to measure both static and dynamic pressure with the highest prevision. The M8 Cool features a M8 pressure connection and is designed to enable excellent media compatibility and support measurements carried out at temperatures up to 1000°C when equipped with appropriate cooling. This is possible as the sensor is insensitive to shock and vibrations and the sensor head can withstand up to 200°C with up to 1000°C cooling. The M8Cool is also provided with Teflon FEP cable with IP67 ferrule that are extremely fitted for use in test benches.
