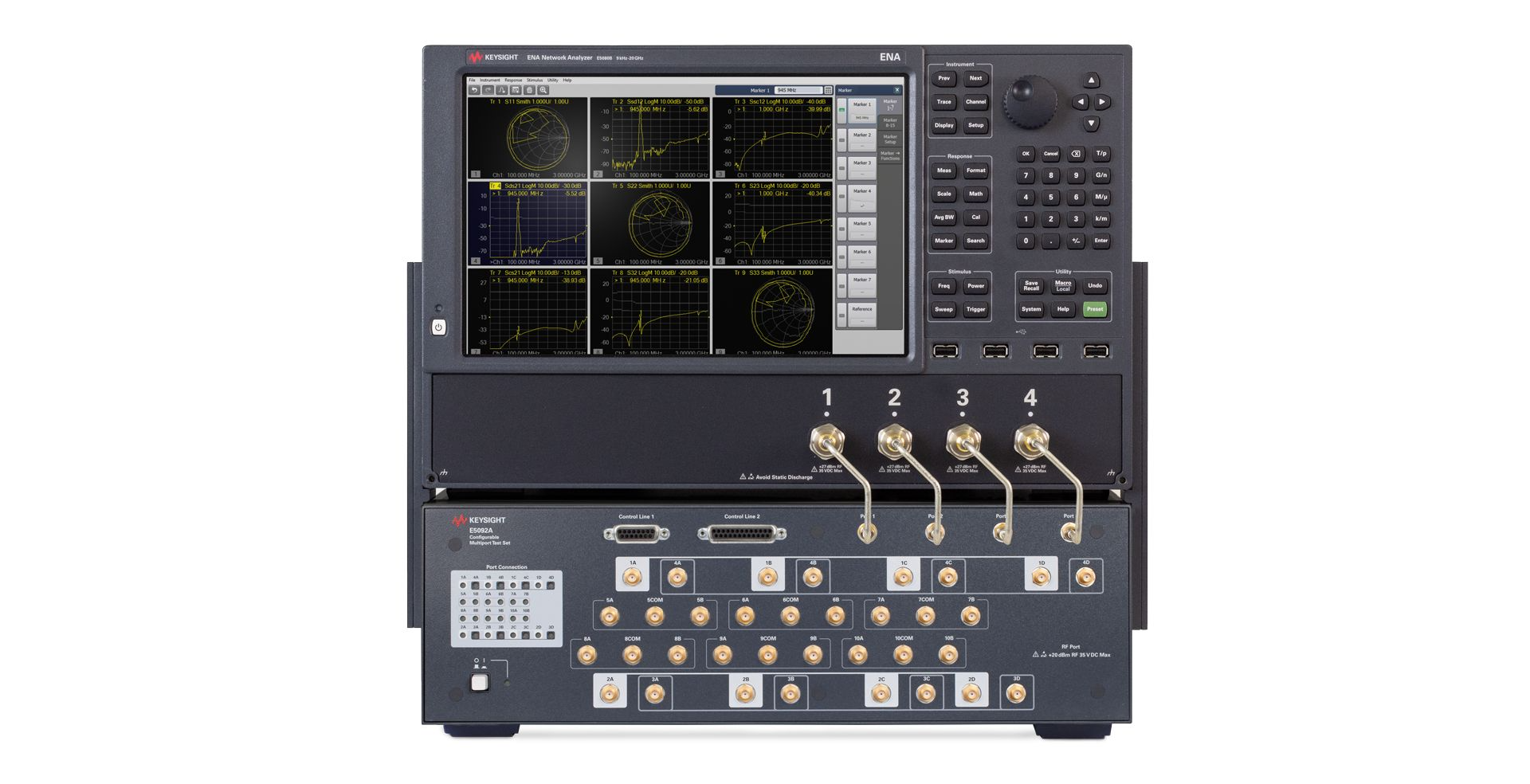

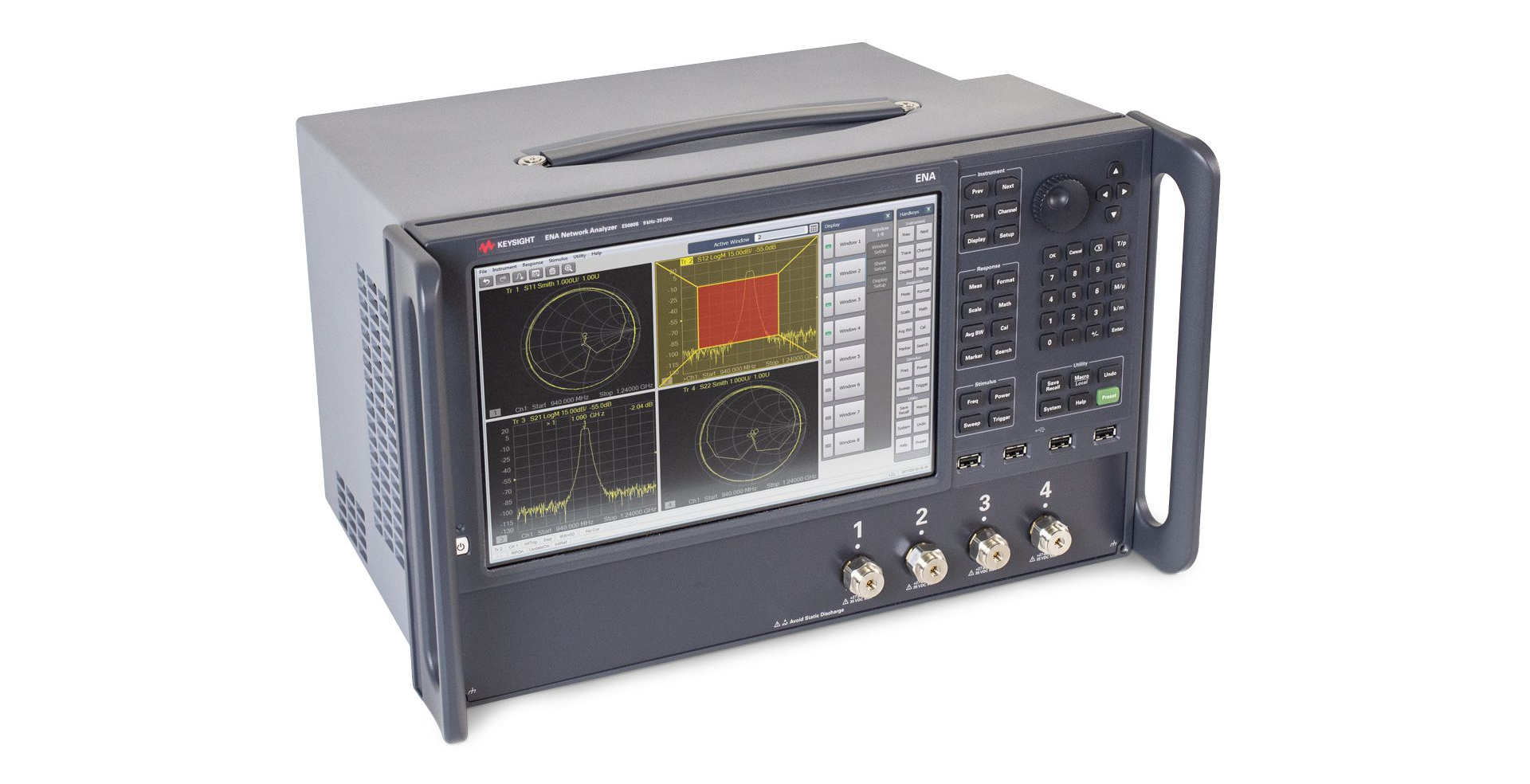

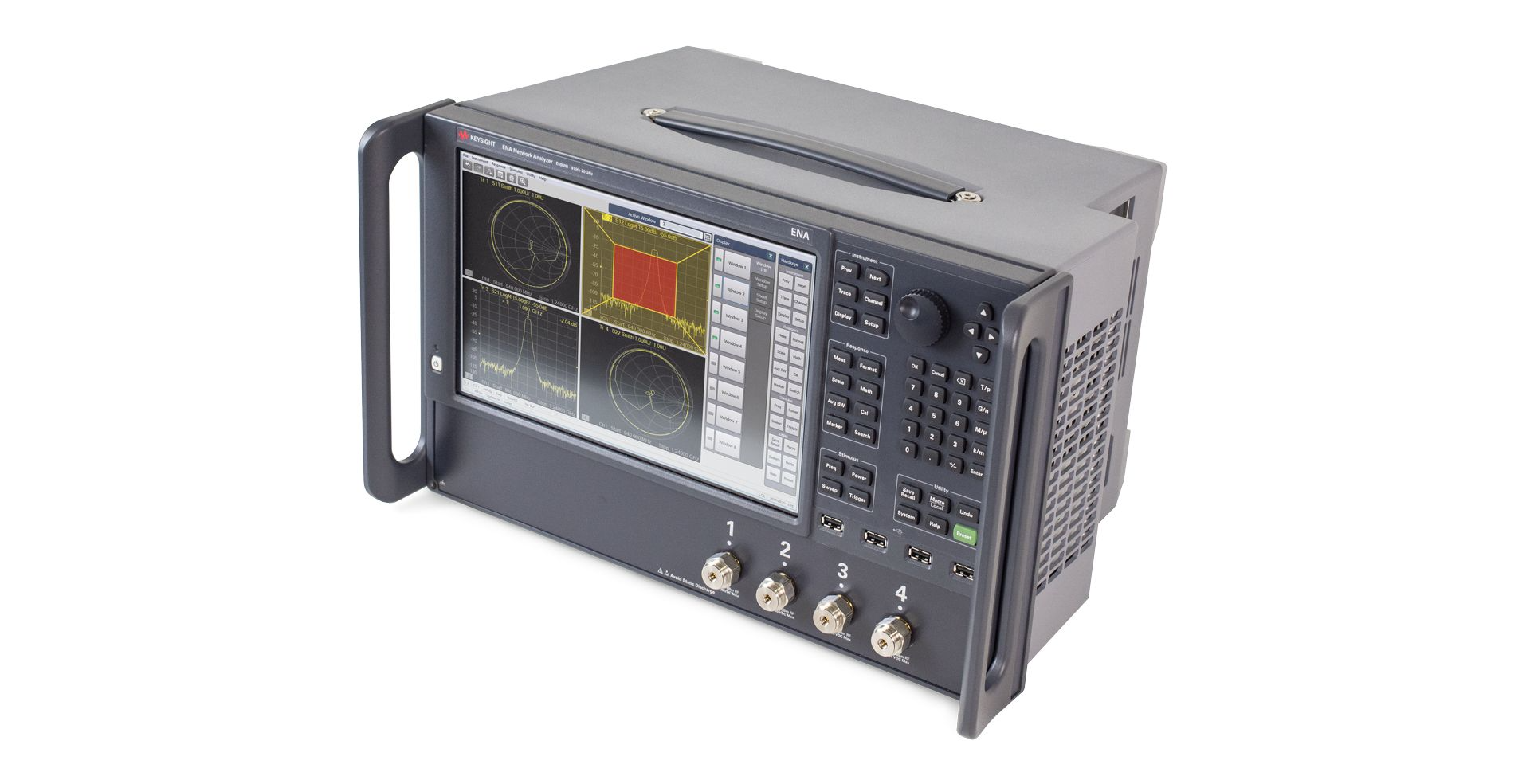

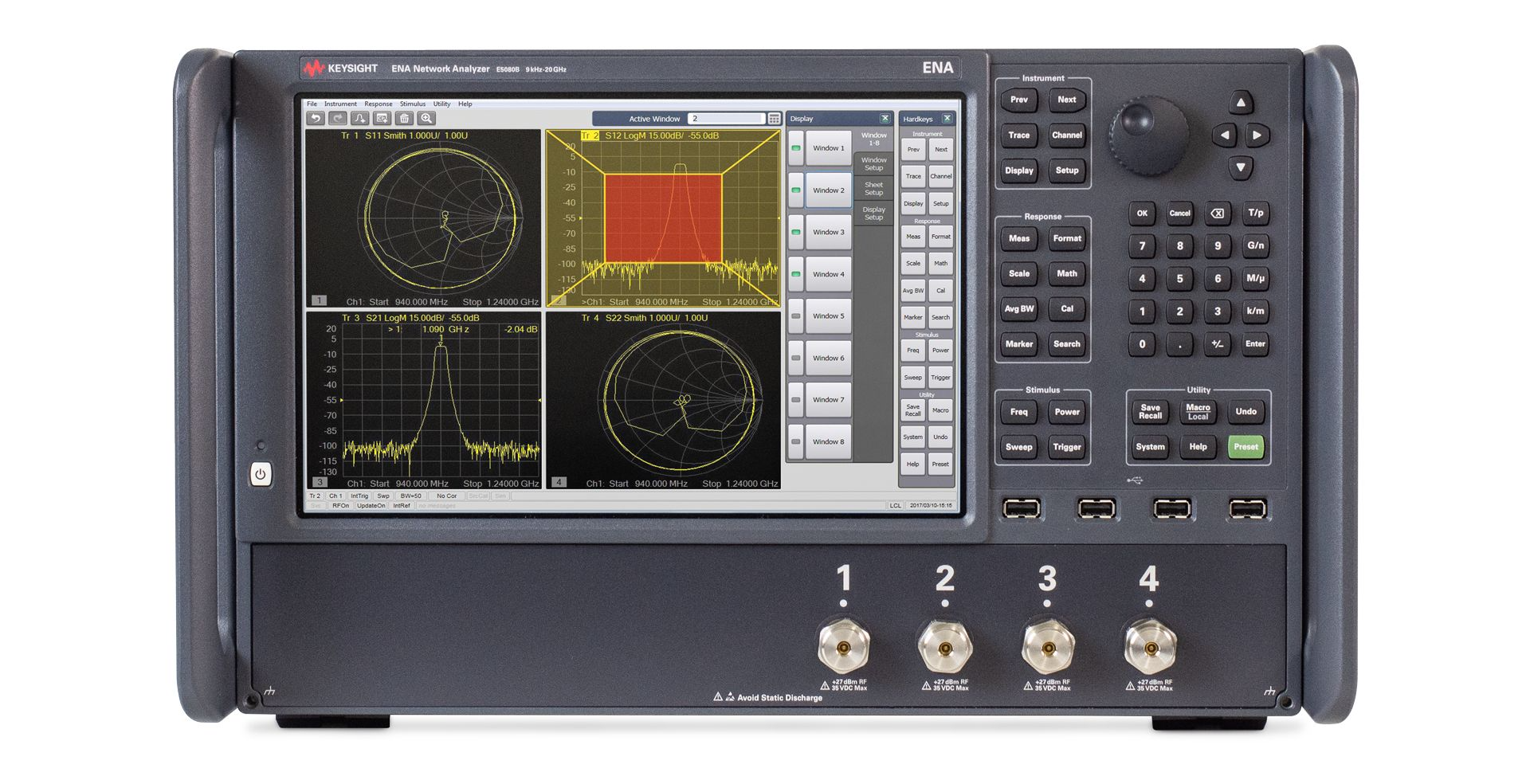

E5080B ENA Vector Network Analyzer
-
NG # 001727-HW-keysight-027
Manufactured by:
This
seller generally responds in under 48 hours
The most integrated and flexible ENA network analyzer
Specification
- choose either a 2- or 4-port option
- select a frequency range from 9 kHz to 4.5/6.5/9/14/20 GHz or 100 kHz to 26.5/32/44/53 GHz
- achieve complete device characterization with optional built-in DC sources, bias tees, pulse generators and pulse modulators
- capture device performance with a wide dynamic range of 140 dB
- test from R&D through production with confidence using the same UI and SCPI commands as high-end PNA network analyzers
- improve throughput using spectrum analysis, pulsed-RF measurements, vector mixer measurements, noise figure, and more software applications on a single instrument
Description
Highly integrated devices require an RF and microwave measurement solution offering complete characterization. The Keysight E5080B vector network analyzer (VNA) provides R&D performance up to 53 GHz and advanced test flexibility. Dynamic range, trace noise, and temperature stability guarantee reliability and repeatability.
