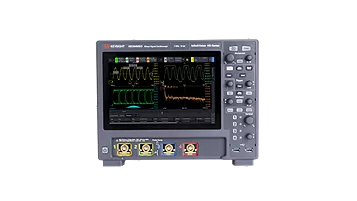

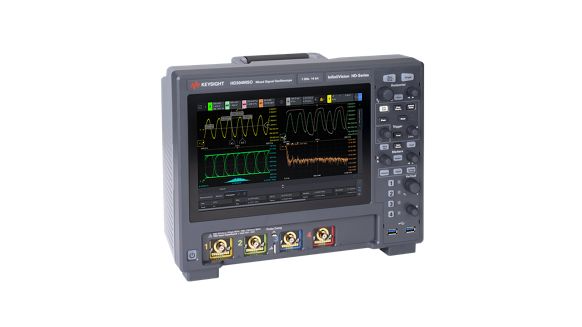

HD302MSO InfiniiVision Oscilloscope: 2 Analog Channels
-
NG # 001702-HW-keysight-002
Manufactured by:
This
seller generally responds in under 48 hours
Specification
- Experience bandwidths from 200 MHz to 1 GHz and two analog channels.
- Increase vertical resolution by four times with the 14-bit analog-to-digital converter (ADC) versus a 12-bit ADC.
- View and analyze your signals easily with the 10.1-inch capacitive touch screen.
- See smaller signals with a 50 µVRMS noise floor.
- Isolate signals in seconds with exclusive zone triggering.
- See more signal detail with the uncompromised 1.3 M waveform / second update rate.
- Benefit from all-new custom technology optimized for oscilloscope measurements.
- Capture more data with up to 100 Mpts memory.
- Experience a brand-new user interface with advanced capabilities, including split grids and bandwidth-limiting options.
- Expand your measurement capabilities with full upgradability; add bandwidth, system upgrades, and advanced application software at any time.
Description
The HD3 series boasts impressive resolution with high accuracy, deep memory, two analog channels, and all new custom technology ranging from 200 MHz to 1 GHz.
